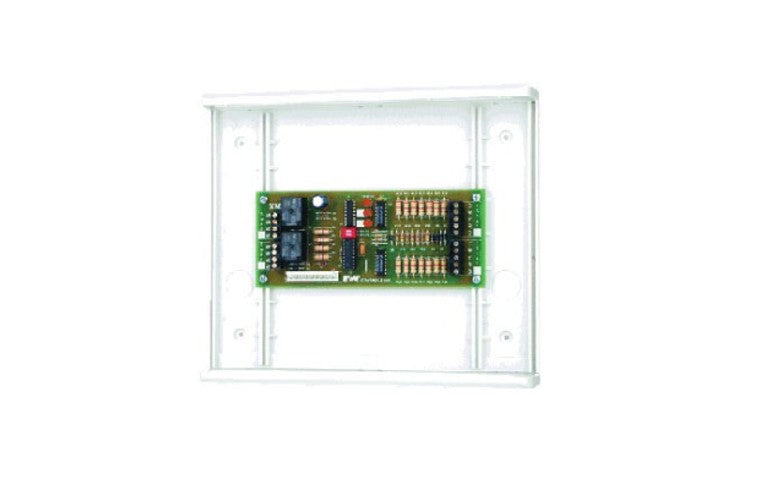

EWC Controls Ultra-Zone XM-2 Expansion Panel

Product Description

The EWC Controls Ultra-Zone XM-2 Expansion Panel is designed to expand the zoning capability of compatible EWC zoning control systems. Powered by 24 VAC, this panel adds support for additional zones and integrates seamlessly with BMPlus series control panels. It features LED indicators for easy diagnostics and system monitoring, making it suitable for residential HVAC zoning installations that require expanded zone control and efficient airflow management.

Product Highlights

• Supports up to 7 HVAC zones

• Designed for 1 cool and 2 heat stage systems

• 24 VAC powered HVAC zoning expansion module

• LED indicators for system status and diagnostics

• Compatible with EWC BMPlus series control panels

• Works with URD, ND, RSD, and SID damper models

• Compact enclosure for easy installation

Technical Specifications

• MPN: XM-2

• Product Line: Ultra-Zone

• Power Requirement: 24 VAC

• Cooling Stages: 1

• Heating Stages: 2

• Maximum Zones Supported: 7

• Height: 9.875 inches

• Width: 10 inches

• Depth: 1.7 inches

• Indicator Type: LED

• Application: HVAC zoning system expansion

• Compatibility: EWC URD, ND, RSD, SID dampers and BMPlus series control panel
