ZSI S2009S 1/4 Standard Series Beta Pipe Size

Product Description

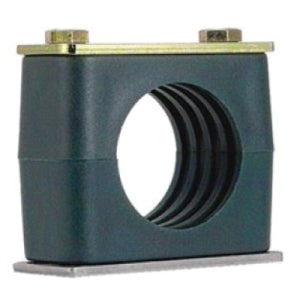

The ZSI S2009S is a beta hydraulic clamp designed for use with one-fourth inch pipe. It features a steel body with a polypropylene cushion for added protection. The clamp meets ASSE industry standards and is suitable for a variety of applications including standard hydraulics and pipe construction.

• Nominal size for one-fourth inch pipe
• Bolt size of one-fourth-20 by one and three-eighths inches
• Temperature rating of negative twenty-two to one hundred ninety-four degrees Fahrenheit

Product Highlights

This product is ideal for electrical cables and general duty piping applications. It helps to reduce vibrations and provides stability in hydraulic systems.

Product Information

Standard Information

• Manufacturer: ZSI-Foster
• Industry Standards: Meets ASSE

Technical Specifications

• Item Name: Beta Clamp
• Sub Brand: Beta Hydraulic Clamps
• Series/Model: Standard Series
• Nominal Size: 1/4 IN Pipe
• Bolt Size: 1/4-20 X 1-3/8 IN
• Material: Steel With Polypropylene Cushion
• Finish/Color: Green Cushion
• Length: 1.65 IN
• Width: 1.2 IN
• Height: 1.54 IN
• Temperature Rating: -22 To 194 DEG F
