Product Description

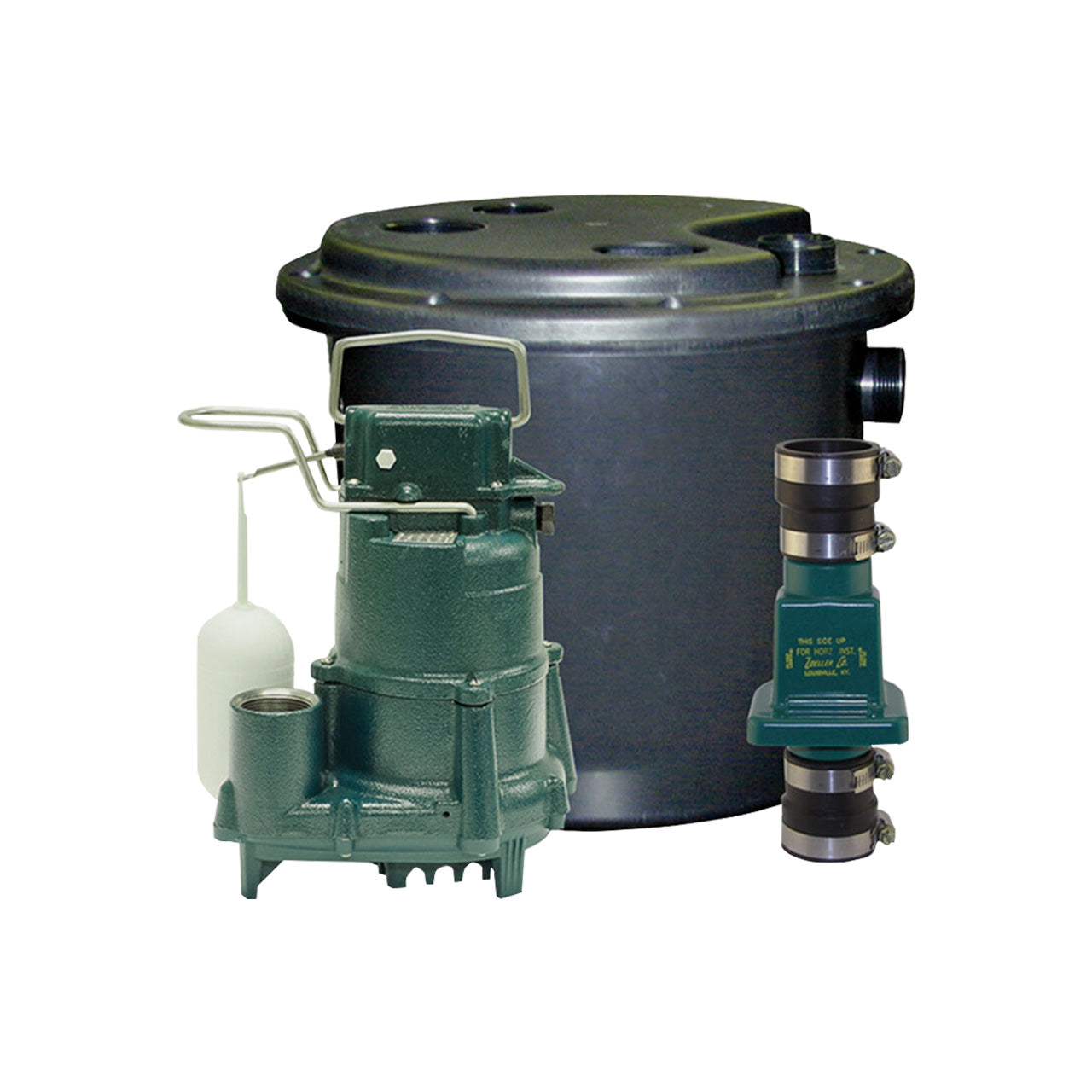

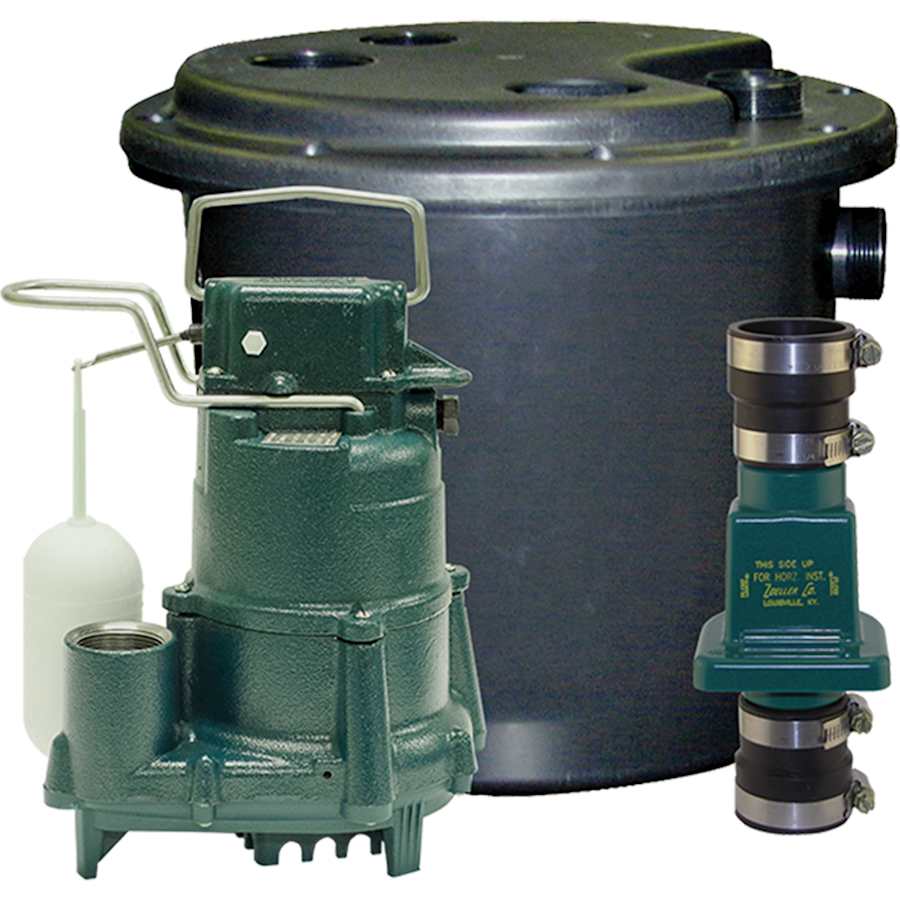

The Zoeller 131-0001 submersible pump drain with tank offers a flow rate of 72 GPM, 1/2 HP, 115V, 1 Phase, 60HZ. This system removes water from areas where gravity flow is not available. It is suitable for laundry tray pump, wet bar sink, lavatory, air conditioning condensate or dehumidifier water removal.
- Removes water from areas where gravity flow is not available
- Can be used for laundry tray pump, wet bar sink, lavatory, air conditioning condensate or dehumidifier water removal
- Can be used in conjunction with dishwasher and garbage disposal application
Product Highlights
The Zoeller 131-0001 drain pump system includes an automatic pump with tank cord seals and all hardware for easy assembly. The polypropylene basin and lid are corrosion resistant.
Product Information
Standard Information
-
Brand: ZOELLER
-
Manufacturer Part Number: 131-0001
-
Country of Origin: N/A
Technical Specifications
-
Brand: Zoeller
-
Product Type: Drain with Tank
-
Flow Rate: 72GPM
-
Power Rating: 1/2HP
-
Voltage: 115V
-
Phase: 1
-
Input Supply Rating: 60HZ
-
End Connection: 1-1/2IN
-
Material: Cast Iron
-
Motor Type: Permanent Split Capacitor
-
Solid Size: 1/2IN
-
Discharge Head: 5FT
-
Suction Size: 1-1/2IN
-
Application: Laundry Tray Pump, Wet Bar Sink, Lavatory, Air Conditioning Condensate or Dehumidifier Water Removal
-
Type: Drain Pump System
-
Hertz: 60 Hz
-
Series: Drain Pump
-
Amperage: 9.4 A
-

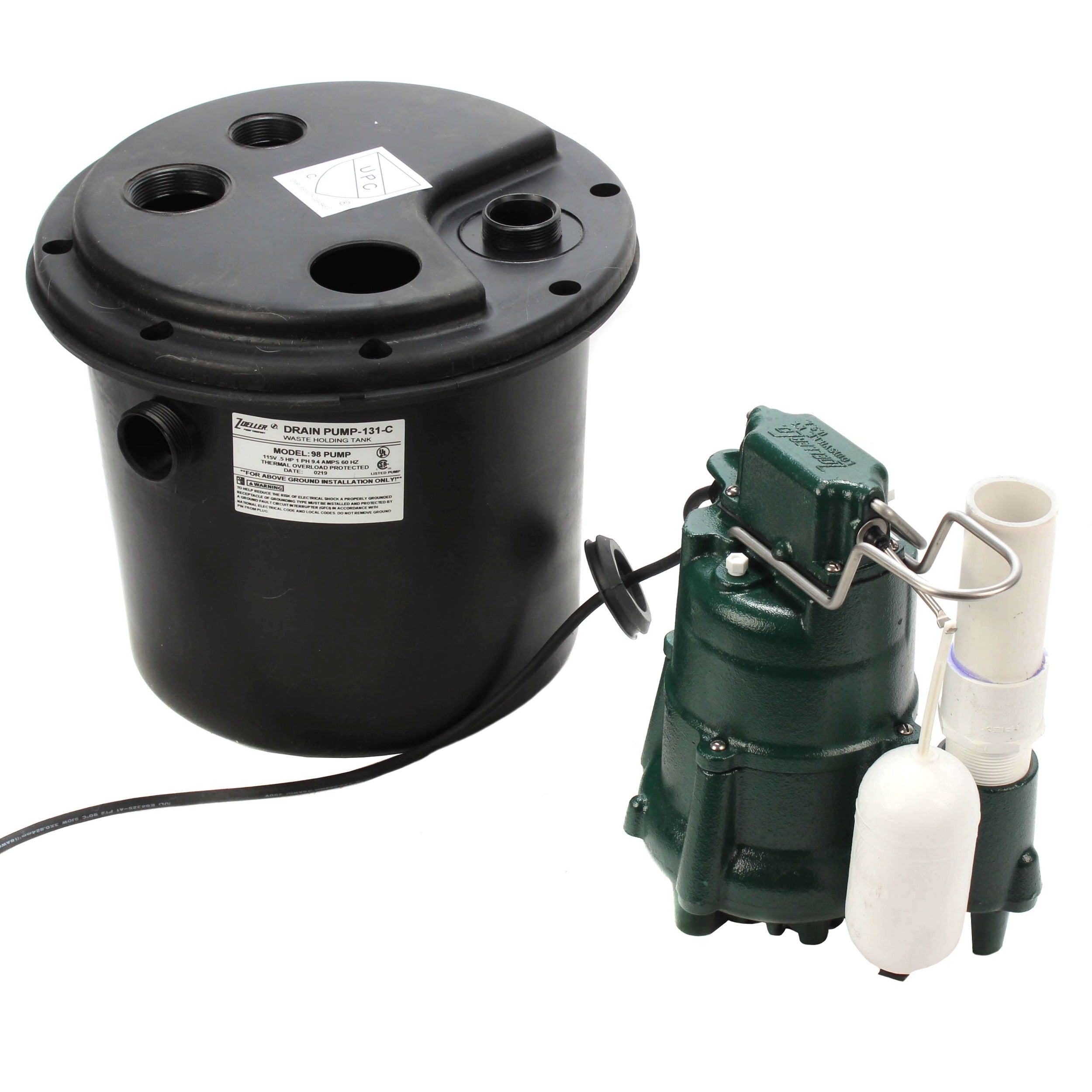

Includes: Zoeller Drain Pump (Model M98) With Tank Cord Seals And All Hardware For Easy Assembly, Polypropylene Basin And Lid, Internal Discharge Pipe To Lid, Full Flow Union Check Valve Model 30-0181
-
Horsepower: 1/2 HP
-
Submersible: Yes
-
Switch Type: Automatic
-
Float Switch: Yes
-
Max Head: 23 ft
-
Solids Handling: Yes
-
Connection Style: NPT
-
Gallons per Hour: 4320 gal/hr
-
Cord Length: 15 ft
-
Impeller Material: Engineered Plastic
-
Gallons per Minute: 72 gal/min
-
Shaft Seal Material: Carbon Ceramic
-
Rotations per Minute: 1725 rpm
-
Inlet Connection Type: NPT
-
Max Fluid Temperature: 130 °F
-
Max Diameter Solids: 1/2 in
-
Discharge Connection Type: NPT
-
Manufacturers Part Number: 131-0001
-
Certifications: CSA, SSMPA
-
Temperature of Liquid Pumped: 130
-
Discharge Connection Size: 1-1/2 in
-
Width: 14.5 in
-
Height: 12.5 in
-
Length: 14.5 in
-
Switch Off Height: 23 in
-
Warranty: 3
-
Rated Voltage: 115V AC
-
Switch Actuation: Diaphragm
-
Switch Electrical Connection: Integral
-
Pump Body Material: Cast Iron
-
Basin Material: Polypropylene
-
Basin Capacity: 5.0 gal
-
Basin Dia.: 12.2 in
-
Basin Height: 10.875 in
-
Basin Inlet Diameter: 1 1/2 in
-
Outlet Diameter: 1 1/2 in
-
Vent Size: 2 in
-
Flow Rate @ 5 Ft. of Head: 72.0 gpm
-
Flow Rate @ 10 Ft. of Head: 61.0 gpm
-
Flow Rate @ 15 Ft. of Head: 45.0 gpm
-
RPM: 1725
-
Flow at 5 FT Head: 72 GPM
-
Shutoff Head (ft.): 23'
-
Connection Size: 1-1/2" NPT
-
Maximum Head Height: 19.25'
-
Water Connection Type: NPT
-
Electrical Phases: 1
-
Manufacturer Warranty: 3 Years
