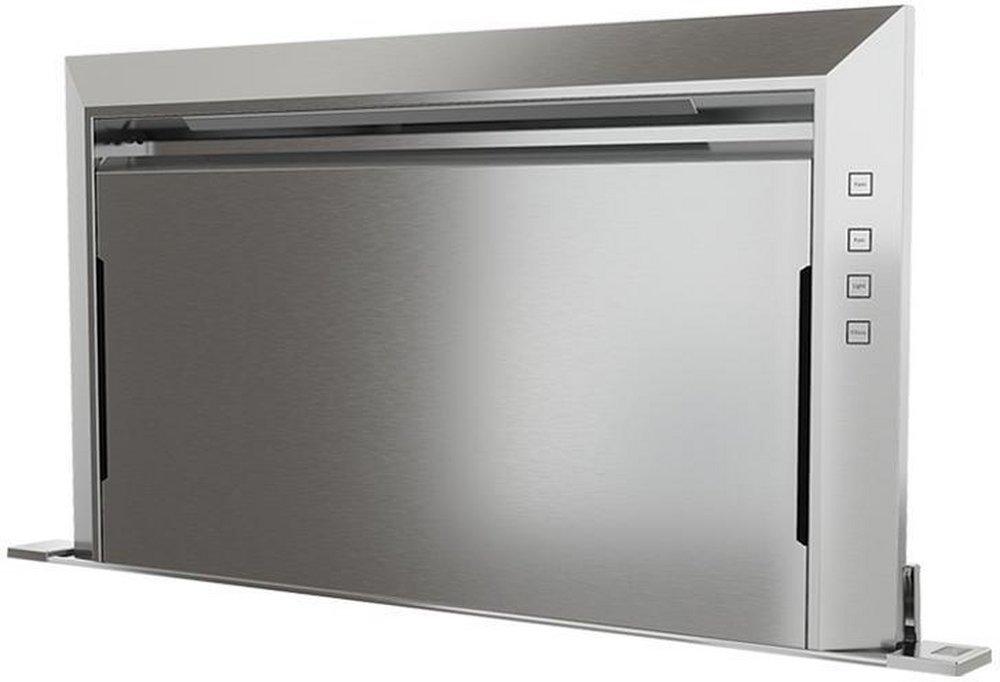

Zephyr DLI-E30ASX Designer 30 in. Downdraft Hood

Product Description

The Zephyr DLI-E30ASX Designer 30 in. Downdraft Hood in Stainless Steel features capacitive touch controls and dual capture zones. It also has Brite Strip LED lighting and a welded and polished body. An optional ductless recirculating kit, dual-level lighting, and multiple blower options are available.

• Capacitive Touch Controls
• Dual Capture Zones
• Brite Strip��� LED Lighting

Product Highlights

This Zephyr downdraft hood combines power, performance, and aesthetics for a luxury ventilation system. It is equipped with LED lighting, multiple blower options and a filter clean reminder.

Product Information

Standard Information

• Brand: Zephyr
• Manufacturer Part Number: DLI-E30ASX
• Country of Origin: Mexico

Technical Specifications

• Vent Type: Convertible
• UPC: 646328007323
• GTIN: 646328007323
• Country of Origin: Mexico
• Model Group: DLI-A
• Model Name: Lift Downdraft
• Collection: Designer Collection
• Blower Included: No
• Internal Blower 1 CFM: 600
• Internal Blower 1 Min. Sones: 1
• Internal Blower 1 Max Sones: 6
• In-Line Blower CFM: 1000
• External Blower CFM: 1000
• Minimum CFM: 200
• Installation Type: Downdraft
• For Outdoor Use: No
• Controls Type: Capacitive Touch
• Blower Speeds: 3
• Automatic Delay-Off: No
• Clean Air Function: No
• Lighting Type: LED
• Lights Quantity: 1
• Watts Per Bulb: 10
• Lights Levels: 2
• Grease Filter Type: Mesh
• Compatible Mesh or Baffle Filter Part Number: 50200061
• Duct Discharge: Horizontal
• Duct Size; Horizontal; IN: 2 x 20
• Duct Size; Vertical; IN: N/A
• Voltage: 120
• Maximum Amperage: 4.4
• ADA Compliant: Yes, with optional remote
• Compatible Appliances: DBI-600A, PBN-1000A, CBE-1000, ZRC-00LF, DDA-0002, DDS-0030, DDT-0030, 11030132, DDE-0001, 54190053, 54190054, AK00071, AK00072, AK00080, MUA006A, MUA008A, Z0F-C006
• Bluetooth Connected: No
• Wi-Fi Connected: No
• Remote Included: No
• Remote Optional: Yes
• Energy Star Certified: No
• Alexa & Google Home Compatible: No
• CEC Title 20 Compliant: Yes
• Primary Material: Stainless Steel
• Wattage: 360
• Certification: UL
• Nominal Width; IN: 30
• Net Width; IN: 30
• Net Depth; IN: 2.25
• Net Height; IN: 18
• Clean Filter Alert: Yes
• Duct Type: Horizontal
• Range Hood Size (Width): 30 in.
