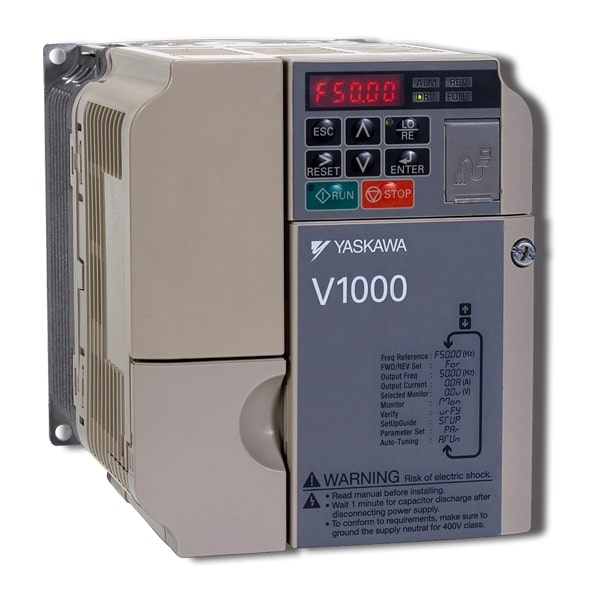

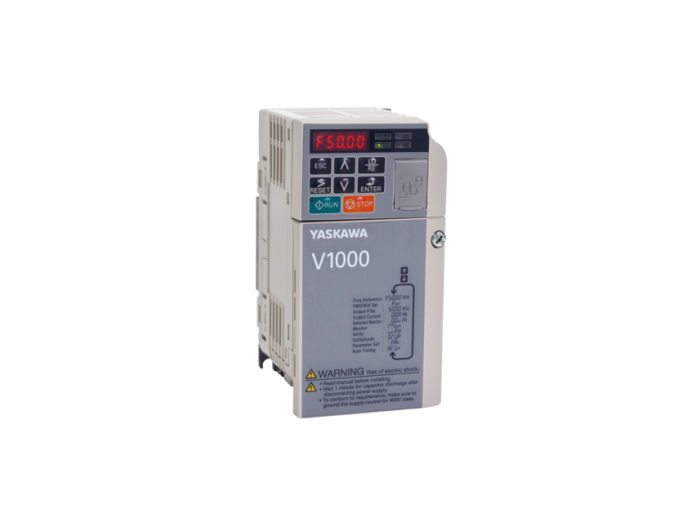

Yaskawa CIMR-VU2A0012FAA Drive, AC, 3HP, 240V

Product Description

The Yaskawa CIMR-VU2A0012FAA AC drive is a motor control solution designed for industrial settings. This drive operates at three horsepower with a voltage input of two hundred to two hundred forty volts. It delivers precise speed control and energy efficiency for applications such as conveyors and pumps.

• Input voltage range of two hundred to two hundred forty volts.
• Adjustable frequency from zero to four hundred hertz.
• Compatible with various motor types for optimal performance.

Product Highlights

This unit features a compact design for easy installation and advanced vector control algorithms for improved motor performance.

Product Information

Standard Information

• Brand: Yaskawa
• MPN: CIMR-VU2A0012FAA

Technical Specifications

• Phase: Three
• HP (Constant Torque Rating): 3 hp
• Amps (Constant Torque Rating): 11 A
• Height: 5.89 inches
• Width: 4.25 inches
• Depth: 5.41 inches
• Input Voltage: 200-240 V
• Output Voltage: 0-240 V
• Output Current: 12.0 A
• Warranty: 2 Year Manufacturer
