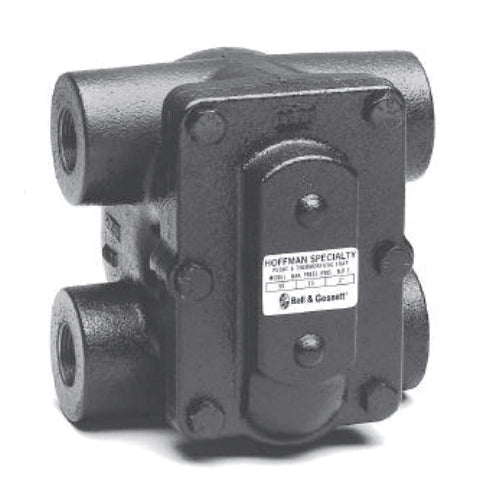

Bell & Gossett 404200 Hoffman Ft015H-3 F&T Steam Trap 15 PSI Stainless Steel

Product Description

The Bell & Gossett 404200 Hoffman Ft015H-3 F&T Steam Trap optimizes system efficiency in industrial applications. With a robust cast iron build and stainless steel internal components, this product ensures a durable and consistent performance. Its design is engineered to withstand water hammer and corrosion, making it an ideal choice for demanding environments.

• Seat differential pressure at 15 psi.
• Features 3/4 inch NPT connections
• Supports up to 1600 lb/hr flow rate at 15 psi seat differential pressure.

Product Highlights

This F&T Steam Trap features universal 4-port tapping's, offering flexibility in installation and system monitoring. Its below-condensate-level seat prevents steam leakage while the rugged thermostatic element avoids air binding.

Technical Specifications

• Material: Cast Iron
• Pressure Rating: 250 psig
• Temperature Rating: 406 degrees Fahrenheit
• Dimensions: 6-1/2 in Length x 5-1/2 in Width x 5-19/32 in Height
