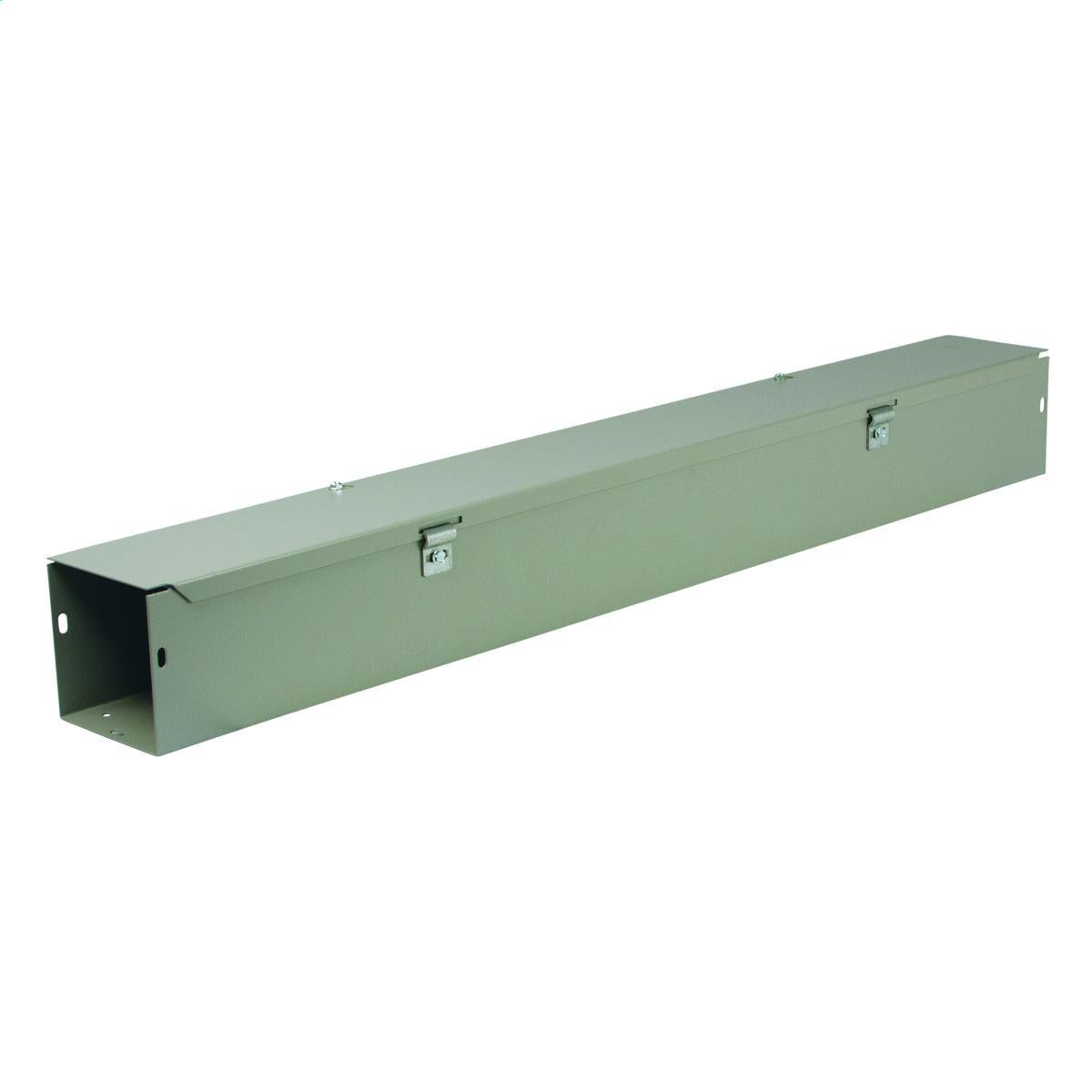

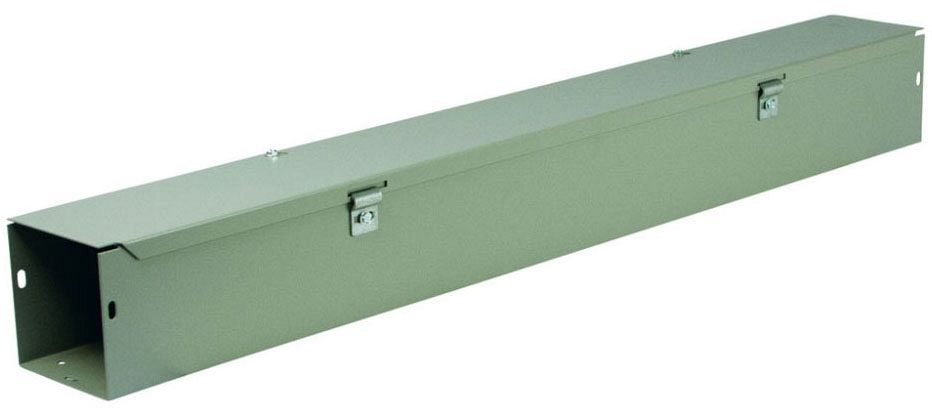

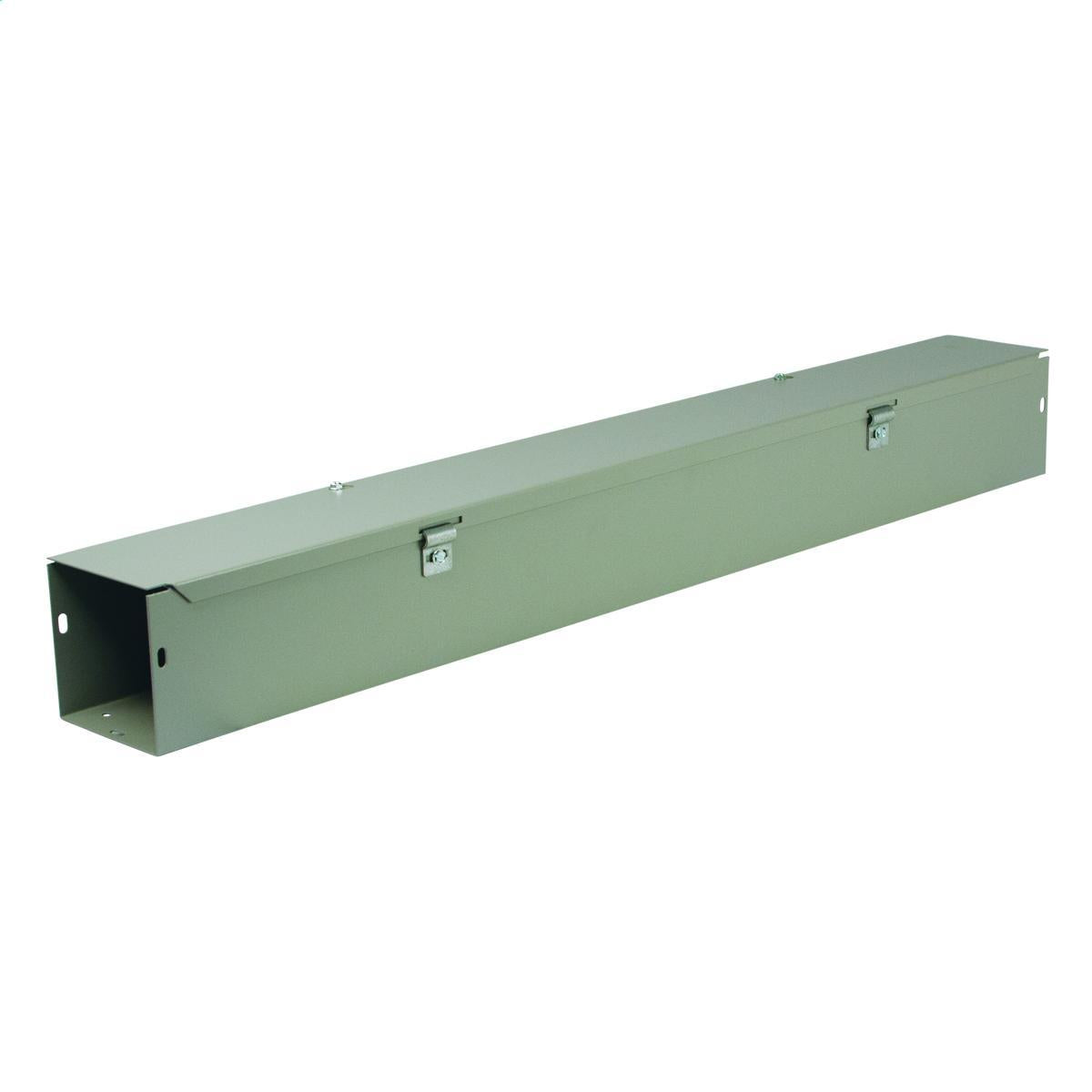

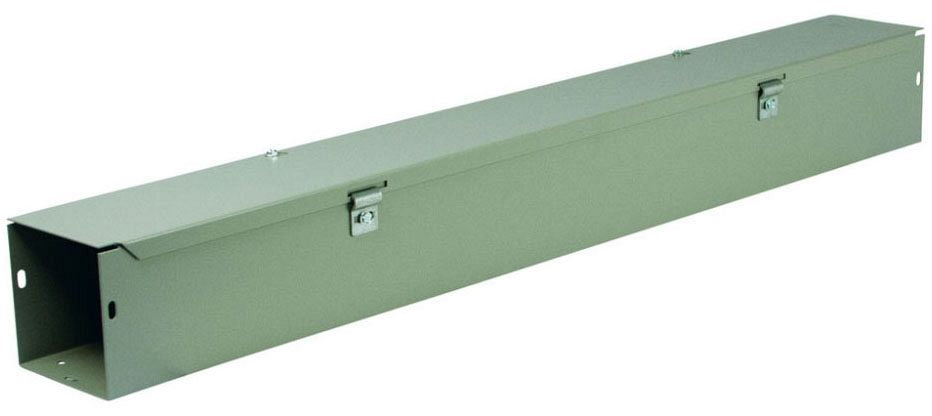

Wiegmann HS666NK Lay-In Wireway (6x6x72)

Product Description

The Wiegmann HS666NK is a lay-in wireway straight section constructed of 16 gauge carbon steel with an ANSI 61 polyester powder coat over a phosphatized surface. It measures 72 in long by 6 in wide by 6 in high and features an HS series combination hinge/screw cover for lay-in access and no knockouts. The unit is rated NEMA 1 and carries UL 870 and CSA approvals for indoor wire management.

• 16 gauge carbon steel construction with ANSI 61 polyester powder coat
• HS series combination hinge/screw cover for lay-in access; screws remain in place to open top
• NEMA 1 enclosure; UL 870 and CSA (cULus) approvals; no knockouts; 72 in _ 6 in _ 6 in

Product Highlights

72 in _ 6 in _ 6 in lay-in wireway; 16 ga steel; NEMA 1; hinged combination cover; no knockouts

Product Information

Standard Information

• Brand: WIEGMANN
• Manufacturer Part Number: HS666NK
• Country of Origin: United States

Technical Specifications

• Brand: Wiegmann
• Manufacturer Part Number: HS666NK
• Product Type: Lay-In Wireway (Straight Section)
• Series: HS Series
• Material: Carbon steel (16 gauge)
• Gauge: 16 ga
• Finish: ANSI 61 polyester powder coat over phosphatized surface
• NEMA Rating: NEMA 1
• Enclosure Type: NEMA 1 type enclosure
• Cover Type: Combination hinged/screw cover
• Cover Locking Style: Screw
• Knockouts: No
• Length: 72 in
• Width: 6 in
• Height: 6 in
• Dimensions: 72 in _ 6 in _ 6 in
• Approvals / Certifications: UL 870; CSA (cULus)
• UPC: 786725610457
• Country of Origin: United States
• Application: Protect electrical wiring in indoor environments where dirt, dust, oil and water are not significant; open-on-one-side for lay-in cable
