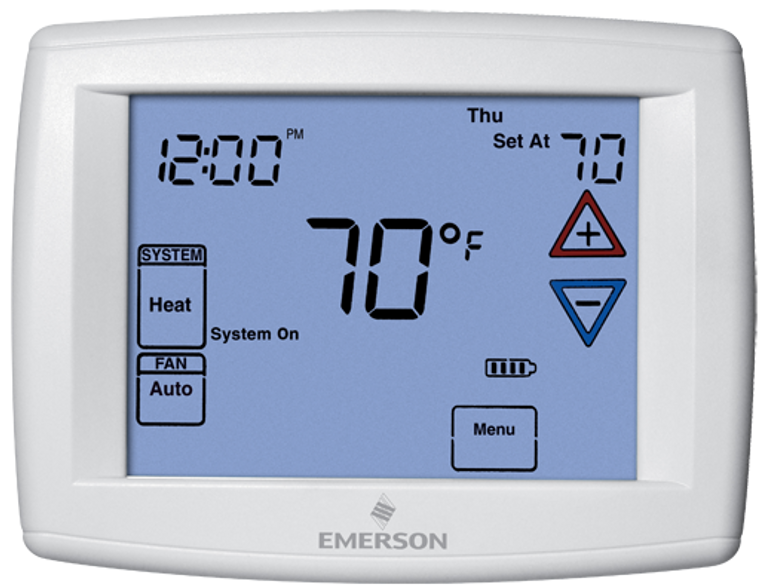

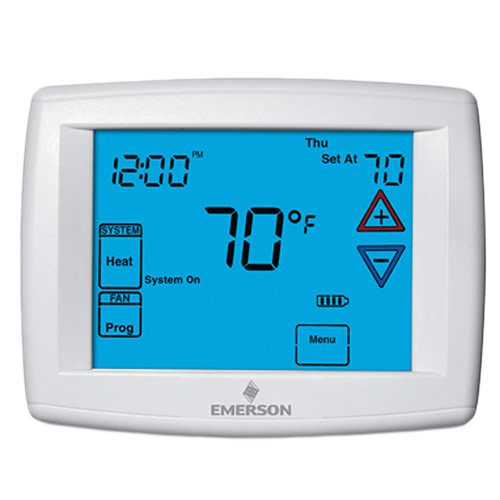

White-Rogers WR-1F95-1277 Programmable Thermostat

Product Description

The White-Rogers WR-1F95-1277 is a touchscreen programmable thermostat designed for HVAC systems. It supports up to four heating and two cooling stages for conventional systems and heat pumps. This unit features a large, backlit touchscreen display for easy viewing and adjustments.

• Compatible with 4H/2C systems and millivolt systems
• Offers 7-day or 5/1/1-day programmable scheduling
• Includes filter and humidifier pad change reminders

Product Highlights

The White-Rogers WR-1F95-1277 is effective for managing indoor temperatures with a focus on user-friendly functionalities.

Product Information

Standard Information

• Brand: White-Rogers
• MPN: WR-1F95-1277

Technical Specifications

• Electrical Rating Battery Power: mV to 30 VAC, NEC Class II, 50/60 Hz or DC
• Input-Hardwire: 20 to 30 VAC
• Terminal Load: 1.5 A per terminal, 2.5 A maximum all terminals combined
• Setpoint Range: 45 to 99°F (7 to 37°C)
• Differential (Single Stage): Heat 0.6°F; Cool 1.2°F
• Operating Ambient: 32 to +105°F (0 to +41°C)
• Dimensions: 4 9/16H x 5 13/16W x 1 3/16D
• Warranty: 5 years
