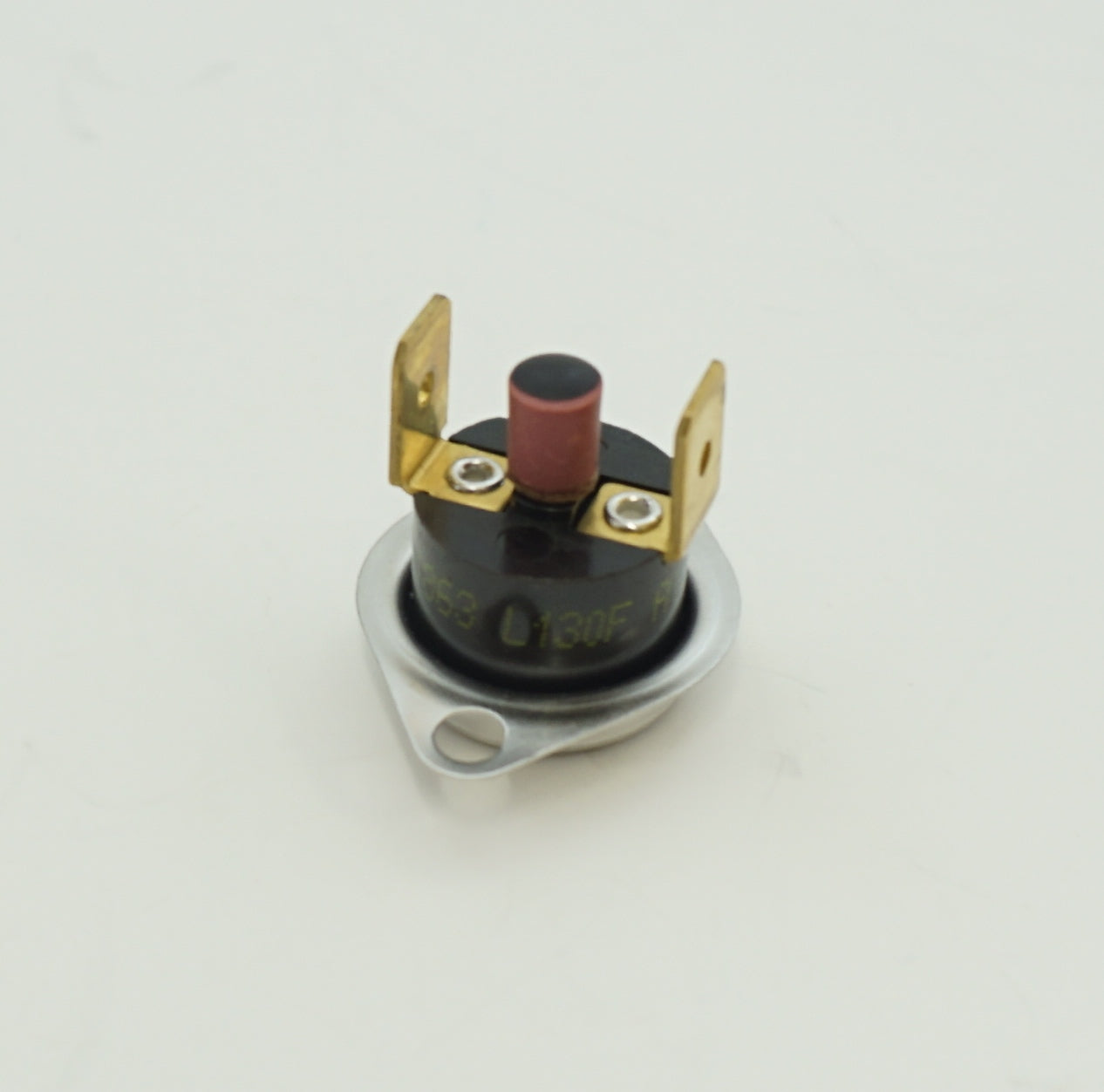

White-Rogers SRL130 Rollout Thermostat Switch

Product Description

The White-Rogers SRL130 is a rollout thermostat switch that is essential for gas-fired furnaces, unit heaters, and rooftop units. It is designed to enhance safety by preventing flame rollout through its reliable features. The SRL130 operates with a snap disc and requires a manual reset after activation. This model ensures dependable operation for heating systems.

• Manual reset functionality
• Fixed temperature operation
• Snap disc for precise control

Product Highlights

This thermostat switch is vital for maintaining safe operating conditions in heating equipment.

Product Information

Standard Information

• Brand: White-Rogers
• MPN: SRL130

Technical Specifications

• Type: Snap Disc, Manual Reset, Fixed Temperature
• Voltage Rating: 120/240 Volt AC
• Current Rating: 3 Amp (Full Load) / 12 Amp (Locked Rotor) at 120 Volt AC, 1.5 Amp (Full Load) / 6 Amp (Locked Rotor) at 240 Volt AC, 15 Amp at 120 Volt AC / 10 Amp at 240 Volt AC Resistive (Non-Inductive)
• Power Rating: 125 Volt Amp at 120/240 Volt AC (Pilot Duty)
• Switch Type: SPST, Open on Rise
• Temperature Rating: 130 Deg F (Cut-Out), Manual (Cut-In)
• Size: 1.18 Inch Length x 0.81 Inch Width x 0.83 Inch Height
• Snap Disc Size: 1/2 Inch
• Terminal Type: 1/4 Inch Quick-Connect
• Material: Stainless Steel (Mounting Bracket / Disc Cup)
• Application: Gas Fired Furnace, Unit Heater and Roof Top Unit
