White-Rodgers WR-50E47-843 Universal Hot Surface Ignition Module

Product Description

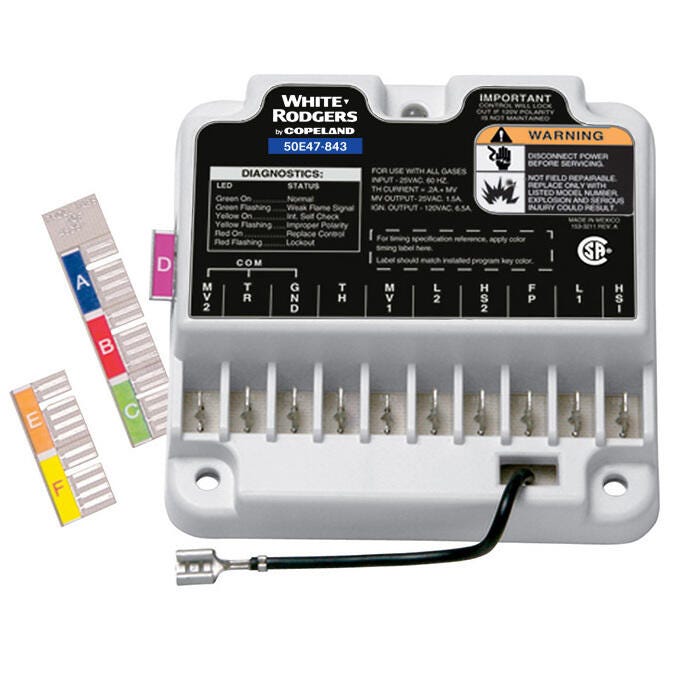

The White-Rodgers WR-50E47-843 is a universal hot surface ignition module. It is suitable for both natural and LP gas-fired forced-air furnaces and boilers. This module provides ignition, proof of ignition, and precise timing control. It features both direct and indirect flame sensing capabilities. A tri-color LED indicator is included for diagnostic purposes. Programmable keys allow customization of timing parameters. This module can be installed as a surface mount or in a four by four junction box. Double-sided foam back tape is provided for easy installation. It serves as a replacement for several brands including Carrier, Goodman, Lennox, Trane, York, and Nordyne.

• Designed for gas-fired furnaces and boilers.
• Offers ignition and proof of ignition functionalities.
• Includes tri-color LED for diagnostics.

Product Highlights

The White-Rodgers WR-50E47-843 is efficient for various heating systems, ensuring reliable ignition and operation.

Product Information

Standard Information

• Brand: White-Rodgers
• Model Number: WR-50E47-843

Technical Specifications

• Electrical Rating (Line Voltage Circuit): 120 Vac, 50/60Hz
• Electrical Rating (Low Voltage Circuit): 24 Vac, 50/60Hz
• Ignition Type: HSI
• Ignitor Voltage: 120 Vac
• Ambient Operating Humidity: 5 to 93% RH
• Operating Temperature Range: -40 to 175 °F
• Mounting: Surface mount or 4 x 4 junction box
• Stages: Single Stage
