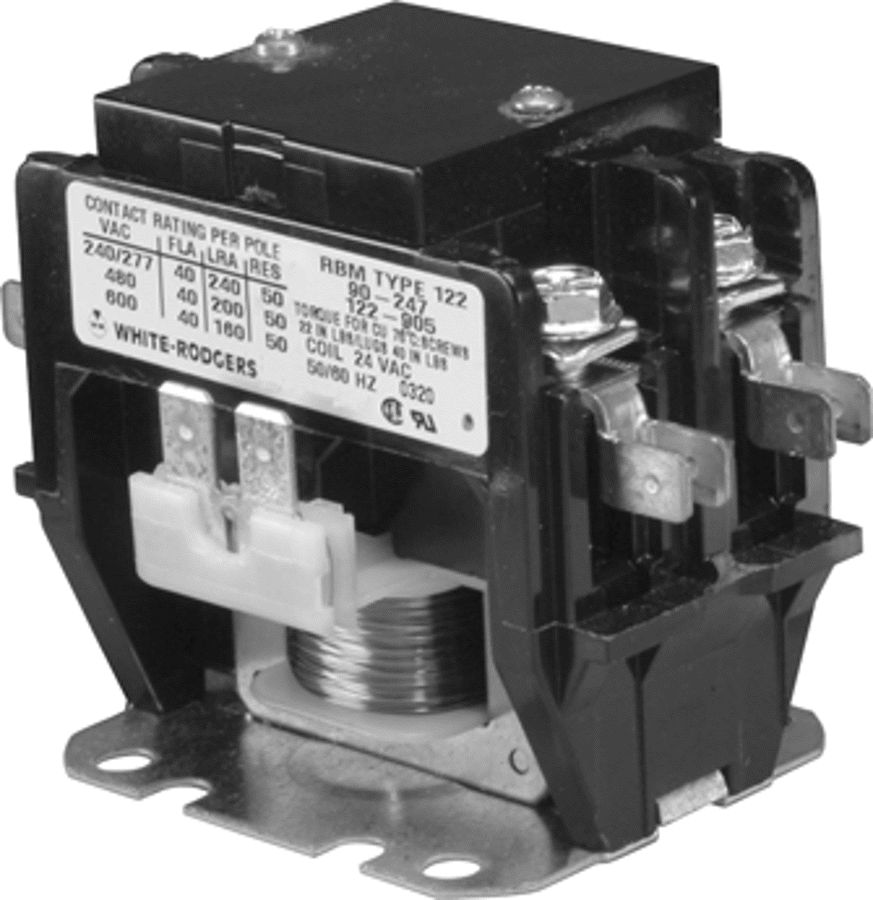

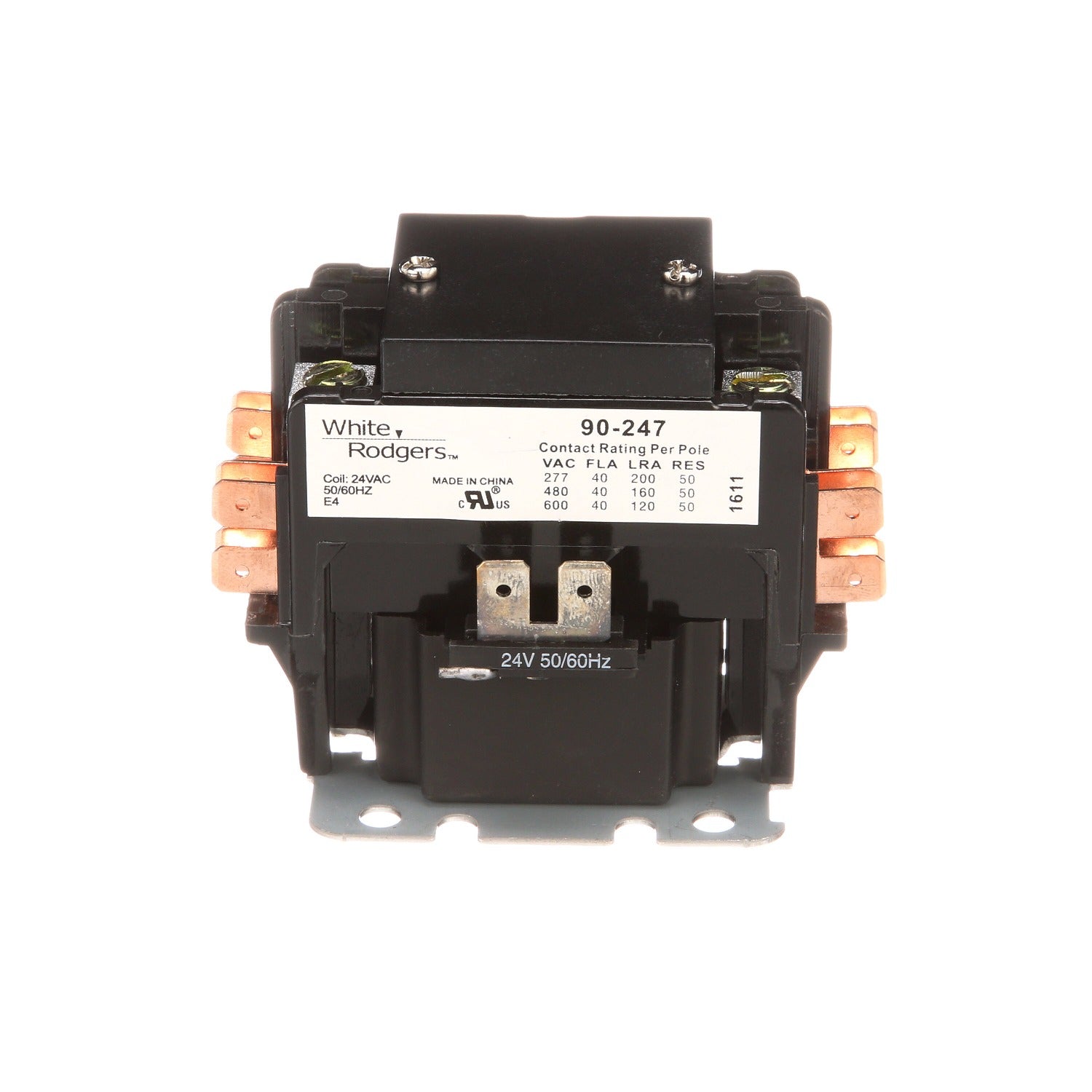

White Rodgers 90-247 Contactor 24V 40 Amp 2-Pole Definite Purpose

Product Description

The White Rodgers 90-247 is a reliable 2-pole contactor that operates at 24V and supports up to 40 amps. This product is ideal for use in residential HVAC and heating systems. It is designed for continuous duty applications, offering durability and wide compatibility with various systems.

• 2-pole configuration for effective control.
• Compatible with 24VAC systems.
• Designed for heating and air conditioning applications.

Product Highlights

The White Rodgers 90-247 features a low VA coil to enhance efficiency and prolong the equipment's operational life. It is easy to install with a universal mounting bracket that fits existing holes.

Product Information

Standard Information

• Brand: White Rodgers
• Part Number: 90-247

Technical Specifications

• Type: Contactor
• Voltage: 24V
• Poles: 2-Pole
• Amperage: 40A
• Dimensions: 3-1/4 inches x 2 inches x 2-5/8 inches
• Resistance: 11 Ohms DC
• Wiring: Pressure Connects, 1/4 Quick-Connect Terminals
• Applications: Heating, Air Conditioning
