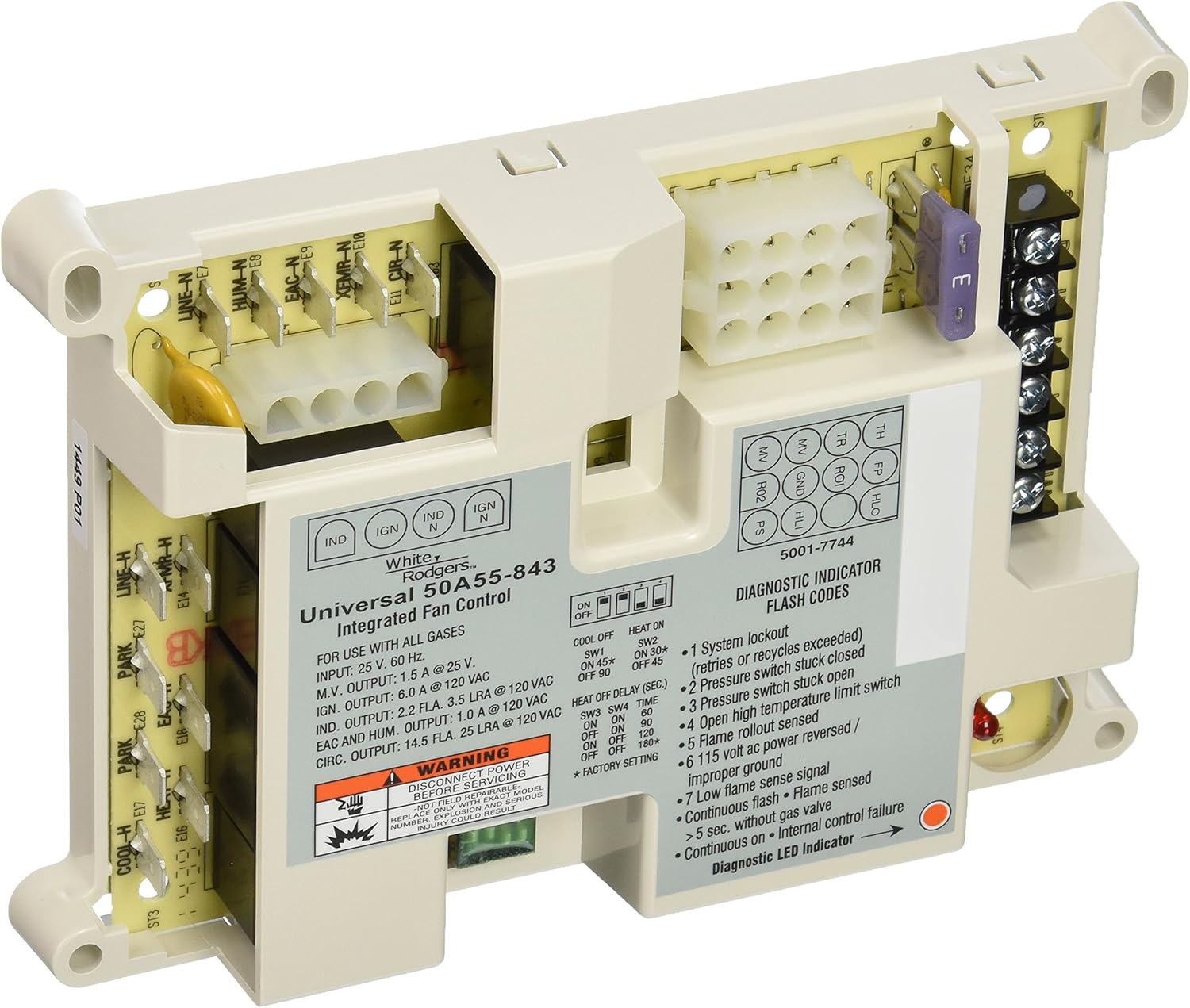

White-Rodgers 50A55-843 Universal Integrated Ignition Control Module 25 VAC

Product Description

The White-Rodgers 50A55-843 Universal Integrated Ignition Control Module employs a microprocessor to monitor, analyze, and control the gas burner, inducer, and fan. This module is suitable for various gas-fired forced air furnaces and replaces most of the White-Rodgers and OEM models.

• Microprocessor-based monitoring
• Includes diagnostic LED
• Adjustable blower relay

Product Highlights

This ignition control module comes with a microprocessor for optimal performance. It includes additional jumpers and harnesses for various applications and features terminals for a humidifier and electronic air cleaner.

Product Information

Standard Information

• Brand: White-Rodgers
• MPN: 50A55-843

Technical Specifications

• Type: Universal Integrated Ignition Control
• Voltage Rating: 25 VAC
• Amperage Rating: 0.45 A
• Power Rating: 25 VAC at 50/60 Hz
• Temperature Rating: -40 to 175 Deg F
• Humidity Rating: 5 to 93 Percent
• Ignition Source: Low Voltage
• Prepurge Time: 30 Seconds
• Flame Failure Response Time: 2 Seconds
• Valve Rating: 1.5 Amp at 25 VAC 50/60 Hz
• Application: Gas Fired Forced Air Furnace, Furnace Control Module, Carbide Igniter
• Approval: CSA (Canada and US)
