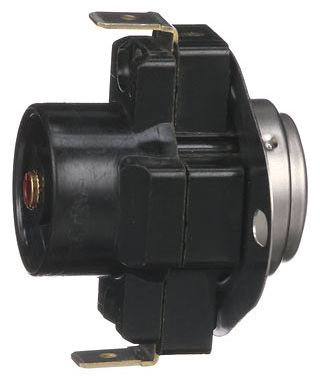

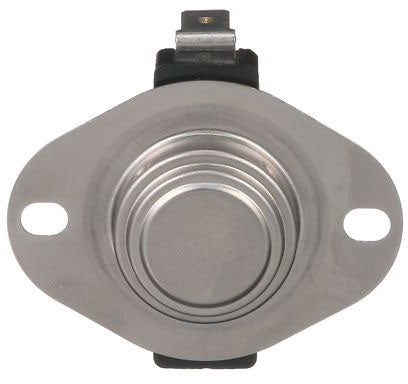

White Rodgers 3F05-2 Adjustable Snap Disc Fan Control 140-180°F

Product Description

The White Rodgers 3F05-2 is an adjustable snap disc thermostat designed for fan and limit control in HVAC applications. This device operates at a voltage rating of 120/240 VAC and features an adjustable temperature range of 140 to 180 degrees Fahrenheit. It is ideal for controlling the operation of heating equipment and various appliances, ensuring efficient performance.

• Power rating of 125 Volt Amp
• Current rating of 25 Amp at 120/240 Volt AC
• SPST switch type, close-on-rise action

Product Highlights

This thermostat replaces multiple fixed disc models, reducing inventory needs while covering a wide range of temperature applications. The automatic reset function and 1/4 inch quick connect terminals make it suitable for various installations.

Product Information

Standard Information

• Brand: White Rodgers
• Manufacturer Part Number: 3F05-2

Technical Specifications

• Voltage Rating: 120/240 Volt AC
• Temperature Differential: 20 degrees Fahrenheit
• Cut-in Temperature: 140 to 180 degrees Fahrenheit
• Current Rating: 25 Amp at 120/240 Volt AC
• Power Rating: 125 Volt Amp
• Switch Type: SPST, Close-On-Rise
