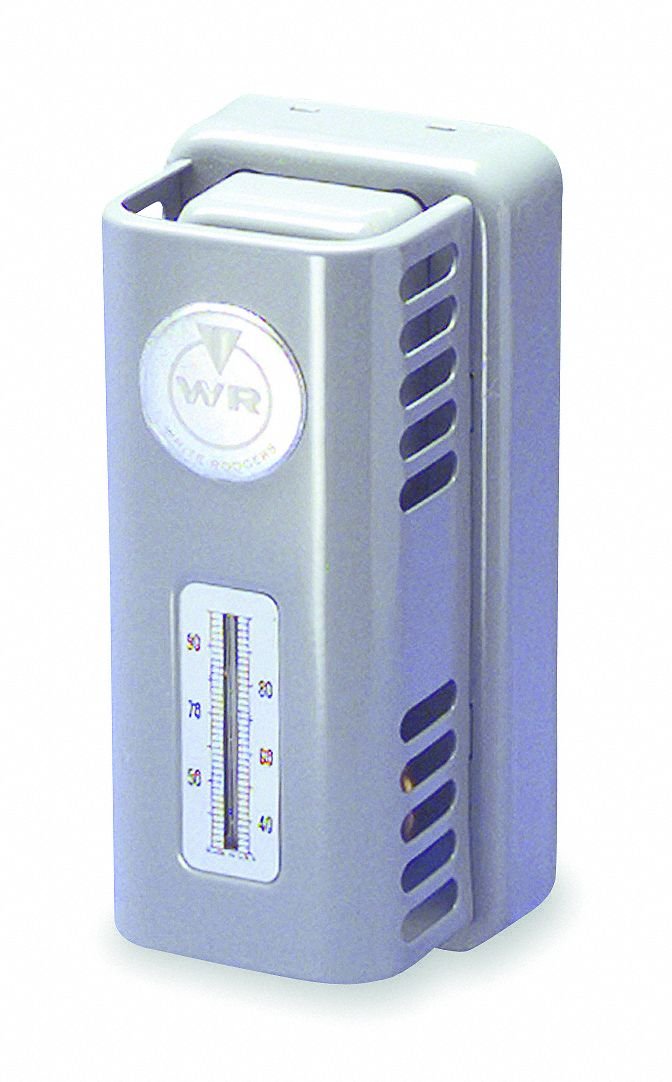

White-Rodgers 152-9 Line Voltage Heating Only SPST Thermostat 120/240VAC

Product Description

The White-Rodgers 152-9 is a robust line voltage thermostat designed for simple heating control. Optimized for both commercial and residential settings, it operates with SPST switch action and does not require programming, making it a user-friendly option for heating systems.

• Provides precise temperature control from 55 to 85 degrees Fahrenheit.
• Supports a maximum load of 14A at 120VAC and 7A at 240VAC.
• Easy vertical mounting on a wall.

Product Highlights

This non-programmable thermostat is built for reliability and straightforward operation. It features an open on rise switch action and has a fixed 2 degrees Fahrenheit differential that ensures reliable performance. The device is suitable for systems needing consistent heating without the need for constant adjustments.

Product Information

Technical Specifications

• Control Range: 55 to 85 degrees Fahrenheit
• Voltage: 120 to 240VAC
• Amps: 14A at 120VAC, 7A at 240VAC
• Switch Type: SPST
• Mounting Type: Vertical, wall mount
• Construction: Heavy gauge steel case
• Height: 4.5 inches
• Width: 4.5 inches
• Depth: 2.25 inches
