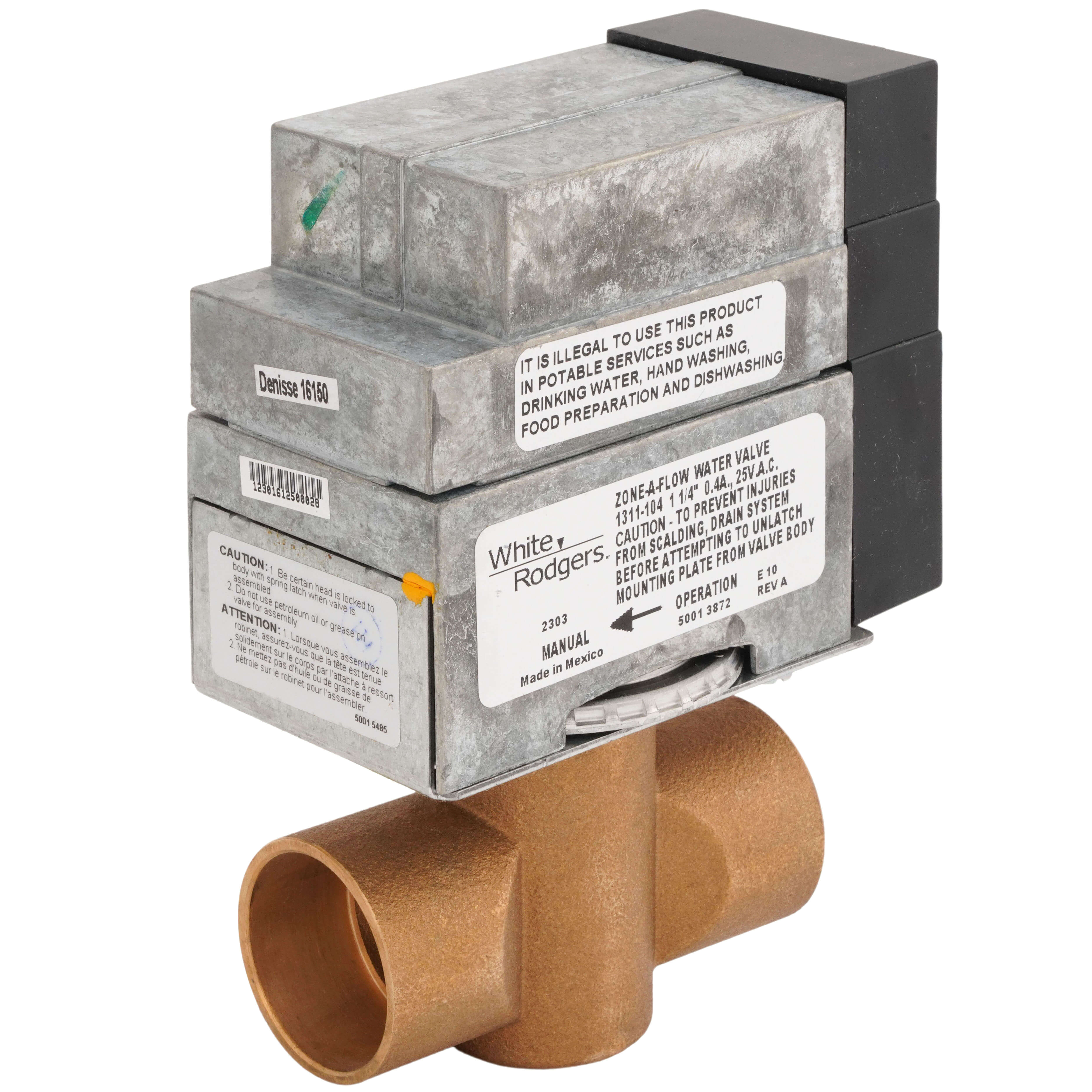

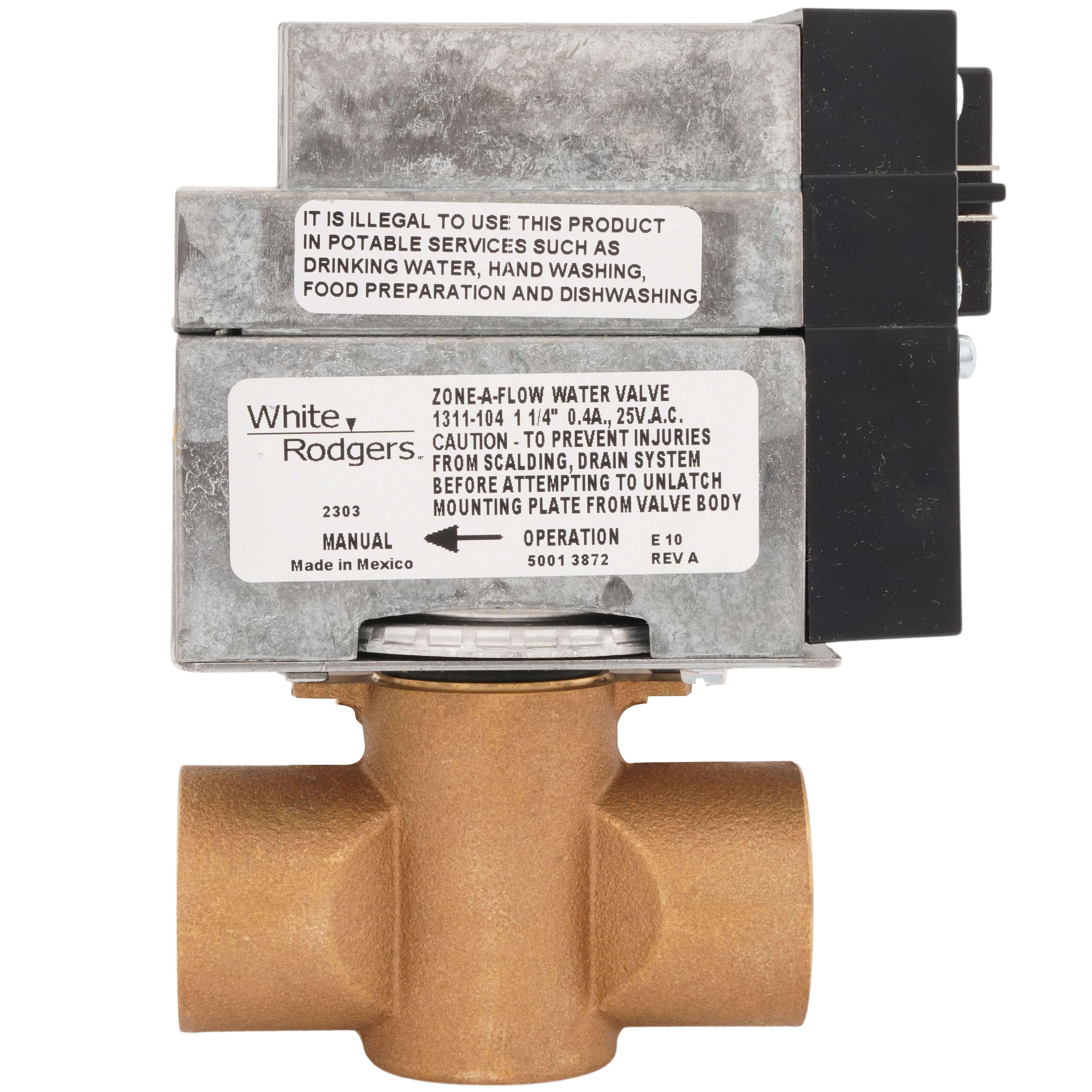

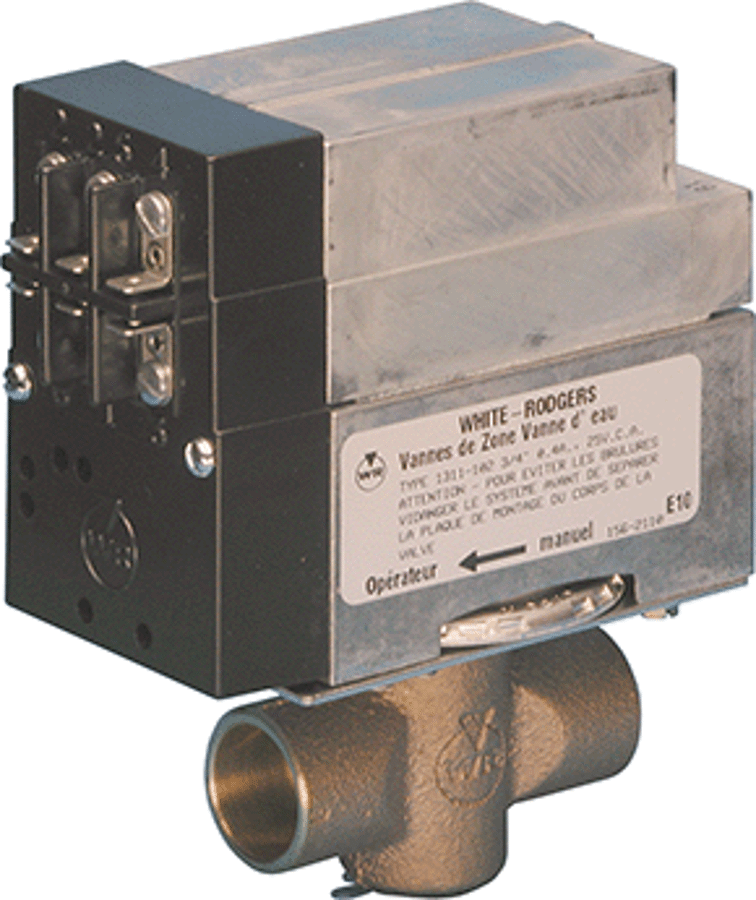

White Rodgers 1311-104 3 Wire Hydronic Zone Valve For 1-1/4 in.

Product Description

The White Rodgers 1311-104 is a 3-wire hydronic zone valve designed for one and one-fourth inch tubing. It is suitable for use in hydronic heating systems where efficient control of water flow is required. The valve can handle a maximum differential pressure of 15 PSI and operates at temperatures up to 240 degrees Fahrenheit. This product is powered by 24 volts and works at 60 Hertz with a maximum system pressure of 50 PSI.

• 3-wire connection for easy installation
• Durable design to withstand high temperatures
• Ideal for zoning applications in hydronic systems

Product Highlights

This valve is a reliable choice for controlling water flow in heating applications, providing essential feedback to HVAC systems.

Product Information

Standard Information

• Brand: White Rodgers
• Part Number: 1311-104

Technical Specifications

• Valve Type: 3-Wire Hydronic Zone Valve
• Pipe Size: 1-1/4 inches
• Maximum Differential Pressure: 15 PSI
• Maximum Temperature: 240 degrees Fahrenheit
• Voltage: 24 VAC
• Frequency: 60 Hz
• Maximum System Pressure: 50 PSI
• End Switch: Yes
