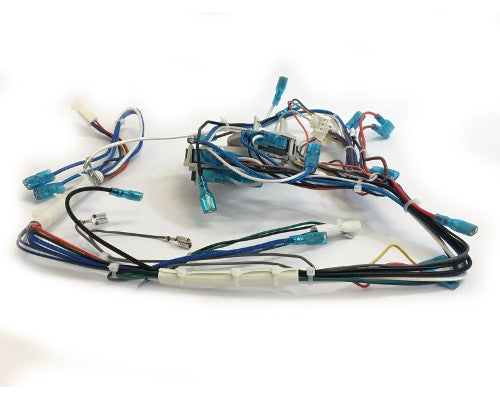

Whirlpool w10917688 Wire Harness Oem

Product Description

The Whirlpool w10917688 is an OEM wire harness designed for use in Whirlpool appliances. A wire harness bundles and routes electrical conductors between components, ensuring consistent power and signal delivery throughout the unit. This part is manufactured by Whirlpool to original equipment specifications, making it a direct-fit replacement for a failed or damaged harness. Appliance technicians and service professionals install this type of component when wiring shows signs of heat damage, cracking, or failed connections that cannot be repaired by splicing.

This wire harness is suited for residential appliance repair applications. It is typically installed during service calls where the root cause of an electrical fault has been traced to a damaged or open harness assembly. Using an OEM part ensures connector fit and conductor gauge match the original design, reducing the risk of repeat failures caused by aftermarket substitutions.

Key Features

• OEM part manufactured by Whirlpool to original equipment specifications
• Direct-fit replacement for worn, cracked, or heat-damaged harness assemblies
• Maintains original connector fit and conductor routing
• Eliminates signal and power delivery issues caused by harness failure

Compatibility

Designed as an OEM-style replacement wire harness for Whirlpool appliances requiring part number w10917688.

Installation Notes

Wire harness replacement on residential appliances should be performed by a qualified appliance service technician. Disconnect power to the appliance at the wall outlet or circuit breaker before beginning any disassembly. Route the new harness along the original path and secure all connectors fully before restoring power. Refer to the appliance wiring diagram, typically located inside the cabinet or on the service panel, for connector identification.

Technical Specifications

• Part Type: Wire Harness
• OEM: Yes

Standard Information

• Brand: Whirlpool
• Manufacturer Part Number: w10917688
