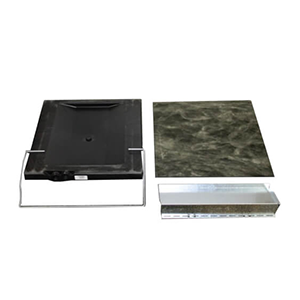

Westinghouse 920265 Horizontal Drain Pan Kit Indoor Coil

Product Description

The WESTINGHOUSE 920265 is a horizontal drain pan kit designed as a replacement component for cased indoor evaporator coils. The drain pan collects condensate produced during the cooling cycle and directs it away from the air handler cabinet and surrounding structure. This kit is factory-matched to specific C6-series cased coil assemblies and is installed by licensed HVAC technicians during coil service, coil replacement, or when an existing pan shows cracking, warping, or scale buildup that compromises drainage. Proper condensate management prevents water damage, mold growth, and system inefficiency.

This drain pan kit is intended for horizontal installation configurations, meaning the coil is oriented so that airflow passes horizontally through the coil face. This orientation is common in attic installations, crawl space air handlers, and closet systems where a vertical-discharge unit is mounted on its side. The kit is matched to C6BA-series cased indoor coils in the 24 to 30 MBH capacity range and is not interchangeable with vertical or upflow configurations without manufacturer verification.

Key Features

• Designed for horizontal installation on C6BA-series cased indoor coils
• Factory-matched replacement ensures proper fitment and seal against condensate leakage
• Compatible with 24 to 30 MBH coil capacity range within the specified model series
• Replaces damaged, cracked, or deteriorated OEM drain pans to restore code-compliant condensate handling

Compatibility

Designed for use with the following cased indoor coils: C6BA-F24C-A, C6BA-T24C-A, and C6BA-X24C-A, corresponding to C6BA-F, C6BA-T, and C6BA-X model families.

Installation Notes

Installation should be performed by a licensed HVAC technician. Disconnect power to the air handler and shut off the system at the thermostat and disconnect before beginning any coil or drain pan service. Verify the replacement pan orientation matches the existing horizontal coil configuration before installation. Local mechanical codes may require a secondary drain pan under the air handler in attic installations — consult the applicable IMC or local jurisdiction requirements.

Technical Specifications

• Configuration: Horizontal
• Component Type: Drain Pan Kit
• Compatible Coil Series: C6BA-F, C6BA-T, C6BA-X
• Capacity Range: 24 to 30 MBH

Standard Information

• Brand: WESTINGHOUSE
• Manufacturer Part Number: 920265
