Westinghouse 669941R Ac Drain Pan Vertical

Product Description

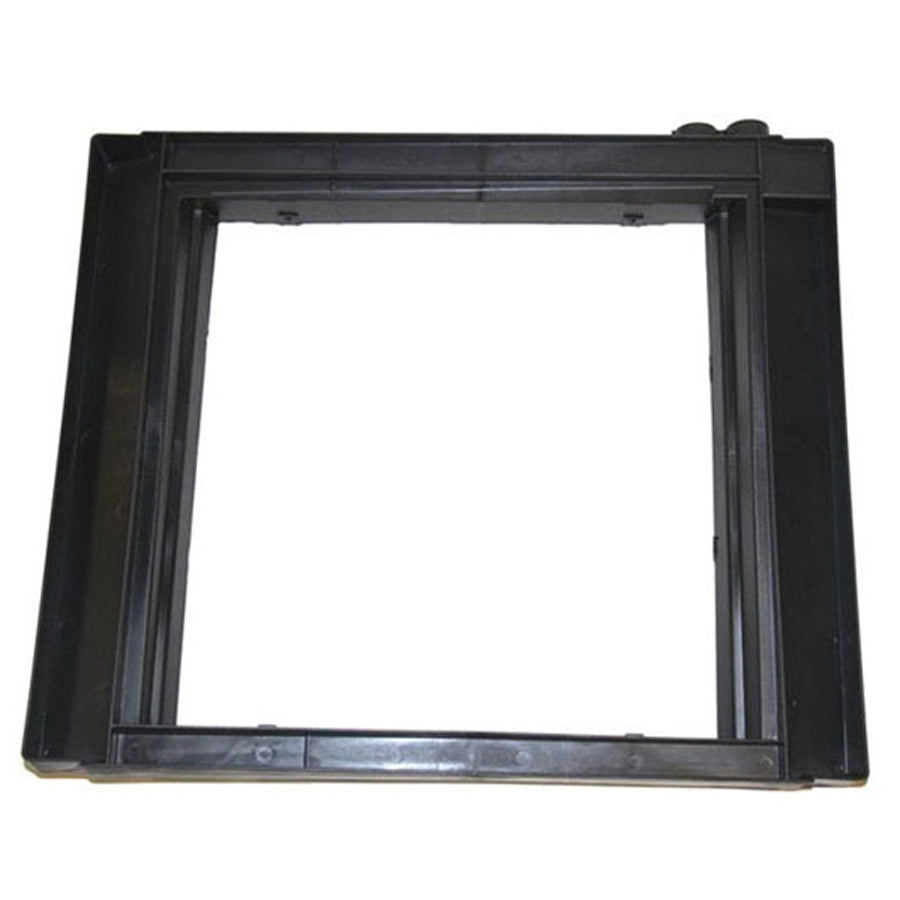

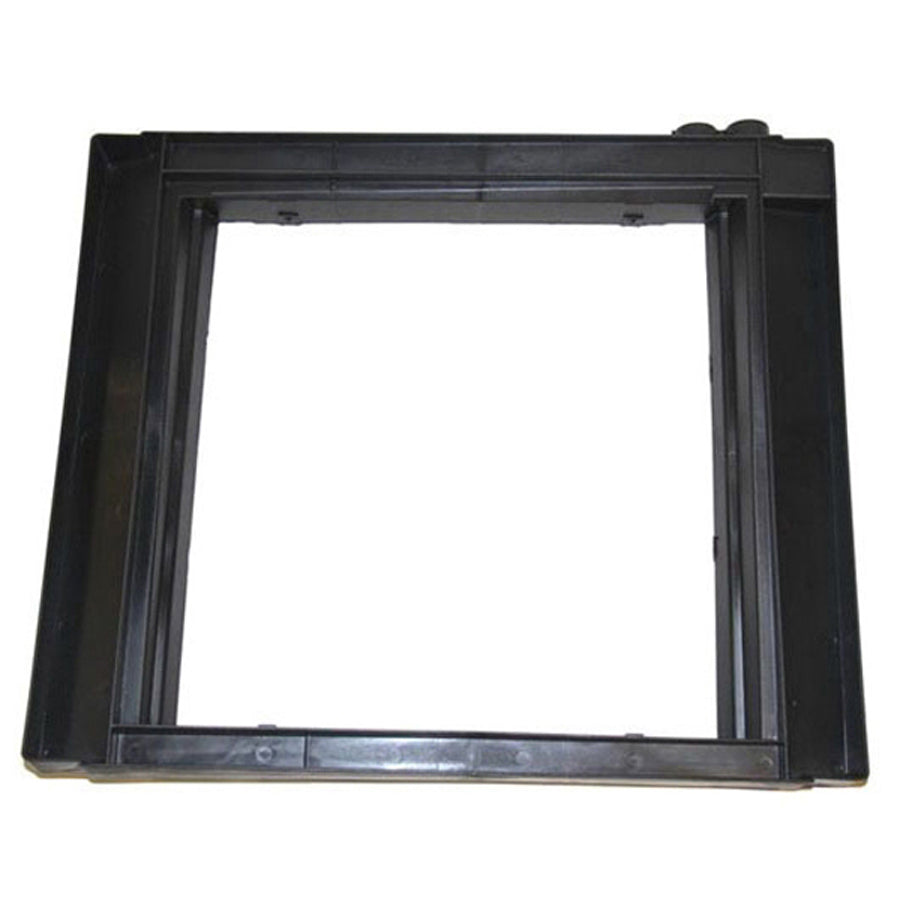

The WESTINGHOUSE 669941R is a vertical drain pan designed to catch and channel condensate from air conditioning equipment. Finished in black, this pan mounts in vertical applications where the evaporator coil or air handler is oriented upright. It serves as a secondary containment component, helping prevent water damage to surrounding structures and mechanical rooms. Licensed HVAC technicians install this pan during new equipment installation or as a direct replacement when an existing pan shows cracking, rust, or overflow damage.

This drain pan is intended for vertical air conditioning installations, including upflow and vertical-mount air handlers commonly found in residential and light commercial settings. It is suited for installations where the condensate outlet must align with a vertically positioned coil cabinet. Where secondary drain pans are required by local mechanical codes, this pan provides the appropriate containment geometry for vertical equipment configurations.

Key Features

• Vertical orientation design matches upflow and vertical air handler configurations
• Black finish provides corrosion-resistant appearance for long service life
• Functions as primary or secondary condensate containment pan
• Direct replacement for worn, cracked, or leaking OEM-style drain pans

Compatibility

Designed as an OEM-style replacement vertical drain pan for air conditioning equipment requiring vertical condensate containment.

Installation Notes

Installation should be performed by a licensed HVAC technician. Shut down and disconnect power to the air handling unit before removing the existing pan or accessing the coil compartment. Verify the pan sits level and that the condensate drain outlet is properly connected and pitched toward the drain line. Check local mechanical codes for secondary drain pan and condensate disposal requirements.

Technical Specifications

• Color/Finish: Black
• Orientation: Vertical
• Application: Air Conditioner Condensate Drain Pan

Standard Information

• Brand: WESTINGHOUSE
• Manufacturer Part Number: 669941R
