Westinghouse 286802R Air Handler Wire Set

Product Description

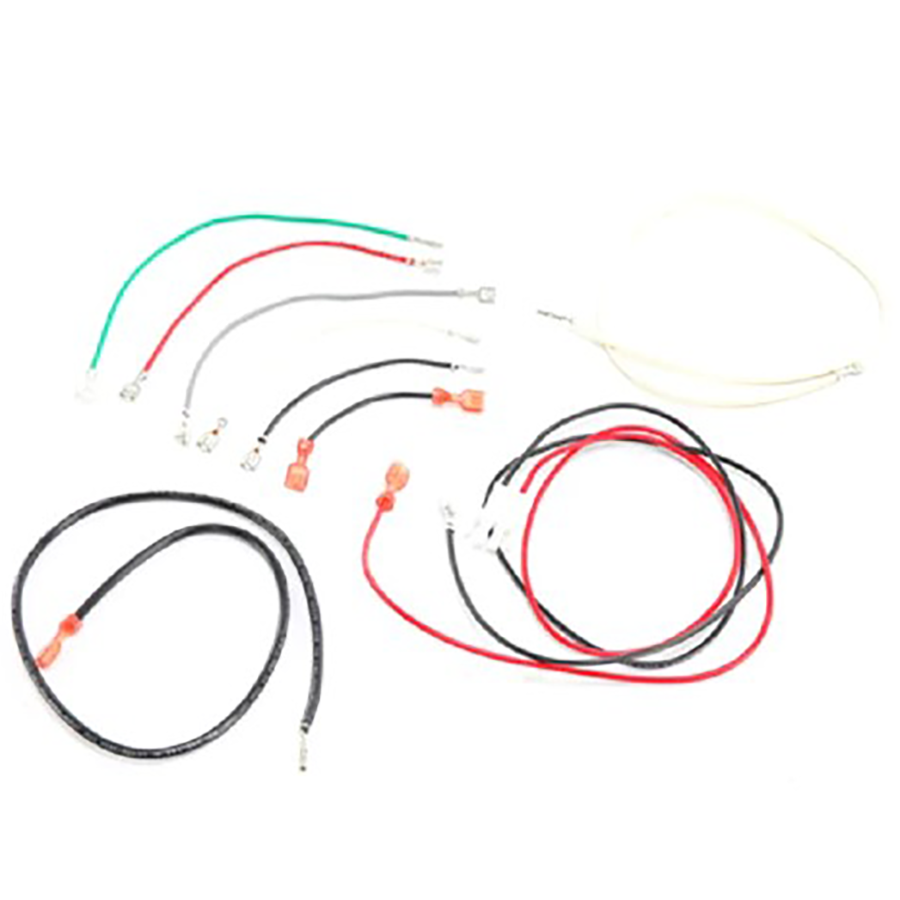

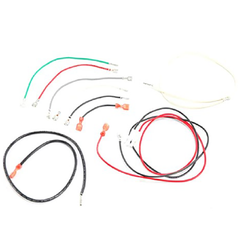

The WESTINGHOUSE 286802R is a replacement wire set designed for indoor multi-poise air handlers. Wire sets carry low-voltage and line-voltage signals between components inside the air handler cabinet, including control boards, motors, and terminal blocks. When factory wiring becomes brittle, damaged, or fails inspection, a direct-replacement wire set restores safe, code-compliant electrical connections without custom fabrication. Licensed HVAC technicians handle this repair as part of a standard electrical service call. The 286802R is built to OEM specifications for a drop-in fit on compatible WESTINGHOUSE air handler models.

This wire set is used on WESTINGHOUSE indoor multi-poise air handlers in residential split-system applications. Multi-poise units are designed for flexible installation orientations including upflow, downflow, and horizontal configurations, making them common in attics, closets, and utility rooms. The 286802R serves as the correct replacement harness for units in the PAH2BM and PAH2VM model families, restoring electrical integrity to the air handler's internal wiring circuit.

Key Features

• OEM-style replacement wire set for direct fit installation
• Compatible with PAH2BM and PAH2VM model families
• Designed for indoor multi-poise air handler configurations
• Restores factory wiring integrity without custom splicing or fabrication
• Correct connector and harness layout for supported model numbers

Compatibility

Designed for use with WESTINGHOUSE indoor multi-poise air handlers, specifically model numbers PAH2VM024KA, PAH2VM024KB, PAH2VM025KA, and PAH2VM025KB, within the PAH2BM and PAH2VM model families.

Installation Notes

Installation should be performed by a licensed HVAC technician. Disconnect all power to the air handler at the disconnect switch and confirm zero voltage with a meter before removing any wiring. Route the replacement harness following the original factory path and secure all connectors fully before restoring power. Work should comply with applicable NEC requirements for low-voltage and line-voltage wiring inside HVAC equipment.

Technical Specifications

• Item Type: Wire Set
• Application: Indoor Multi-Poise Air Handler
• Compatible Part Numbers: PAH2VM024KA, PAH2VM024KB, PAH2VM025KA, PAH2VM025KB
• Compatible Model Families: PAH2BM, PAH2VM

Standard Information

• Brand: WESTINGHOUSE
• Manufacturer Part Number: 286802R
