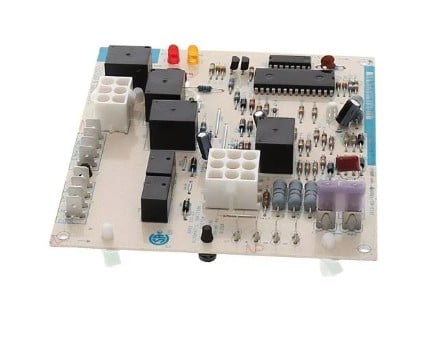

Westinghouse 1021575r Control Board

Product Description

The WESTINGHOUSE 1021575r is a direct-replacement control board designed to manage the sequencing and operational logic of a residential or light-commercial gas furnace. The board coordinates ignition, blower motor staging, limit-switch monitoring, and fault detection to keep the heating system running within safe operating parameters. Licensed HVAC technicians typically source this board when diagnosing a no-heat call traced to a failed or corrupted control circuit. It is a drop-in OEM-style replacement intended to restore original system behavior without field modification.

This control board is suited for gas-fired forced-air furnace applications where the original board has failed due to age, power-surge damage, or component fatigue. It manages low-voltage thermostat signals and coordinates the sequence of operation from call-for-heat through burner ignition, heat exchanger warm-up, blower on-delay, and post-cycle purge. Typical installations are in residential split-system or package unit gas furnaces serviced by a licensed HVAC technician.

Key Features

• OEM-style replacement restores factory sequence of operation
• Manages ignition sequencing, blower staging, and limit-switch inputs
• Handles low-voltage thermostat signal interface
• Designed for drop-in installation with no field wiring modifications required
• Fault detection logic supports diagnostics during no-heat service calls

Compatibility

Designed as an OEM-style replacement control board for residential and light-commercial gas furnace systems where the original board has reached end of life or failed due to electrical damage.

Installation Notes

Installation should be performed by a licensed HVAC technician following local mechanical and electrical codes. Disconnect all electrical power to the furnace at the disconnect switch and set the thermostat to the off position before removing the existing board. Transfer all wiring connections carefully, noting terminal labeling on the old board before removal. Refer to the furnace manufacturer wiring diagram, typically located inside the furnace cabinet door, to verify connection points before restoring power.

Technical Specifications

• Product Type: Furnace Control Board

Standard Information

• Brand: WESTINGHOUSE
• Manufacturer Part Number: 1021575r
