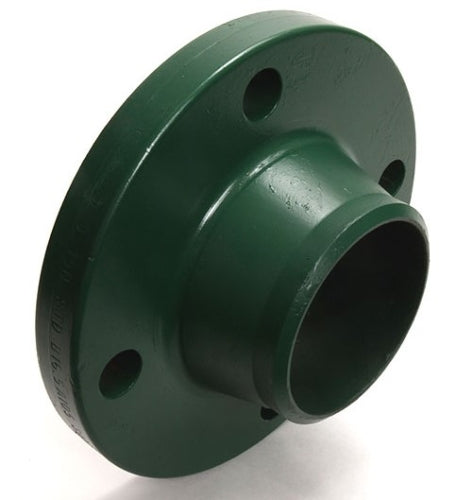

Weldbend 321-100-000 Weld Neck Flange Flat Face 10 in

Product Description

The Weldbend 321-100-000 is a flat face weld neck flange made from forged carbon steel. This flange has a nominal size of ten inches and features a standard bore. Designed for use in various piping systems, it meets high-pressure standards with a rating of seven hundred forty psig. The flange utilizes a bolt circle diameter of fifteen and one-fourth inches and has sixteen bolt holes for secure installation.

• Material: Forged Carbon Steel
• Pressure Class: 300 lb
• Temperature Rating: -20 to 100 deg F

Product Highlights

This weld neck flange is ideal for connecting pipes and provides a durable, robust solution for pressure applications. It is suitable for use in industrial settings, ensuring reliable performance under varying temperatures and pressures.

Product Information

Standard Information

• Brand: Weldbend
• MPN: 321-100-000

Technical Specifications

• Nominal Size: 10 in
• Inside Diameter: 10.02 in
• Outside Diameter: 17-1/2 in
• Thickness: 1.81 in
• Length Through Hub: 4.56 in
• Hub Diameter: 12.62 in
• Bolt Circle Diameter: 15-1/4 in
• Number of Bolt Holes: 16
• Bolt Hole Size: 1-1/8 in
• Bore Size: SCH 40/STD
• Pressure Rating: 740 psig
• Temperature Rating: -20 to 100 deg F
• Domestic/Import: Domestic
