Product Description

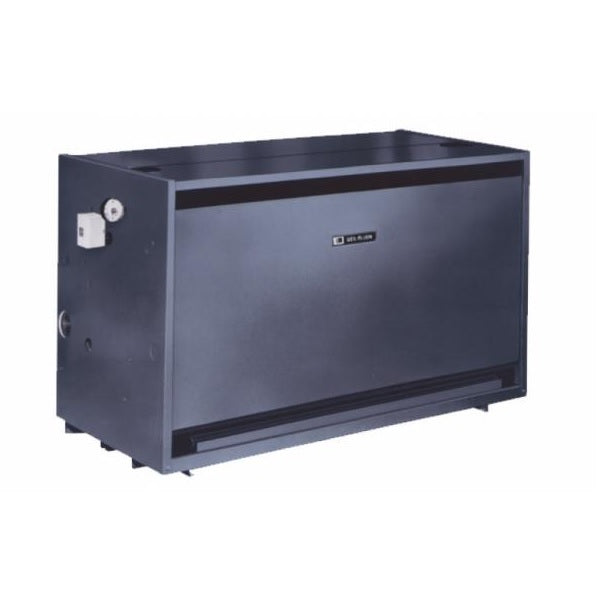

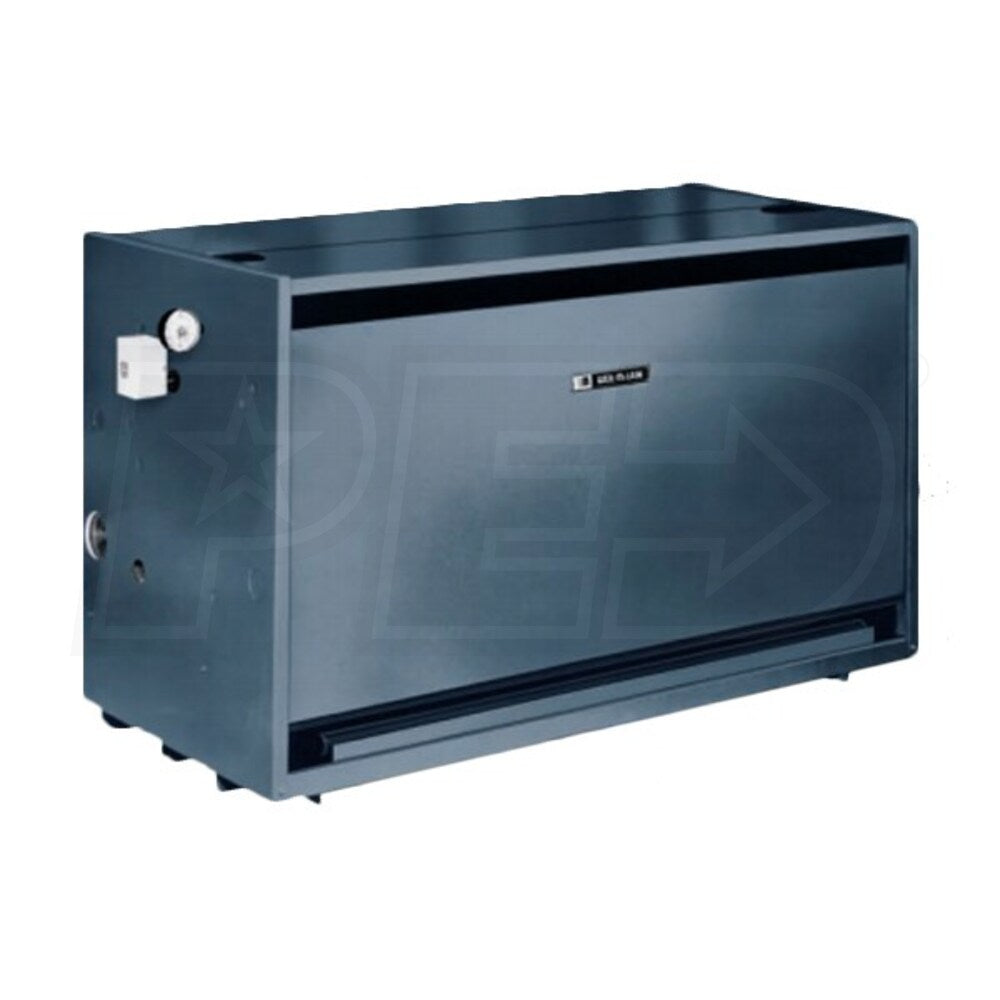

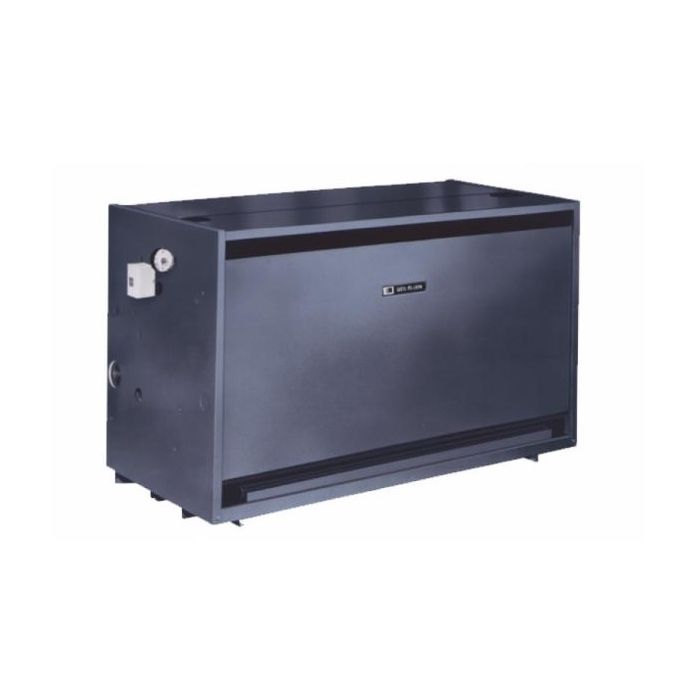

The Weil-Mclain EGH-105S is a medium-capacity commercial gas boiler designed specifically for steam applications. It utilizes a factory-assembled section block to ensure reliability. The insulated extended steel jacket maintains efficiency while the combination gas valve and regulator enhance performance.
- Designed for commercial steam applications.
- Features aluminized steel burners for durability.
- Constructed with a cast iron heat exchanger.
Product Highlights
The Weil-Mclain EGH-105S is efficient and built to last in the demanding conditions of commercial use.
Product Information
Standard Information
-
Manufacturer Part Number: EGH-105S
-
Boiler Type: Commercial
Technical Specifications
-
Fuel Type: Natural Gas
-
Medium: Steam
-
BTU Input: 405,000 BTU
-
BTU Output: 312,000 BTU
-
AFUE: 82%
-
Vent Type: Chimney Vent
-
Flue Connection Size: 10 inches
-
Heat Exchanger Material: Cast Iron
-
Mount Type: Floor
-
Assembly Type: Knockdown
-
Product Width: 46 3/4 inches
-
Product Height: 33 3/4 inches
-
Product Depth: 27 5/8 inches
-
Product Weight: 1005 pounds
-
Gas Connection Size: 3/4 inch
-
Supply Connection: 3 inches
-
Return Connection: 2 1/2 inches
-
Efficiency Type: Thermal Efficiency
-
DOE Heating Capacity: 312000 BTU
-
Net I=B=R Capacity: 234000 BTU
-
Vent Size (Inches): 10
-
Domestic Hot Water: No
-
Combustion Type: Conventional
-
Modulating/Staging: Staging
-
Minimum Altitude: 0 Feet
-
Maximum Altitude: 2000 Feet
-
Includes Pump: No
-
Gas Conversion Kit: Available
-
Ultra Low NOx Emissions: No
-
Phase: 1
-
Frequency: 60 Hz
-
CSA Listed: Yes
-
ASME Certified: Yes
-
AHRI Certified: Yes
-
AHRI Reference Number: 5628542
-
Parts Warranty: 1 Year
-
Heat Exchanger Warranty: 10 Years
