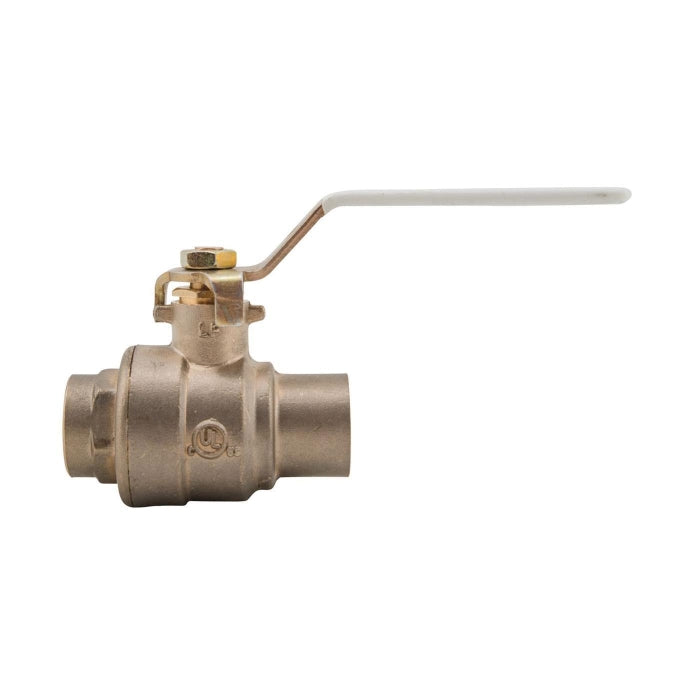

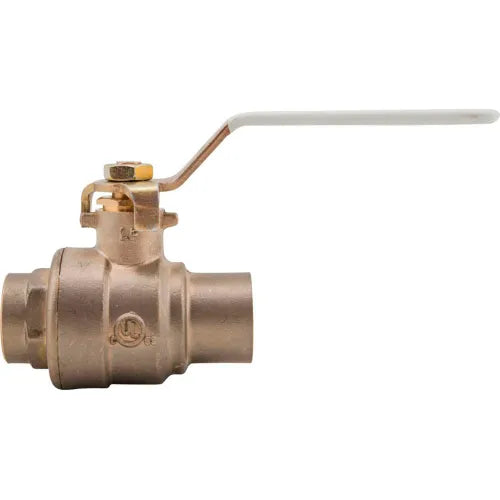

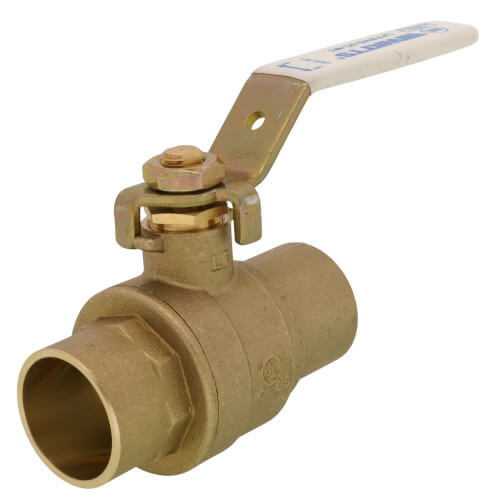

Watts 88005702 Ball Valve 1 in Replacement MPN

Product Description

The Watts 88005702 is a one inch ball valve designed for commercial and industrial applications. Made with a lead-free brass body, this valve features solder end connections for easy installation and reliable operation. It is suitable for a variety of liquids and gases, allowing for broad application in plumbing systems.

• Lead-free brass construction
• Solder end connections
• Full port design for maximum flow

Product Highlights

This valve includes a bottom-loaded blowout-proof stem and a virgin PTFE seat which helps to prevent leaks. The adjustable stem packing gland allows for easy maintenance. With a pressure rating of 150 psi for WSP and 600 psi for WOG, this valve is built for durability and efficiency.

Product Information

Standard Information

• Valve Type: Ball Valve
• Material: Brass

Technical Specifications

• Connections: Solder
• Nominal Size: 1 inch
• Temperature Rating: -40 to 400 degrees Fahrenheit
• Pressure Rating: 150 psi WSP / 600 psi WOG
• Orifice Size: 1-5/16 inches
• Body Material: Copper Silicon Alloy
• Trim Material: Brass/PTFE
• Weight: 1.01 lbs
