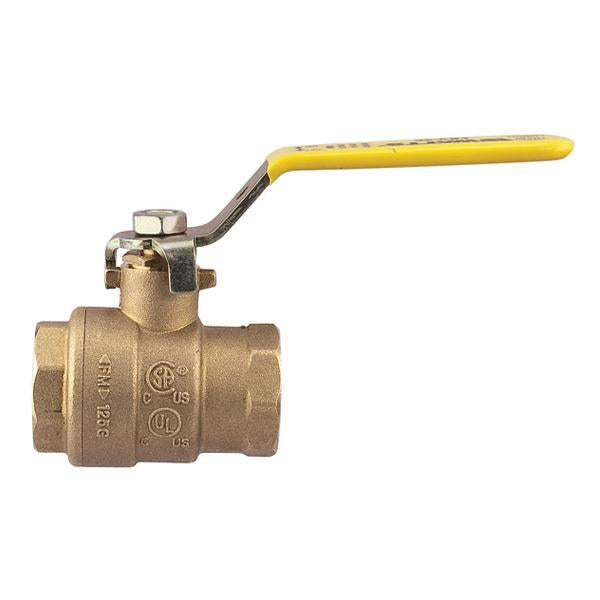

Watts 0547101 FBV-3C Ball Valve 3/8 Inch

Product Description

The WATTS 0547101 FBV-3C 2-piece ball valve is designed for commercial and industrial applications, handling a variety of liquids and gases. It features a bottom-loaded blowout-proof stem and virgin PTFE seat. It is suitable for a full range of liquids and gases.

• Fluorocarbon elastomer stem O-ring prevents stem leaks
• Adjustable stem packing gland
• PTFE stem packing seal, thrust washer, and seats

Product Highlights

This ball valve features a machined chrome plated brass ball and is recommended for open/close applications.

Product Information

Standard Information

• Brand: WATTS
• Manufacturer Part Number: 0547101

Technical Specifications

• Actuation Type: Lever Handle
• Applicable Standard: ASME B16.33/B16.44, CSA, UL/FM
• Application: Commercial, Industrial
• Ball Material: Chrome Plated Brass
• Body Material: Forged Brass
• End Connection: Female Threaded x Female Threaded
• End To End Distance: 1-3/4 Inch
• Handle Material: Zinc Plated Carbon Steel with Vinyl Insulator
• Inclusions Features: Bottom Loaded Blowoutproof Stem, Thrust Washer, Adjustable Stem Packing Gland, Brass Adapter, Fluorocarbon Elastomer Stem O-Ring
• Manufacturer Part Number: 0547101
• Nominal Size: 3/8 in
• Port Type: Full
• Pressure Rating: 150 PSI Non-Shock WSP, 600 PSI WOG
• Seal Material: PTFE
• Seat Material: Virgin PTFE
• Series: FBV-3C
• Stem Material: Machined Brass
• Temperature Rating: -40 to 400 deg F
• Type: 2-Piece
• Media: Water Oil and Gas
• Packing: Virgin PTFE
• End Style: Thread
• Softgoods Material: Fluorocarbon/Virgin PTFE
• Trim Material: Brass Stem and PTFE Seat
• Inlet to Outlet Length: 1-3/4 in
• Top to Inlet Center: 1-13/16 in
• Domestic/Import: Import
