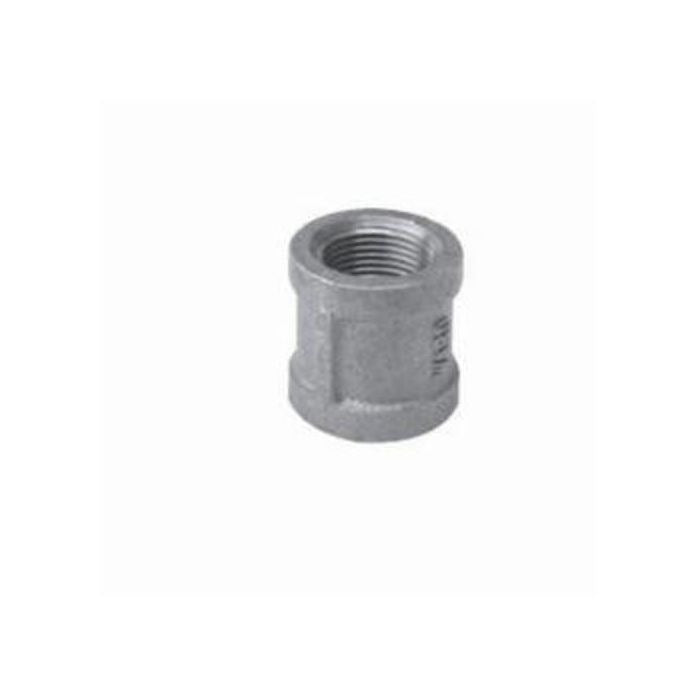

Ward 1D.BMC Coupling Pipe Straight 1-1/2 in FNPT 150 lb

Product Description

Ward 1D.BMC is a malleable iron straight pipe coupling with FNPT ends designed for 1-1/2 inch nominal pipe. The coupling is 2.15 in long, rated Class 150 with a 300 psi working pressure at 150°F, and meets SCH 40/STD. It has a temperature range of -20 to 150°F and is intended for sprinkler, drainage, and general threaded piping installations.

• High-tensile malleable iron construction with black protective finish; precision machined and chamfered openings for assembly
• 1-1/2 in FNPT threaded ends; overall length 2.15 in, thread length 0.7 in, take out 1.07 in, band outside diameter 2.43 in
• Class 150 (300 psi at 150°F) pressure rating, SCH 40/STD schedule, temperature rating -20 to 150°F; ULC and UL listed where applicable, FM approved

Product Highlights

Malleable iron threaded coupling for 1-1/2 in pipe, Class 150, FNPT ends, schedule 40.

Product Information

Standard Information

• Brand: WARD
• Manufacturer Part Number: 1D.BMC
• Country of Origin: United States (Domestic)
