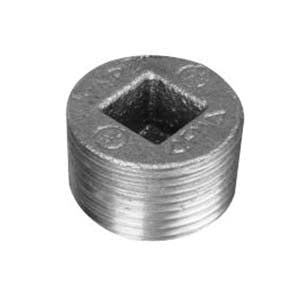

Ward 1.BCTP Square Head Countersunk Plug Class 125 1 in

Product Description

The Ward 1.BCTP is a square head countersunk plug made from cast iron, suitable for various plumbing applications. This plug features a one inch MNPT connection and meets several industry standards, ensuring reliability. The plug is designed for use in domestic systems and offers excellent durability.

• Constructed from high-quality black cast iron
• Pressure rated up to 175 psi
• Temperature range of -20 to 150 degrees Fahrenheit

Product Highlights

The Ward 1.BCTP provides a dependable sealing option for pipes and fittings in plumbing systems.

Product Information

Standard Information

• Brand: Ward
• Part Number: BCSP1

Technical Specifications

• Connection Size: 1 in
• Connection Type: MNPT
• Finish: Black
• Item Name: Square Head Countersunk Plug
• Length: 3/4 in
• Material Specifications: ASTM A126 Class A
• Material: Cast Iron
• Pressure Class: Class 125
• Pressure Rating: 175 psi
• Temperature Rating: -20 to 150 deg F
• Standards/Certifications: ASME B16.14, ANSI/ASME B1.20.1, UL and ULC listed, FM approved, NSF 61 and annexure G certified
