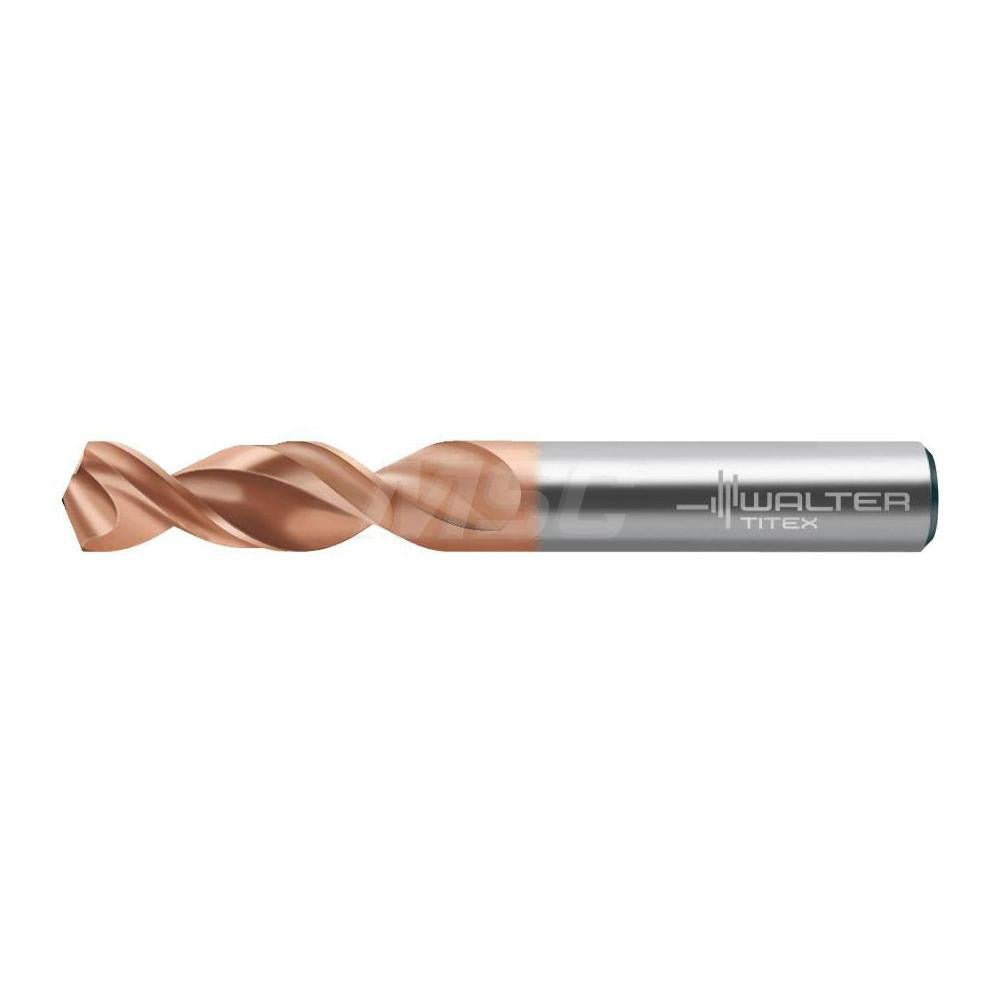

Walter-titex 5337134 Cobalt Screw Machine Drill Bit 5/64

Product Description

The WALTER-TITEX 5337134 is a cobalt screw machine length drill bit designed for high-performance drilling in demanding metal-cutting applications. Built to DIN 1897 standards, this bit carries an M35 cobalt material grade, which provides the heat resistance needed when cutting through tough workpiece materials. The 130-degree conical point with a U-geometry reduces walking and allows fast chip entry. With a parabolic flute design and tapered web configuration, it evacuates chips efficiently even in short-hole drilling scenarios. The overall length is 1.4961 inches, keeping it rigid and minimizing deflection in screw machine and drill press setups.

This bit is suited for production drilling in residential and commercial metal fabrication, maintenance, and precision machining environments. It is rated for use on cast iron, non-ferrous metals, stainless steel, and general steel stock. The straight-cylindrical shank seats cleanly in standard chucks without requiring a collet or adapter. Machinists, tool-and-die professionals, and industrial maintenance technicians are the primary installers of this type of tooling.

Key Features

• M35 cobalt construction handles elevated cutting temperatures on stainless steel and hard alloys
• 130-degree conical plus U point geometry minimizes bit walking and improves penetration rate
• Parabolic flute profile with tapered web promotes fast, clean chip evacuation
• Straight-cylindrical shank is compatible with standard drill chucks and screw machine toolholders
• DIN 1897 and ISO standards compliance ensures dimensional consistency across the series
• Maximum drilling depth of 0.3150 inches with a 3xD flute-to-diameter ratio for controlled chip control

Compatibility

Designed as an OEM-style screw machine length drill bit in the WALTER-TITEX A1149XPL series, suited for use in drill presses, CNC machining centers, and screw machines accepting a straight-cylindrical shank with an h8 diameter tolerance.

Installation Notes

Installation and use should be performed by qualified machinists or tool-and-die technicians familiar with metal-cutting tooling. Secure the workpiece and verify that the machine spindle is completely stopped before changing or seating the bit in the chuck. Confirm proper chuck clamping across the full shank length to prevent runout. Follow applicable shop safety standards and machine manufacturer guidelines for feed rate and spindle speed selection based on workpiece material.
