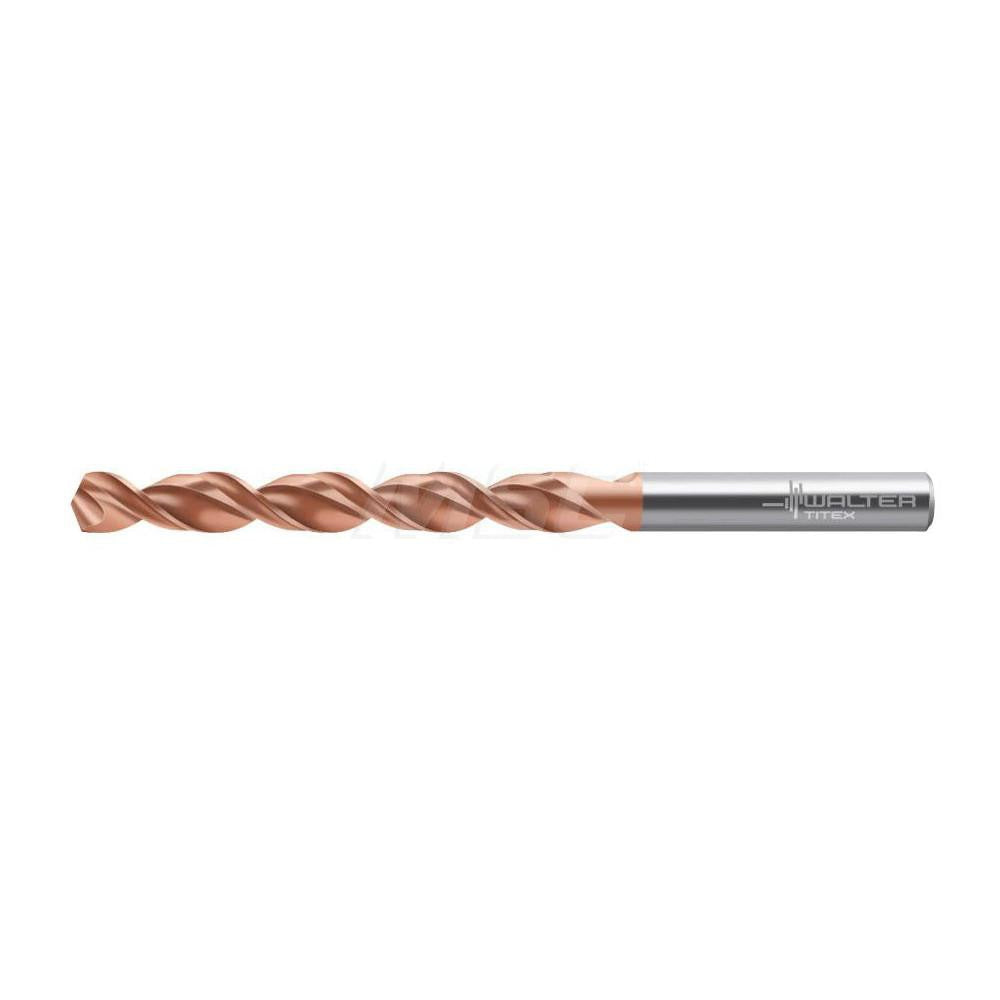

Walter-titex 5236564 Cobalt Drill Bit 5.8 Mm

Product Description

The WALTER-TITEX 5236564 is a cobalt jobber length drill bit designed for demanding metal drilling applications. Built from M35 cobalt high-speed steel and finished with an AlCrN coating, it delivers extended tool life when drilling hard and abrasive materials. The 130-degree drill point angle with web thinning and UFL point geometry reduces entry force and improves chip evacuation. At 3.661 inches overall length with a parabolic flute design and a 5xD flute-to-diameter ratio, this bit is well suited for both blind hole and stack drilling operations where chip control and heat resistance are critical. Right-hand cut with a straight-cylindrical shank to fit standard drill chucks.

This drill bit is intended for professional machining and fabrication environments. It is rated for use in cast iron, non-ferrous metals, stainless steel, and steel, corresponding to ISO material codes K, M, N, and P. Typical applications include blind hole drilling and stack drilling in production shops, maintenance facilities, and metal fabrication settings. It conforms to DIN 338 specification and meets ANSI and ISO standards. A licensed machinist or tool-and-die professional would typically specify this bit for high-performance drilling cycles on manual or CNC equipment.

Key Features

• M35 cobalt high-speed steel construction for heat and wear resistance in hard metals
• AlCrN coating extends tool life and reduces friction during high-speed cutting
• 130-degree point angle with web thinning and UFL geometry for reduced entry force
• Parabolic flute design promotes efficient chip evacuation in deep and blind hole applications
• Straight-cylindrical shank compatible with standard drill chucks and collets
• Rated for cast iron, stainless steel, non-ferrous metals, and steel per ISO material codes K, M, N, and P

Compatibility

Designed as an OEM-specification jobber length drill bit conforming to DIN 338 and ANSI and ISO standards, suitable for use in standard drill chucks and collets accepting a 5.8 mm straight-cylindrical shank across the A1249XPL series.

Installation Notes

Installation and use of this drill bit should be performed by a qualified machinist or trained trade professional. Secure the shank fully in a properly sized chuck or collet before operation and verify that the drilling equipment is powered down before tool changes. Do not exceed the rated maximum drilling depth of 1.890 inches. Follow applicable ANSI and shop safety standards for speeds, feeds, and personal protective equipment when drilling stainless steel or cast iron.
