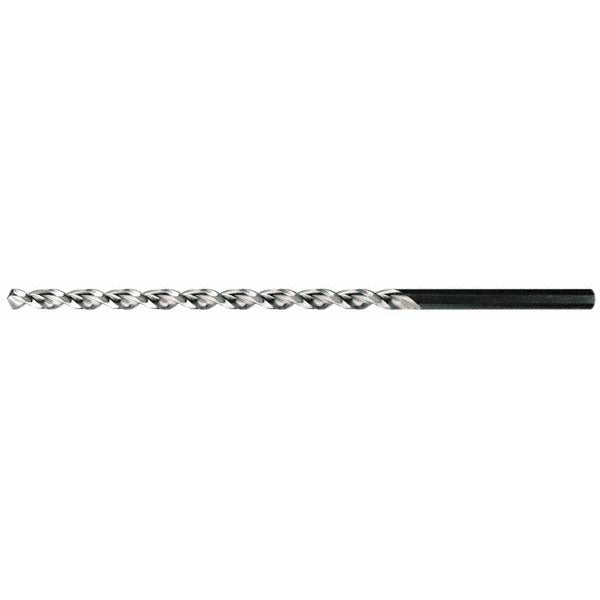

Walter-titex 5062525 Extra Length Drill Bit 0.113 in Hss

Product Description

The WALTER-TITEX 5062525 is an extra length high speed steel (HSS) drill bit designed for deep-hole drilling in metal fabrication and machining applications. Built to Series A1622 and conforming to DIN 1869-I, ANSI, and ISO standards, it carries a 130-degree point angle with a web-thinned, tapered web configuration for improved chip evacuation and reduced thrust. At 0.113 inches in diameter and 5-29/32 inches overall length with a 3-59/64-inch flute, this bit reaches depths that standard-length drills cannot. The M2 high speed steel construction and parabolic flute geometry make it a reliable choice for production drilling environments where precision and tool life matter.

This drill bit is suited for blind hole drilling and stack drilling operations in cast iron, non-ferrous metals, and steel, with secondary suitability for cobalt, iron, nickel, and titanium alloy workpieces. The straight-cylindrical shank fits standard drill chucks and collet systems without modification, making it practical for CNC machining centers, drill presses, and manual drilling setups in machine shops and fabrication facilities. The right-hand cutting direction and two-flute parabolic design support efficient chip removal during extended-reach operations.

Key Features

• M2 high speed steel construction, uncoated, for broad material compatibility
• 130-degree point angle with UFL point type and web-thinned tapered web for reduced entry thrust
• Parabolic flute geometry promotes chip evacuation in deep-hole applications
• Extra length design — 5-29/32 inches overall, 3-59/64-inch flute — supports 16xD depth-to-diameter ratio
• Straight-cylindrical shank at 0.113 inches diameter fits standard chucks and collets
• Rated for blind hole and stack drilling on cast iron, steel, and non-ferrous materials

Compatibility

Designed for use in standard drill chucks and collet systems accepting a 0.113-inch straight-cylindrical shank. Suitable for primary workpiece materials including cast iron, non-ferrous metal, and steel, with secondary suitability for cobalt, iron, nickel, and titanium alloy as noted by material codes M, O, and S.

Installation Notes

Installation and operation should be performed by a qualified machinist or tooling technician familiar with drill press or CNC equipment setup. Secure the shank fully in the chuck or collet and verify runout before beginning a cut. Power down and de-energize the machine spindle before changing or inspecting tooling. Do not exceed the maximum drilling depth of 3.74 inches stated for this bit, and always apply appropriate cutting fluid recommendations for the specific workpiece material being drilled.
