Walter-Titex 5060591 HSS-E Twist Drill A1247-4.9 (130° Point Angle)

Product Description

The Walter-Titex 5060591 is an HSS-E twist drill from the A1247 series designed to DIN 338. It has a 4.9 mm cutting diameter, 44 mm cutting length and an overall length of 86 mm with an 8xD flute length ratio and a 130° point angle. The tool is uncoated, Alpha XE grade high-speed steel and is intended for through, blind and stacked hole drilling in metalworking.

• Material: HSS-E (Alpha XE), conforms to DIN 338; 8xD flute length for deep drilling

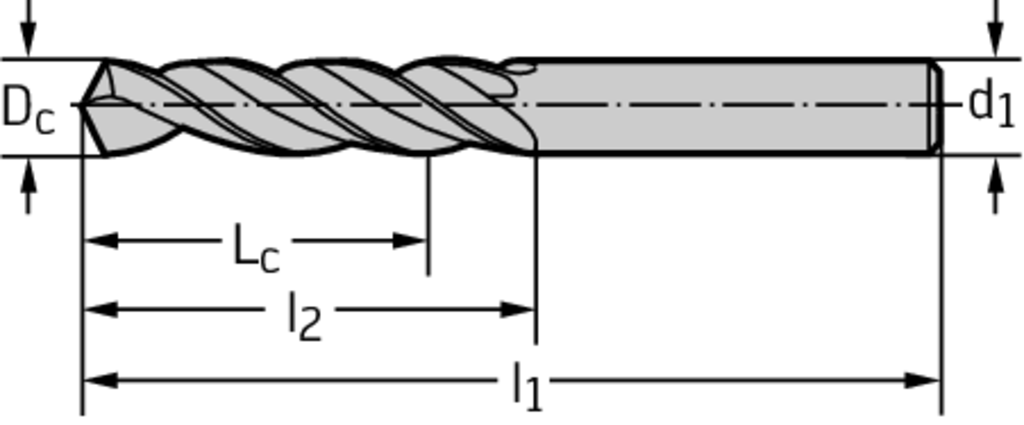

• Dimensions: cutting diameter 4.9 mm, cutting length 44 mm, overall length 86 mm, projection 52 mm
• Tool geometry: cylindrical shank 4.9 mm, 130° point angle, 2 flutes, right-hand helix 30°

Product Highlights

4.9 mm HSS-E A1247 twist drill, 8xD flute, cylindrical shank, 130° point angle for general metalworking

Product Information

Standard Information

• Brand: WALTER-TITEX
• Manufacturer Part Number: 5060591
