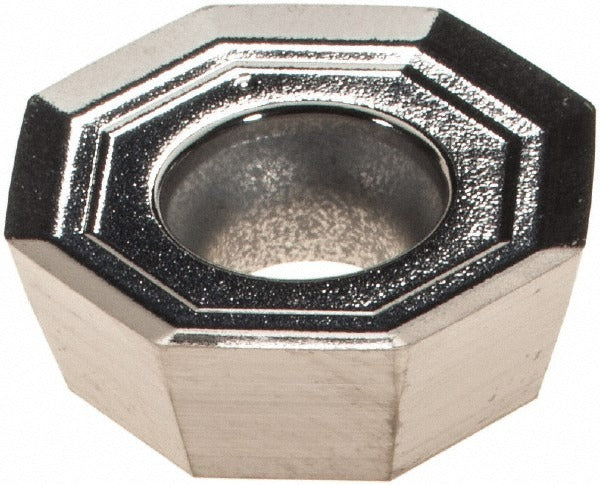

Walter 5004795 Milling Insert Octagon WK10 Solid Carbide

Product Description

The WALTER 5004795 is a solid carbide milling insert in the ODHT series, designed for high-performance milling of non-ferrous metals. This octagon-shaped insert carries grade WK10 with a bright uncoated finish, a positive rake angle of 20 degrees, and a sharp cutting edge style. It delivers a maximum depth of cut of 0.2590 inches (6.58 mm) and features a corner radius of 0.0315 inches (0.80 mm). The G88 chip breaker geometry and 15-degree relief angle are engineered for clean, efficient chip evacuation in demanding milling operations. Licensed machinists and CNC tooling specialists are the primary installers.

This insert is intended for milling applications on non-ferrous metals such as aluminum, copper, and their alloys. It is suited for use in precision machining environments where sharp cutting geometry and positive rake are required to minimize built-up edge and maintain surface finish quality. The ODHT0605ZZN-G88 designation follows both ANSI and ISO coding standards, making it straightforward to cross-reference in tooling libraries. The insert is held in the cutter body by a screw-type clamping method and is single-sided with 8 available cutting edges, providing multiple index positions per insert.

Key Features

• Octagon insert shape with 8 cutting edges for maximum indexing value per insert
• Solid carbide WK10 grade with bright uncoated finish optimized for non-ferrous workpiece materials
• Positive rake angle of 20 degrees and sharp cutting edge style for low cutting forces
• G88 chip breaker geometry supports clean chip formation at a maximum depth of cut of 0.2590 inches
• Corner radius of 0.0315 inches reduces stress concentration at the cutting edge
• Compatible with F2010 and M5003 cutter series for broad toolholder flexibility
• Compliant with both ANSI and ISO coding standards for easy cross-referencing

Compatibility

Designed for use in the ODHT series and confirmed compatible with Walter cutter series F2010 and M5003. ANSI and ISO code: ODHT0605ZZN-G88 WK10.

Installation Notes

Installation is performed by a qualified CNC machinist or tooling technician. The insert is secured using a screw-type clamping method; use the correct torx or hex key as specified by the cutter body manufacturer and ensure the seating pocket is clean and free of chips before indexing. Always power down and lock out the machine spindle before changing inserts. Do not use damaged or chipped inserts, as this can compromise workpiece surface integrity and cutter body condition.
