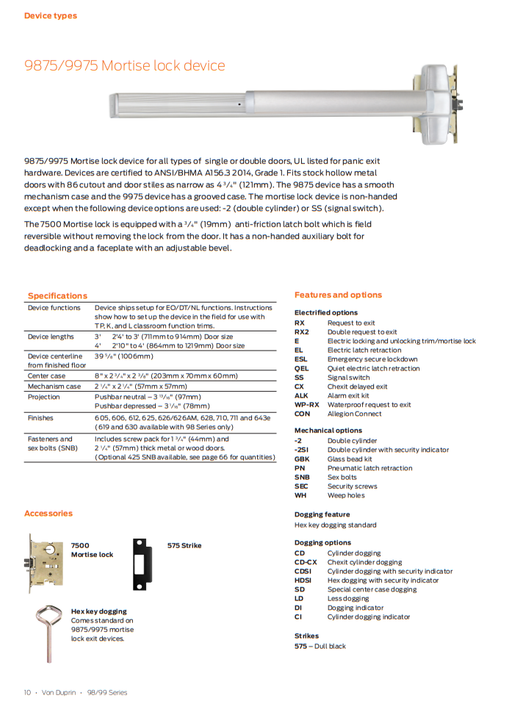

Von Duprin 9975EO-626-36 Mortise Lock Panic Exit Device

Product Description

The Von Duprin 9975EO-626-36 is a grade 1 mortise exit device designed for exit-only applications. This device includes a grooved case and features hex key dogging, allowing for easy field reversal. It provides a secure exit solution for emergency egress, making it suitable for commercial and institutional use.

• Grade 1 Mortise Exit Device
• Exit Only functionality
• Features Hex Key Dogging

Product Highlights

Reliable and secure exit device for safe emergency egress.

Product Information

Standard Information

• Device Functions: EO - Exit Only
• Device Lengths: 3 feet (711mm to 914mm)

Technical Specifications

• Door Size: 4 feet (864mm to 1219mm)
• Centerline Height: 39 13/16 inches (1011mm)
• Center Case Dimensions: 8 inches x 2 3/4 inches x 2 3/8 inches (203mm x 70mm x 60mm)
• Mechanism Case Dimensions: 2 1/4 inches x 2 1/4 inches (57mm x 57mm)
• Projection: Pushbar neutral – 3 13/16 inches (97mm), Pushbar depressed – 3 1/16 inches (78mm)
• Finishes Available: 605 - Bright Brass, 606 - Satin Brass, 612 - Satin Bronze, 625 - Bright Chrome, 626/626AM - Satin Chrome, 628 - Satin Aluminum Clear Anodized, 710 - Dark Bronze Anodized Aluminum, 711 - Black Anodized Aluminum, 643E - Aged Bronze
• Fasteners Included: Screws for 1 3/4 inches (44mm) and 2 1/4 inches (57mm) thick doors
