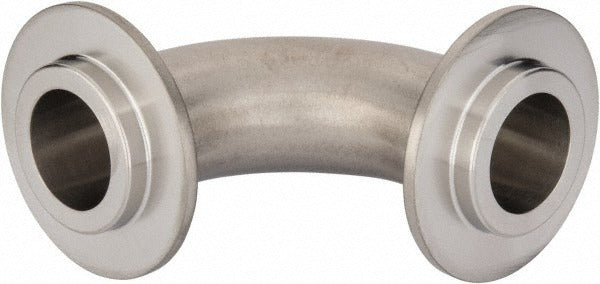

Vne E2EI1.0 Sanitary 90 Elbow 1 Inch E-line 304 Ss

Product Description

The VNE E2EI1.0 is a sanitary-grade 90-degree pipe elbow designed for hygienic fluid handling systems. Manufactured from 304 stainless steel, it delivers corrosion resistance and cleanability required in food, beverage, dairy, and pharmaceutical processing lines. The fitting uses E-Line male x male end connections on both ends, making it a straightforward drop-in component for E-Line piping assemblies. At 0.58 pounds, it is a compact, single-unit fitting sized at 1 inch. Installation is handled by pipefitters and sanitary process technicians working on CIP-compatible process lines.

This elbow is suited for 1-inch sanitary process piping runs where a 90-degree directional change is required. E-Line connection systems are common in light-duty sanitary process applications across food processing, dairy, and beverage production facilities. The male x male configuration allows the fitting to mate with standard E-Line female couplings or clamp-style adapters within the same product family. It is appropriate for both new installations and replacement of worn or damaged elbows in existing sanitary lines.

Key Features

• 90-degree elbow geometry for direction changes in sanitary piping runs
• Grade 304 stainless steel construction for corrosion resistance and cleanability
• E-Line male x male end connections on both ends for E-Line system compatibility
• 1-inch fitting size for standard sanitary process line sizing
• Sanitary design suitable for CIP and hygienic process environments

Compatibility

Designed as an OEM-style replacement or new-installation fitting for 1-inch E-Line sanitary piping systems using male x male end connections.

Installation Notes

Installation should be performed by a qualified pipefitter or sanitary process technician familiar with E-Line connection systems. Depressurize and drain the process line fully before removing or installing any fittings. Verify that mating female couplings and gaskets are clean, undamaged, and compatible with E-Line male fittings before completing the connection. Follow applicable sanitary piping standards and facility hygiene protocols when working on food-grade or pharmaceutical process lines.
