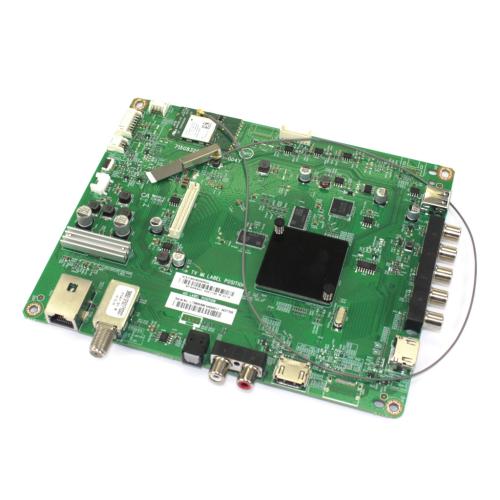

Vizio-tpv 756txicb02k015 Scaler Board

Product Description

The VIZIO-TPV 756txicb02k015 is a scaler board designed as a direct replacement component for compatible VIZIO-TPV television units. The scaler board handles video signal processing, converting incoming source resolutions to the native display resolution of the panel. This board is an internal PCB assembly typically replaced by electronics repair technicians or experienced television service professionals when the display exhibits scaling failures, no-picture conditions, or resolution-related image defects. It is referenced by the internal assembly code CBPRI8KKX2.

This scaler board is intended for use in television repair applications where the original board has failed due to component-level faults, power surge damage, or general electronic failure. It is sourced as a factory-matched replacement part, making it suitable for service centers and independent repair technicians working on VIZIO-TPV consumer electronics. Proper board identification using the full part number is critical before ordering, as scaler boards are model-specific components.

Key Features

• Factory-matched scaler board assembly for VIZIO-TPV television units
• Handles video signal scaling and resolution conversion within the display system
• Referenced by internal assembly code CBPRI8KKX2 for cross-reference identification
• Direct drop-in replacement for failed or damaged original boards

Compatibility

Designed as an OEM-style replacement scaler board for compatible VIZIO-TPV television models. Verify the full part number 756txicb02k015 against the original board markings before installation to confirm fitment.

Installation Notes

Installation should be performed by a qualified electronics repair technician familiar with television PCB service procedures. Disconnect the television from all power sources and allow capacitors to discharge fully before opening the cabinet or handling internal components. Electrostatic discharge precautions, including use of an anti-static wrist strap and mat, are required when handling the scaler board. Reconnect all ribbon cables and connectors fully and in the correct orientation before powering the unit on for testing.

Technical Specifications

• Assembly Code: CBPRI8KKX2

Standard Information

• Brand: VIZIO-TPV
• Manufacturer Part Number: 756txicb02k015
