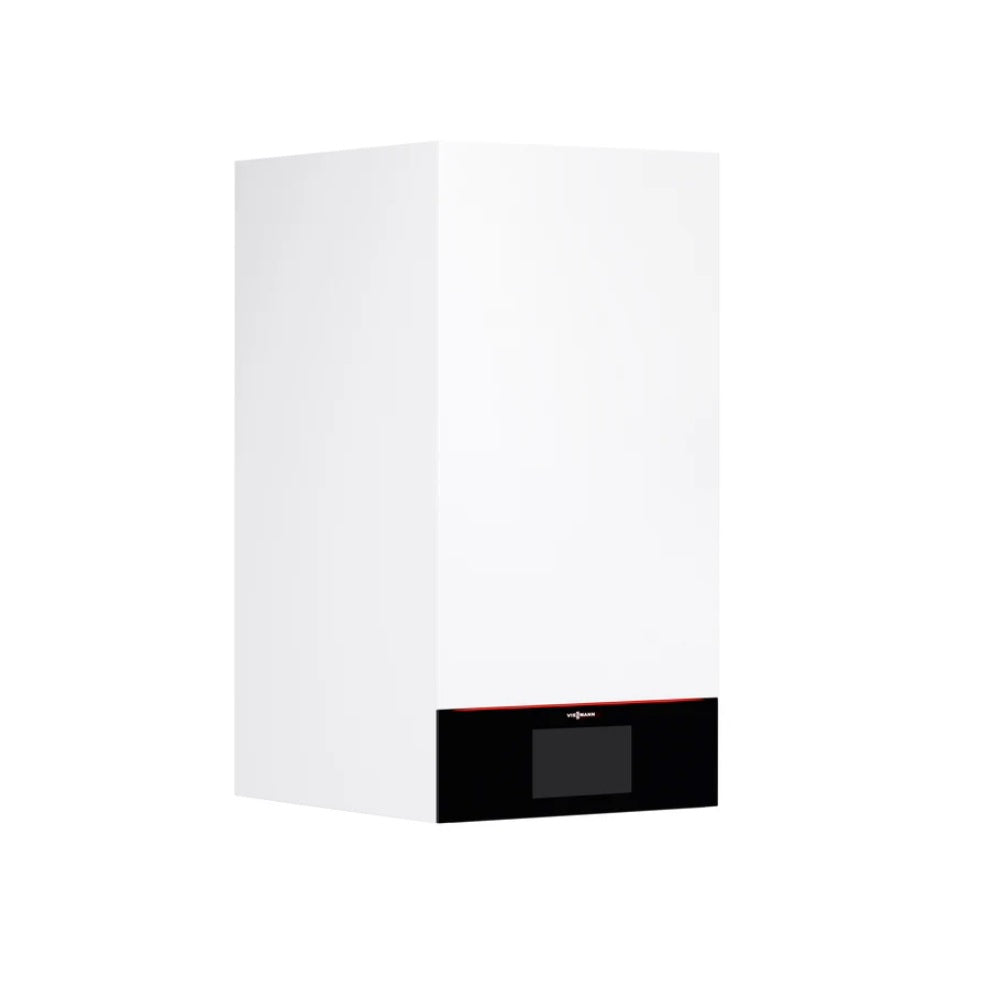

Viessmann 7722781 B2HE-199 Vitodens 200-W 199 Input MBtu

Product Description

The Viessmann 7722781 B2HE-199 Vitodens 200-W gas-fired wall-mount condensing boiler delivers performance, reliability, and comfort. Equipped with an intelligent combustion management system, it adjusts automatically to multiple vent options, gas type, and quality. It features a color touchscreen control with multi-function outdoor reset and system control for multi-temperature space and DHW heating.

• Best value in its class with new industry-leading technology and the most standard features.
• Highest Efficiency up to 98% at full modulation and up to 95% A.F.U.E.

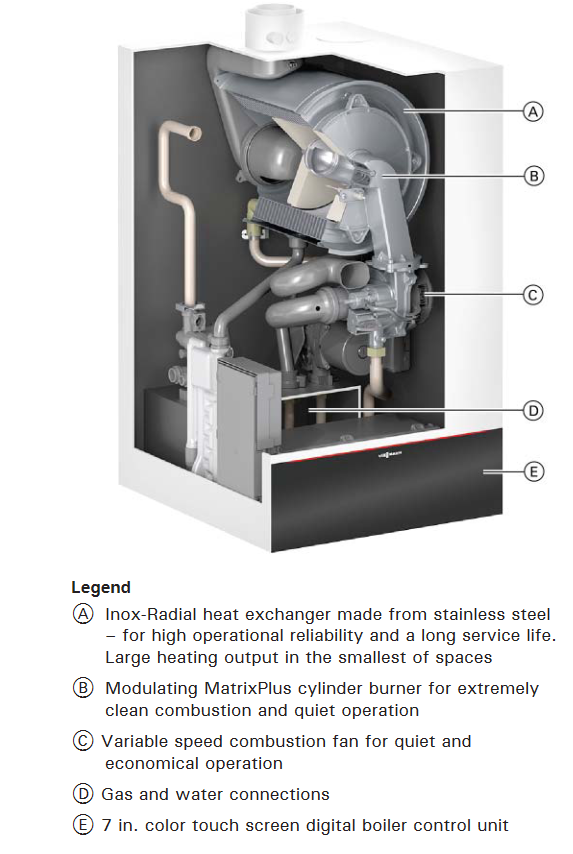

• Lasting performance with industry-leading Viessmann made SA240 / S43932 stainless steel Inox-Radial heat exchanger constructed to CSA B51 and ASME Section IV.

Product Highlights

The Vitodens 200-W offers easy installation, reduced maintenance, and greater venting flexibility. It operates quietly and has a compact design with zero clearance to combustibles.

Product Information

Standard Information

• Brand: VIESSMANN
• Manufacturer Part Number: 7722781

Technical Specifications

• MPN: 7722781
• Manufacturer: Viessmann
• Series: Vitodens
• BTU Input: 199000
• AFUE: 95%
• Height (Inches): 39"
• Width (Inches): 17.75"
• Depth (Inches): 21.75"
• Dimensions: 21.75" D X 17.75" W X 39" H
• Fuel Type: Liquid Propane, Natural Gas
• Water Heater Type: Residential
• BTU Output: 187000
• Annual Fuel Usage Efficiency (AFUE): 95.0
• Domestic Hot Water: No
• Vent Type: Direct / Coaxial / Atmospheric
• Building Type: Residential
• Length (inches): 21.75
• Width (inches): 17.75
• Height of Boiler (inches): 39.0
• Vent Material: PVC/CPVC
• Supply: Male Iron Pipe 1
• Return: Male Iron Pipe 1
• Gas Connection (inches): 3/4
• Vent Size (inches): 3
• Connection Type: 3/4 in FNPT
• Type: Condensing
• Input Capacity: 199,000 BTU/hr
• Commercial / Residential: Residential
• Material: Stainless Steel
• Mounting Type: Wall
• Pressure Rating: 60 psig @ 210 deg F
• Sound Level: 51 dBA
• Specifications: 7 in color touch screen
• Temperature Rating: 106 to 151 deg F
• Item Dimensions: L 21.75 x W 17.75 x H 39 (in.)
