Product Description

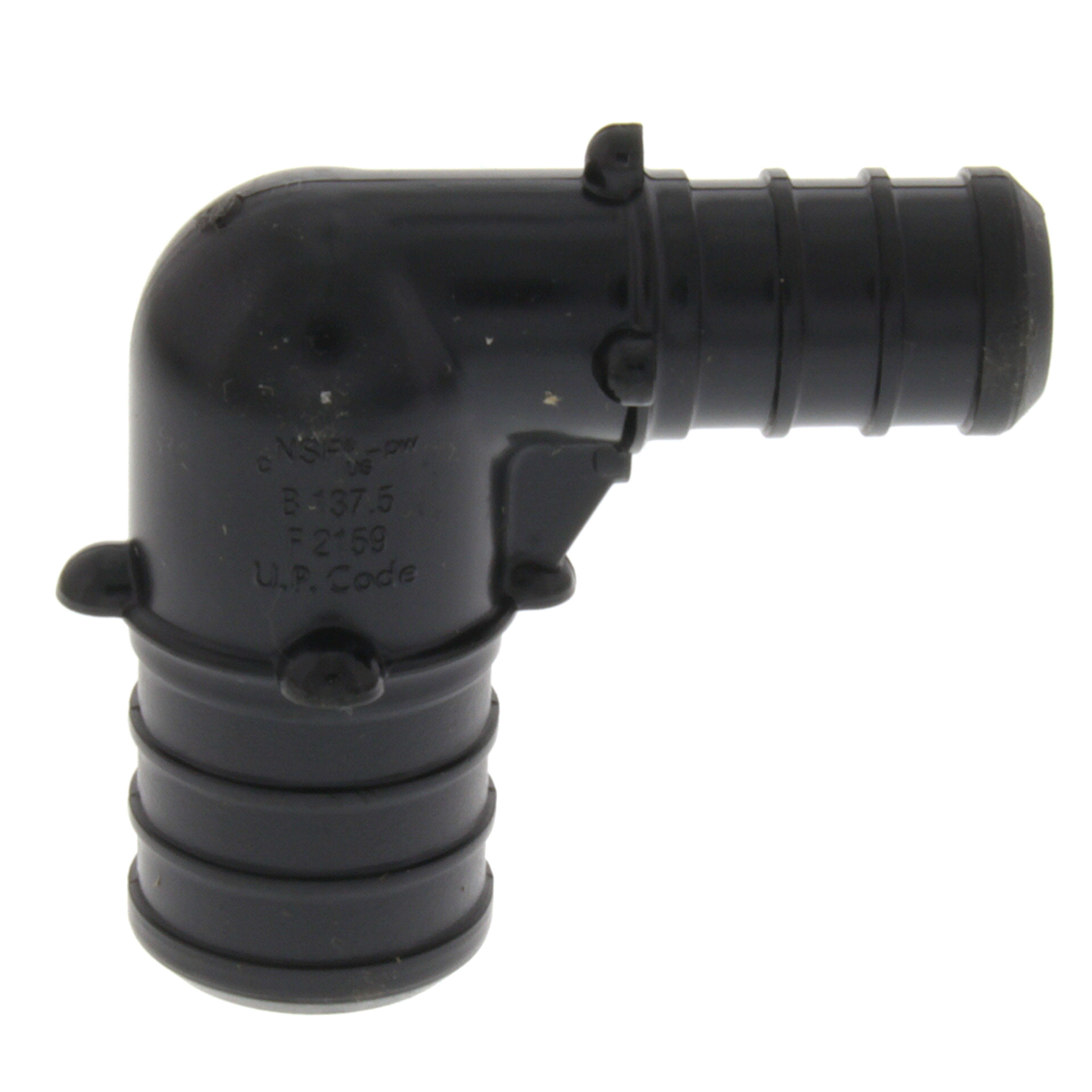

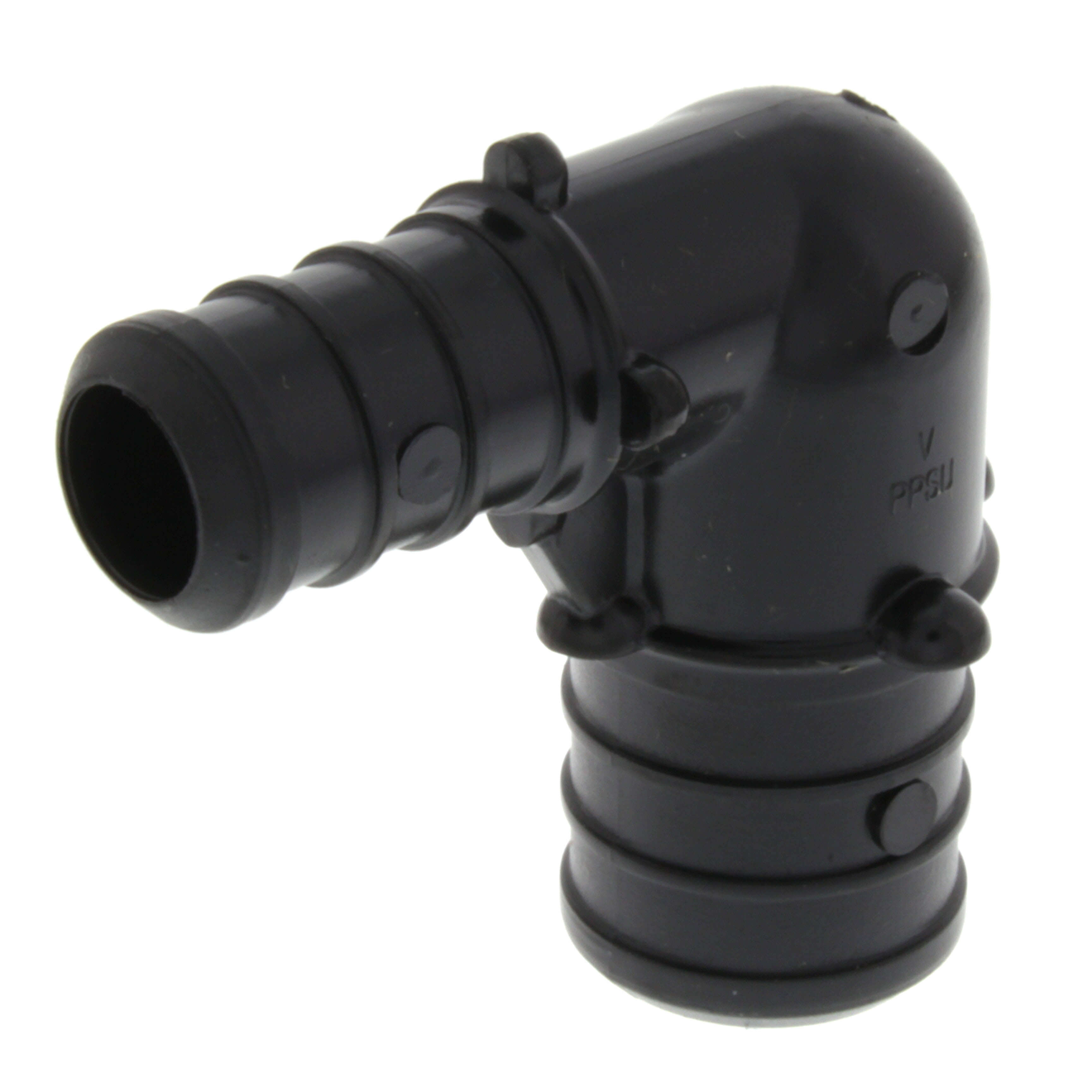

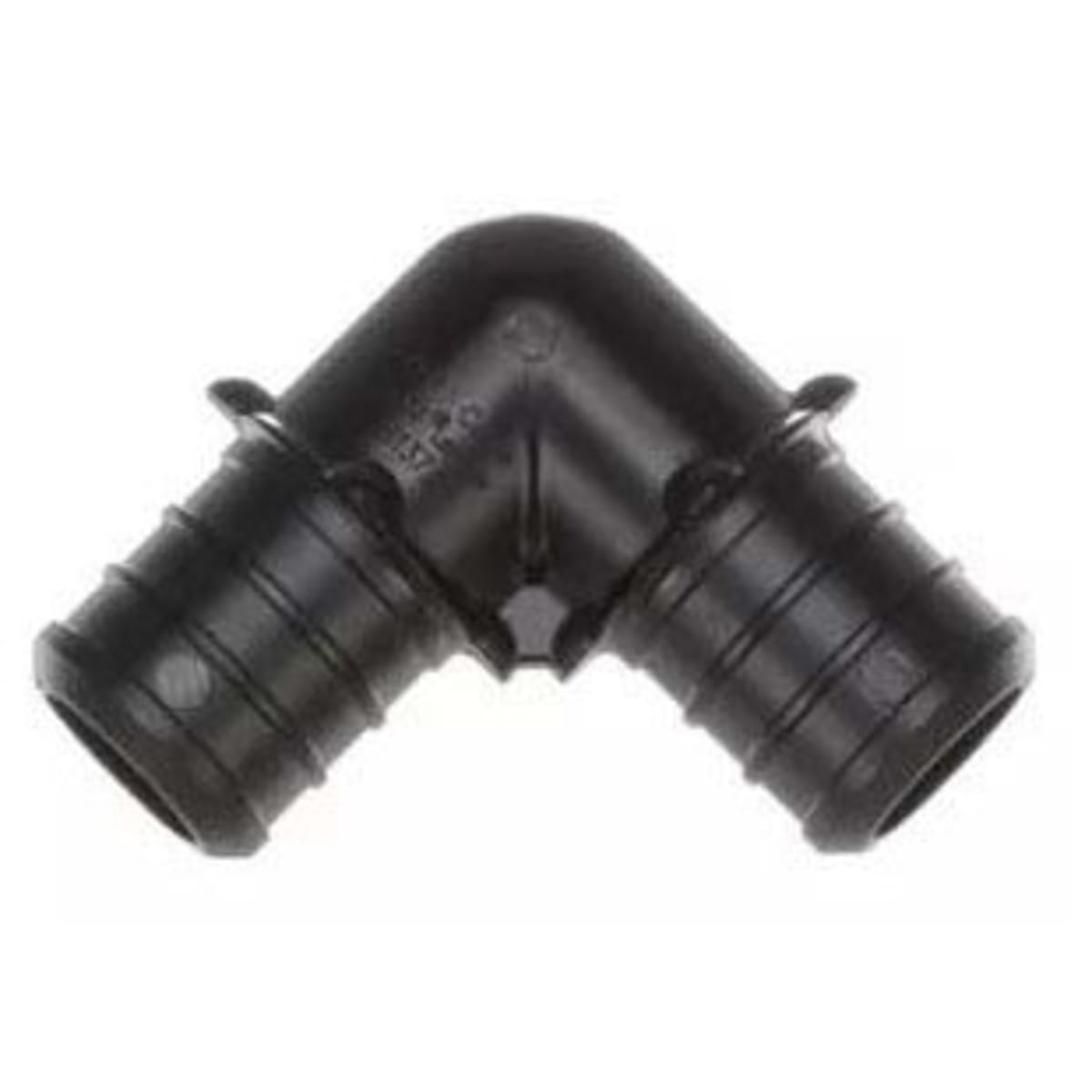

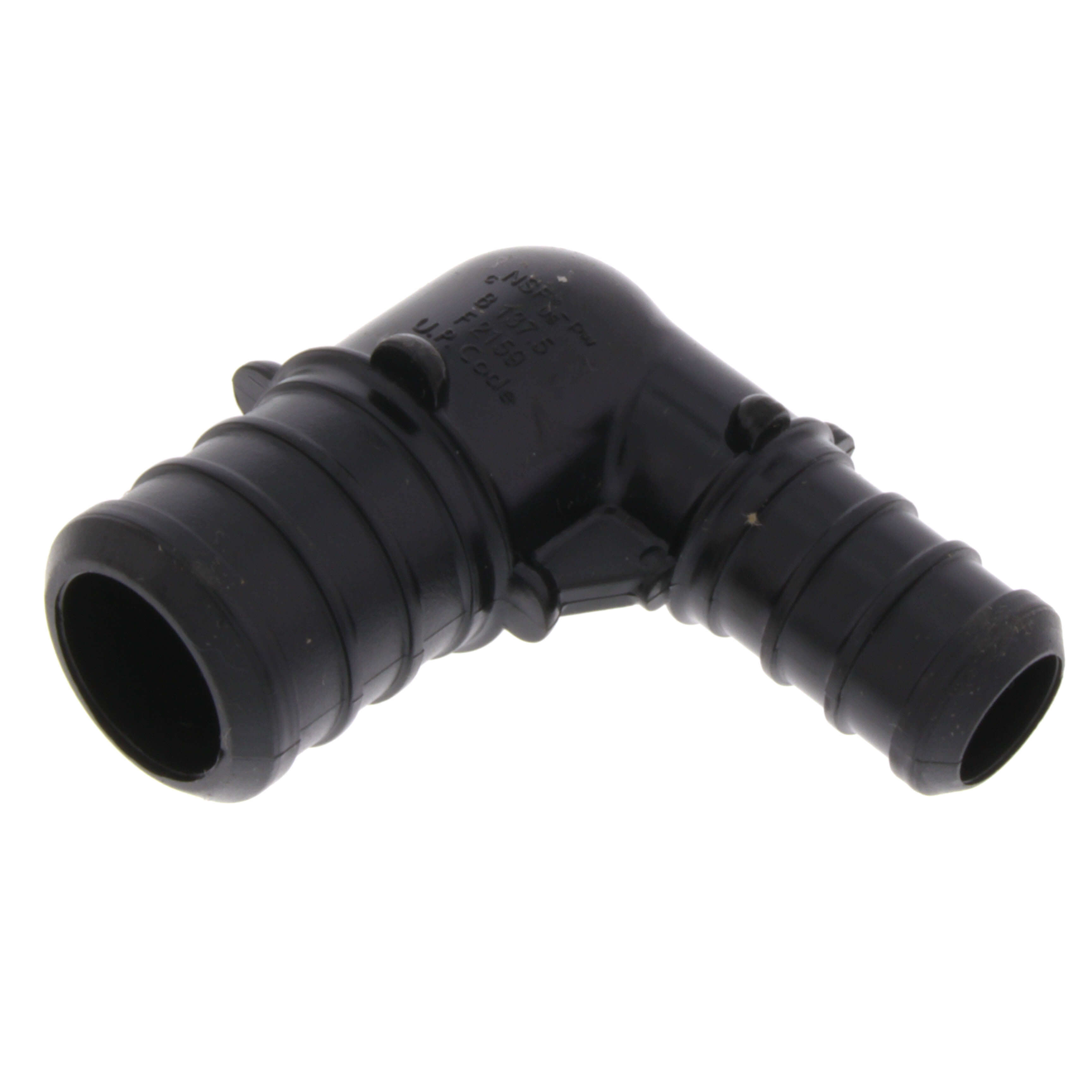

The VIEGA 43242 is a 3/4 X 1/2 Polyalloy 90-degree elbow. This Viega PureFlow® Crimp fitting is designed for connections with Viega PureFlow® PEX tubing. It is assembled with a full-circle crimp tool. It is suitable for hot water applications and exhibits resistance to corrosion.
- Manufactured from a performance grade polymer Acudel® or Radel-R®
- Exhibits excellent resistance to the corrosive effects of water
- Corrosion and impact resistant
Product Highlights
The VIEGA 43242 elbow is ideal for making 90-degree PEX Crimp connections in plumbing and heating systems.
Product Information
Standard Information
-
Brand: VIEGA
-
Manufacturer Part Number: 43242
-
Country of Origin: Domestic
Technical Specifications
-
End Style: PEX Crimp
-
Fitting/Connector Type: 90 deg Elbow
-
Material: Poly-Alloy
-
Nominal Size: 3/4 x 1/2 in
-
Pressure Rating: 100 psi
-
Series: Model V5216
-
Temperature Rating: 180 deg F
-
Fitting Type 1: pex poly crimp
-
Fitting Type 2: 90
-
Fitting Type 3: 90 elbow
-
Size: 3/4" x 1/2"
-
Secondary Category: fitting
-
Degree/Type: 90
-
Type: elbow
-
Size 1: 3/4" pex
-
Size 2: 1/2" pex
-
Category: poly pex
-
PEX Size [Features]: 3/4", 1/2"
-
Application [Features]: Heating, Plumbing
-
Max Temp (F) [Features]: 200 F
-
Standards Met [Features]: NSF, ASTM F877, ASTM F1807
-
Max Pressure (PSI) [Features]: 200
-
Tubing Compatibility [Features]: PEX
-
Fitting System Compatibility [Features]: Crimp, Clamp
-
Bend Angle: 90|deg
-
Application: Potable Water System
-
Selling Size: 3/4 x 1/2|in
-
Catalog Number: 43242
-
Connection Type: PEX Crimp
-
Specifications Met: ANSI/NSF 61 Annex G, cNSFus pw-G, CSA B137.5, UPC, ASTM F876, ASTM F877, ASTM F1807, ASTM F2159, ICC ES PMG-1038
-
Maximum Pressure Rating: 80|PSI
-
Maximum Temperature Rating: +200|deg F
-
Connection_Type: Crimp-Crimp
-
Brand: Viega
-
Manufacturer Part Number: 43242
-
Sub-Brand: PureFlow
