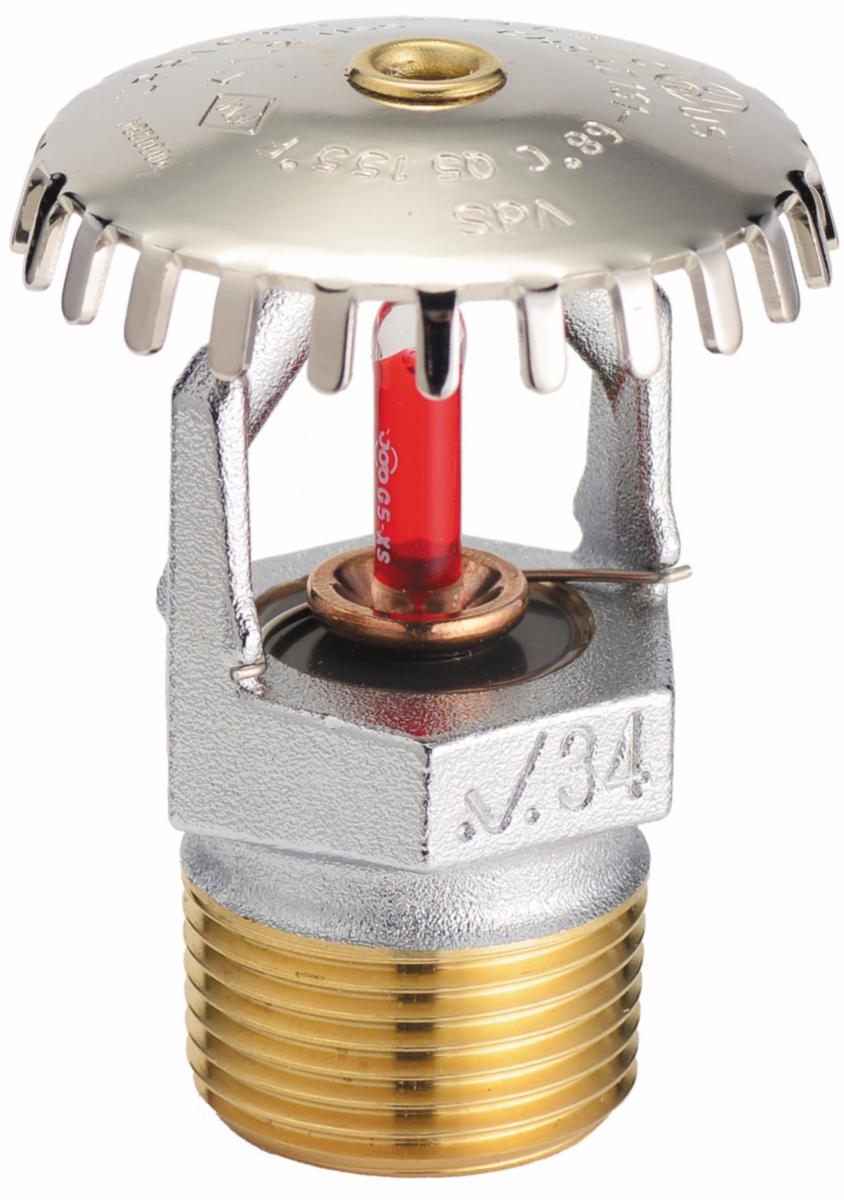

VICTAULIC S342AES610 Sprinkler Heads Model V3403 SR FireLock - Up

Product Description

The VICTAULIC S342AES610 sprinkler head, model V3403, is designed for high flow applications. It has a capacity that is double that of standard half-inch sprinklers. The installation process is straightforward and can be done using a specialized wrench, making setup efficient. This model features a release temperature of seventy-nine degrees Celsius.

• High flow capacity compared to standard models
• Easy installation with a special wrench
• Available in various release temperatures

Product Highlights

This sprinkler head is suitable for various fire safety applications and ensures effective performance under high flow conditions.

Product Information

Standard Information

• Model: V3403
• Response: Standard

Technical Specifications

• K-factor: 160
• Color: Brass
• External thread: 3/4 inches
• Release temperature: 79 degrees Celsius
• Length: 45 mm
• Sprinkler type: SSU
• Connection: External thread, conical (NPT)
• Material: Brass
• FM quality mark: Yes
• UL quality mark: Yes
