Venstar ACC-DSEN Duct Sensor 230V (20 ft)

VENSTAR
Brand: VENSTAR
SKU: ACC-DSEN
Availability: In Stock

Ships same day if ordered by 12 pm
$29.13
$29.13
HAVE A QUESTION?

Our team is ready to help!

215-326-9845
  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Description

Product Description

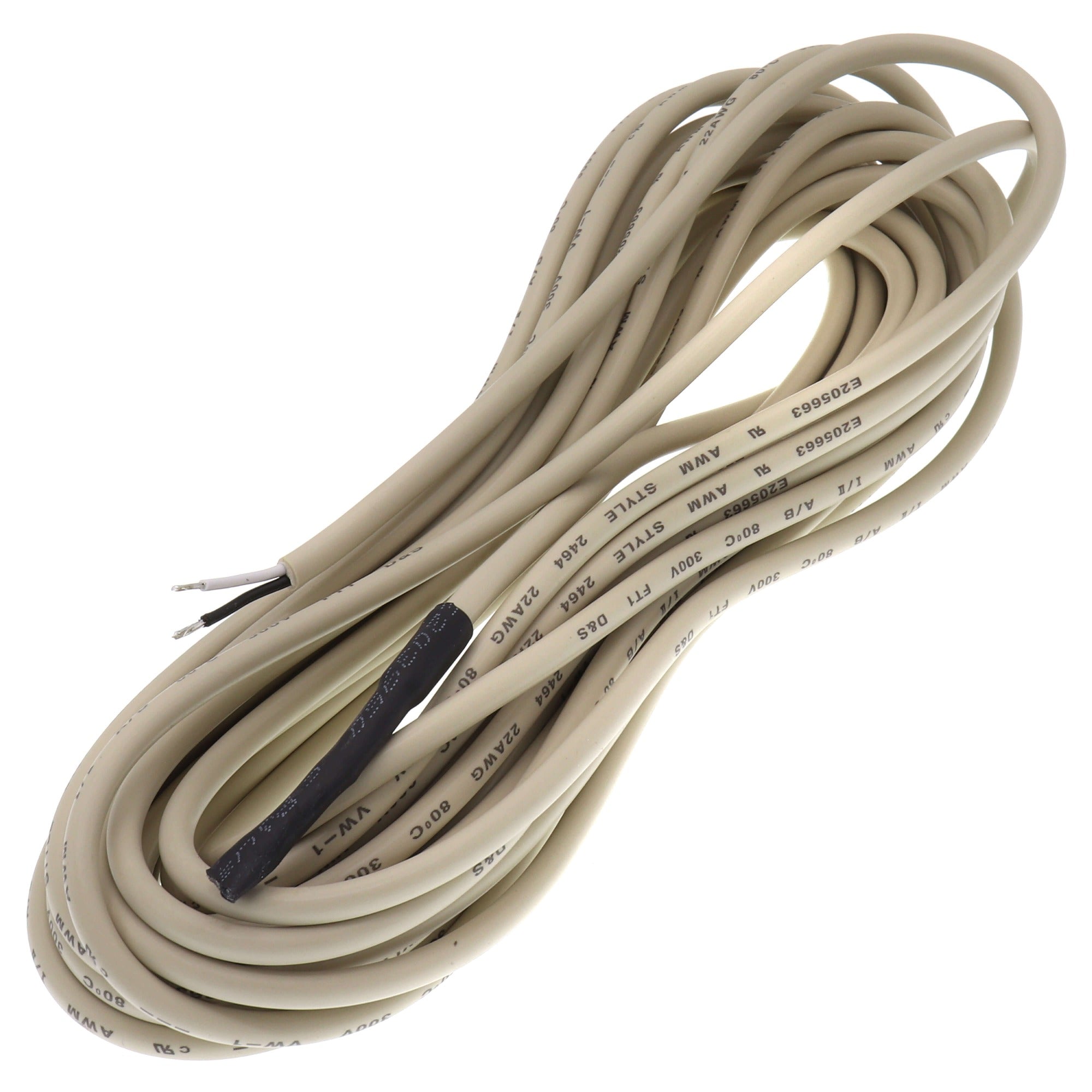

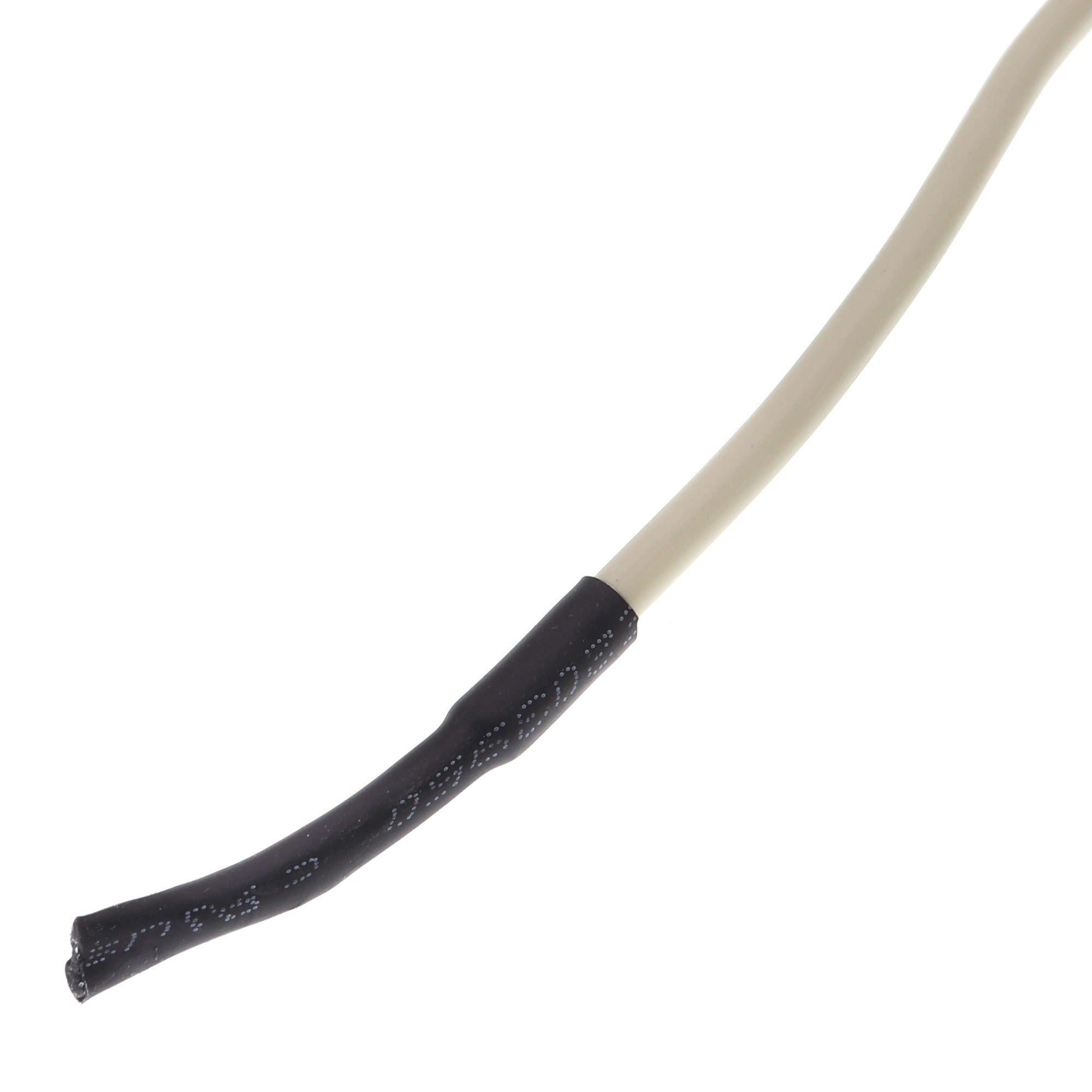

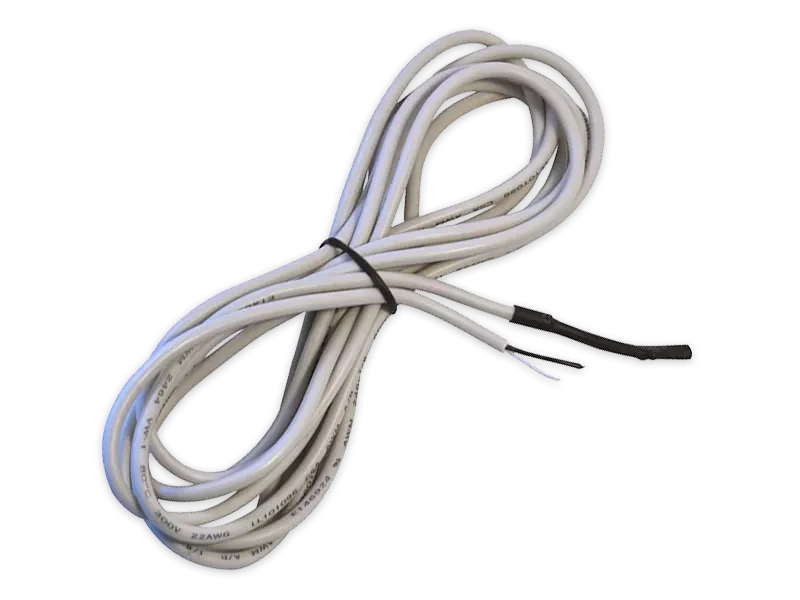

Venstar ACC-DSEN is a duct-mounted temperature sensor designed for Venstar Color Touch thermostats and HVAC control systems. The sensor measures duct air temperature using a 10k thermistor and provides remote sensing for monitoring or control. It includes 20 feet of plenum-rated cable, a grommet and wire nuts for duct installation, and operates across a wide temperature range for indoor or outdoor duct applications.

  • 10k thermistor duct temperature sensor with operating range -40 to 131 Deg F
  • Includes 20 ft plenum-rated cable, small grommet, and two wire nuts; cable type: 2 x 18-22 AWG
  • Designed for duct mount installation; maximum sensor-to-thermostat distance up to 200 ft; compatible with multiple Venstar ColorTouch and Voyager thermostat models

Product Highlights

Duct-mounted 10k thermistor sensor with 20 ft plenum-rated lead for remote temperature monitoring or control; -40 to 131 Deg F range.

Product Information

Standard Information

  • Brand: VENSTAR
  • Manufacturer Part Number: ACC-DSEN
  • Country of Origin: United States
Technical Specifications
Brand
Venstar
MPN
ACC-DSEN
Manufacturer
Venstar
Model
ACC-DSEN
Product Type
Duct temperature sensor
Sensor Type
10k thermistor
Operating Temperature
-40 to 131 Deg F
Cable Length
20 Feet (plenum-rated)
Cable Type
2 conductors, 18 to 22 AWG thermostat wire
Grommet Hole Size
1/4 Inch
Maximum Sensor Distance
200 Foot
Mounting Type
Duct mount
Application
Indoor / Outdoor (duct)
Compatibility
Compatible with Venstar ColorTouch and Voyager thermostats (including T5800, T5900, T6800, T6900, T7800, T7850, T7900, T8800, T8850, T8900, T3700, T3800, T3900, T4700, T4800, T4900, T4900SCH; IAQ models T3950-IAQ, T4950-IAQ, T4975-IAQ, T4950SCH-IAQ)
Cable Included
Yes (sensor and cable)
Package Dimensions
6.46 x 4.8 x 1.42 inches
Country of Origin
United States
Connectivity
Wired
Control Compatibility
Touch control compatible (Color Touch thermostats)
Accessories Compatible
ACC-TSEN, ACC-TSENWIFIPRO
User Guide
https://s3.amazonaws.com/s3.supplyhouse.com/product_files/Venstar-ACC-DSEN-User-Guide.pdf
Submittal Sheet
https://s3.amazonaws.com/s3.supplyhouse.com/product_files/Venstar-ACC-DSEN-Submittal.pdf
