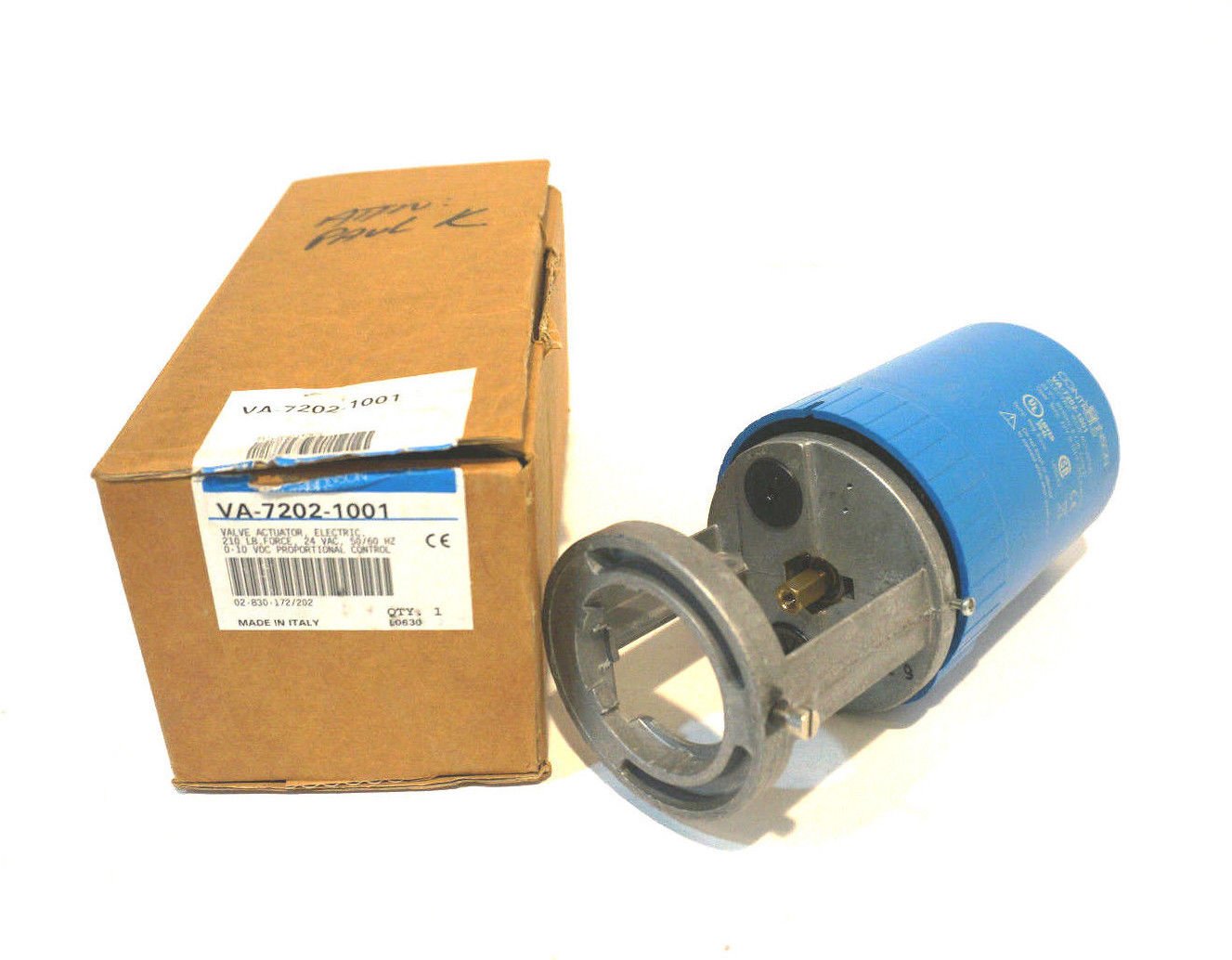

Johnson Controls VA-7202-1001 VA-720x Series Electric Valve Actuator 0 to 10 VDC 0 to 20 mA

Product Description

The Johnson Controls VA-7202-1001 VA-720x Series Electric Valve Actuator offers precise control for HVAC systems. This electric actuator supports valve strokes up to three-fourth inches and ensures reliable operation without a spring return. The VA-720x series is well-suited for various HVAC applications with a 180 lb minimum seating force.

• Provides incremental or proportional control
• 180 lb force output, compact design
• Field mountable to VBC and VG7000 Series valves

Product Highlights

The VA-720x Series Electric Actuator features a magnetic clutch that maintains constant force output, ensuring valve close-off and motor protection during stall conditions. The robust construction guarantees long cycle life, and the unique yoke design simplifies field mounting, reducing installation time. Direct and reverse action selection facilitate ease of setup and installation.

Product Information

Standard Information

• Brand: Johnson Controls
• MPN: VA-7202-1001

Technical Specifications

• Control: Incremental or proportional
• Control Signal: Three-wire 24 VAC or proportional DC (up to 10 V)
• Seating Force: 180 lb (800 N)
• Stroke: Up to three-fourth inches
• Position Feedback: 2,000 ohm potentiometer
