Belimo B220HT1320 HTCCV 2 Way 3/4 in NPT 13.2 Cv

Product Description

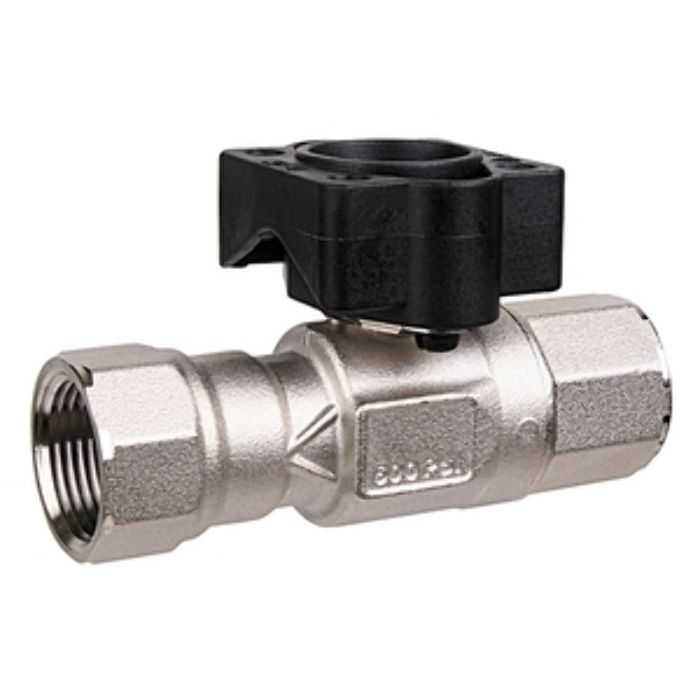

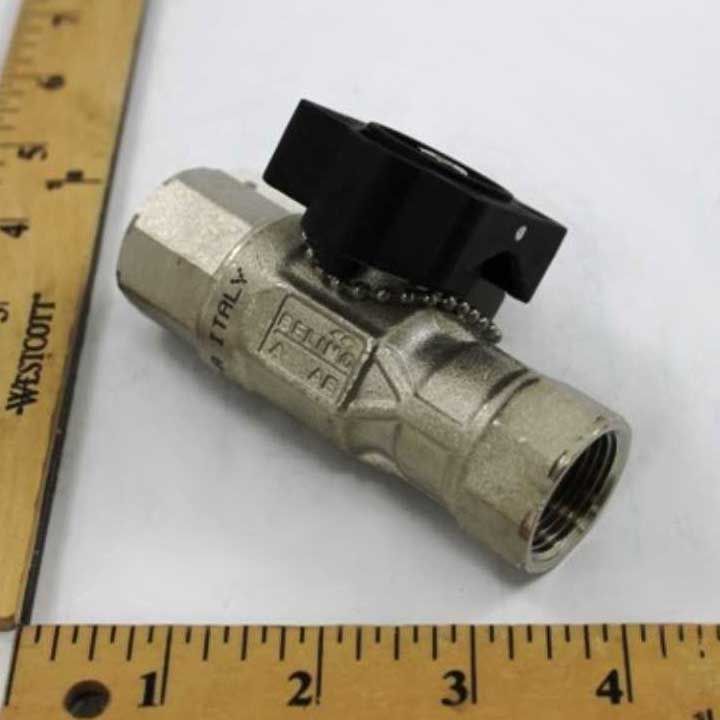

The Belimo B220HT1320 is a high temperature characterized control valve designed for reliable performance in HVAC systems. This valve features a three-fourths inch NPT connection and a flow coefficient of 13.2. It is specifically engineered for use in air handling units, making it ideal for managing heating and cooling coils efficiently.

• Designed for high temperature applications
• Features stainless steel ball stem for durability
• Offers zero leakage thanks to its ball valve design

Product Highlights

Optimized for use in hydronic systems with variable flow, the Belimo B220HT1320 operates effectively at water temperatures up to two hundred fifty degrees Fahrenheit. This valve is engineered for self-cleaning and low maintenance, ensuring a long service life.

Product Information

Standard Information

• Brand: Belimo
• MPN: B220HT1320

Technical Specifications

• Flow Characteristic: A-Port Equal Percentage
• Close-Off Pressure: 200 psi
• Service: High Temperature Hot Water/Low Pressure Steam, Up to 60% Glycol
• Operating Conditions: 60 F To 266 F (16 C To 130 C)
• Trim: Stainless steel
• Valve Size: 0.75 [20]
• End Fitting: Internal thread
• Pressure Independent: No
