Value Collection ZMSCVB75117 Viton O-ring Dash 117 50-pack

Product Description

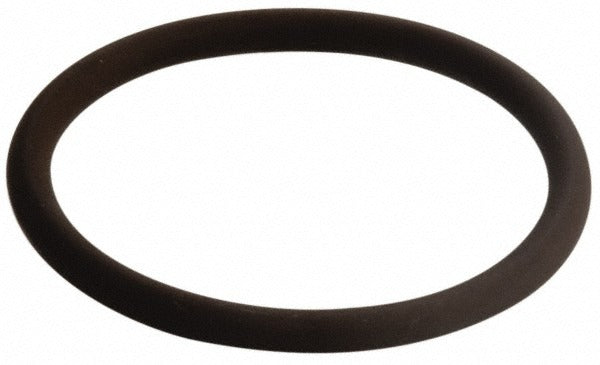

The VALUE COLLECTION ZMSCVB75117 is a Dash 117 Viton O-ring supplied in a package of 50. Made from fluoroelastomer, this round cross-section seal measures 0.799 inches inside diameter, 1.000 inch outside diameter, and 0.094 inches thick. It carries a Shore A hardness of 75 and is rated for continuous service from -15 degrees F to 400 degrees F. Fluoroelastomer construction gives it low compression set and good resistance to high temperatures, petroleum products, and a wide spectrum of chemicals. It is also rated suitable for vacuum service and exhibits low gas permeability. Plumbers, HVAC technicians, and industrial maintenance trades use this seal type in a wide range of fluid and gas handling assemblies.

This O-ring is suited for static and dynamic sealing applications involving petroleum-based fluids, hydraulic oils, and elevated-temperature service environments. The fluoroelastomer material makes it appropriate where standard nitrile or EPDM compounds would degrade. Typical install scenarios include pump housings, valve stems, fittings, and manifold face seals in residential and light commercial mechanical systems. Package quantity of 50 supports both single-repair and bulk stock needs. This item is not FDA approved and is not intended for food-contact or potable-water applications.

Key Features

• Fluoroelastomer (Viton-type) material with good resistance to petroleum products and chemical exposure
• Rated -15 degrees F to 400 degrees F continuous operating range
• Shore A hardness of 75 for a hard, low-compression-set seal
• Suitable for vacuum service and demonstrates low gas permeability
• Round cross-section, Dash 117 standard sizing
• Sold in a package of 50 units

Compatibility

Designed as a standard Dash 117 O-ring replacement compatible with grooves and bores dimensioned for 0.813 inches ID, 1.000 inch OD, and 0.094-inch cross-section seals where fluoroelastomer material is specified. Compatible with petroleum product service environments.

Installation Notes

Installation is performed by licensed plumbers, HVAC technicians, or qualified industrial mechanics. De-energize the system, bleed all pressure, and drain or isolate the fluid circuit before removing the old seal. Inspect the groove for nicks, burrs, or surface damage that could compromise the new seal. Lubricate the O-ring with a compatible fluid or grease before seating to reduce the risk of damage during assembly. Do not roll or twist the O-ring into position.
