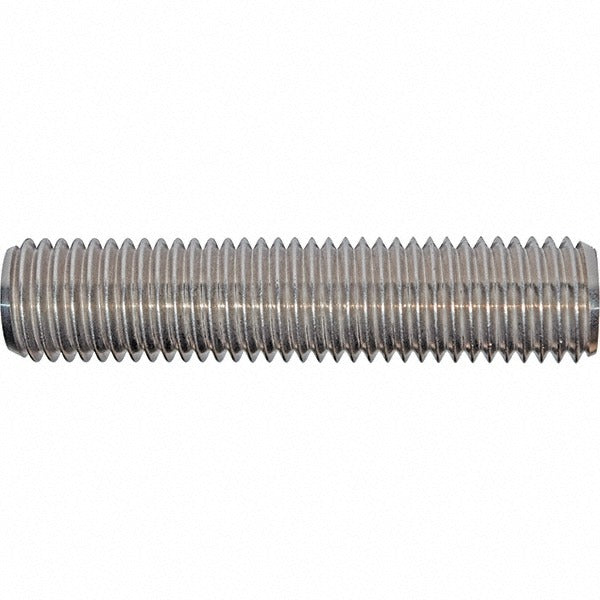

Value Collection AB7STFE0625C500 Fully Threaded Stud

Product Description

The VALUE COLLECTION AB7STFE0625C500 is a fully threaded stud machined from Grade B7 alloy steel with a 5/8-11 UNC thread form and an overall length of 5 inches. The fastener is uncoated and carries a Class 2A external thread fit, providing standard tolerance clearance suitable for general-purpose bolted assemblies. Right-hand thread direction is standard throughout the full length. Fully threaded studs are used where a nut must travel the entire shank, allowing flexible engagement depth on both ends. Maintenance mechanics, pipefitters, millwrights, and industrial technicians install this type of hardware in flanged connections, equipment mounting, and structural assemblies.

This stud is suited for industrial and commercial applications requiring a high-strength fastener with full thread engagement along the entire 5-inch body. Grade B7 material meets the mechanical property requirements common in pressure vessel, piping, and heavy equipment work. The uncoated plain finish is appropriate for applications where a separate coating or plating will be applied, or where bare steel is acceptable for the service environment. Sold individually, this stud fits standard 5/8-11 tapped holes and pairs with 5/8-11 hex nuts and washers.

Key Features

• Fully threaded 5/8-11 UNC right-hand thread along the entire 5-inch length
• Grade B7 alloy steel construction for elevated strength and hardness
• Class 2A thread fit for standard tolerance bolted joint assemblies
• Uncoated finish compatible with field-applied coatings or bare steel service
• No flat ground on shank — pure cylindrical threaded body
• UNSPSC Code 31161618 for procurement and catalog classification

Compatibility

Designed as a standard replacement or new-installation fully threaded stud for any assembly requiring a 5/8-11 UNC fastener with a 5-inch overall length and Grade B7 alloy steel material properties.

Installation Notes

Installation is performed by qualified mechanics or pipefitters using the appropriate 5/8-11 nut and a calibrated torque wrench. De-energize, depressurize, or lock out any system before removing or installing fasteners in live assemblies. Thread the stud into the tapped hole by hand first to confirm engagement and avoid cross-threading. Follow applicable ASME, ANSI, or plant-specific torque and preload specifications for the joint being assembled.
