Value Collection 720-1259 Square End Mill 1 in 2 Flute Hss

Product Description

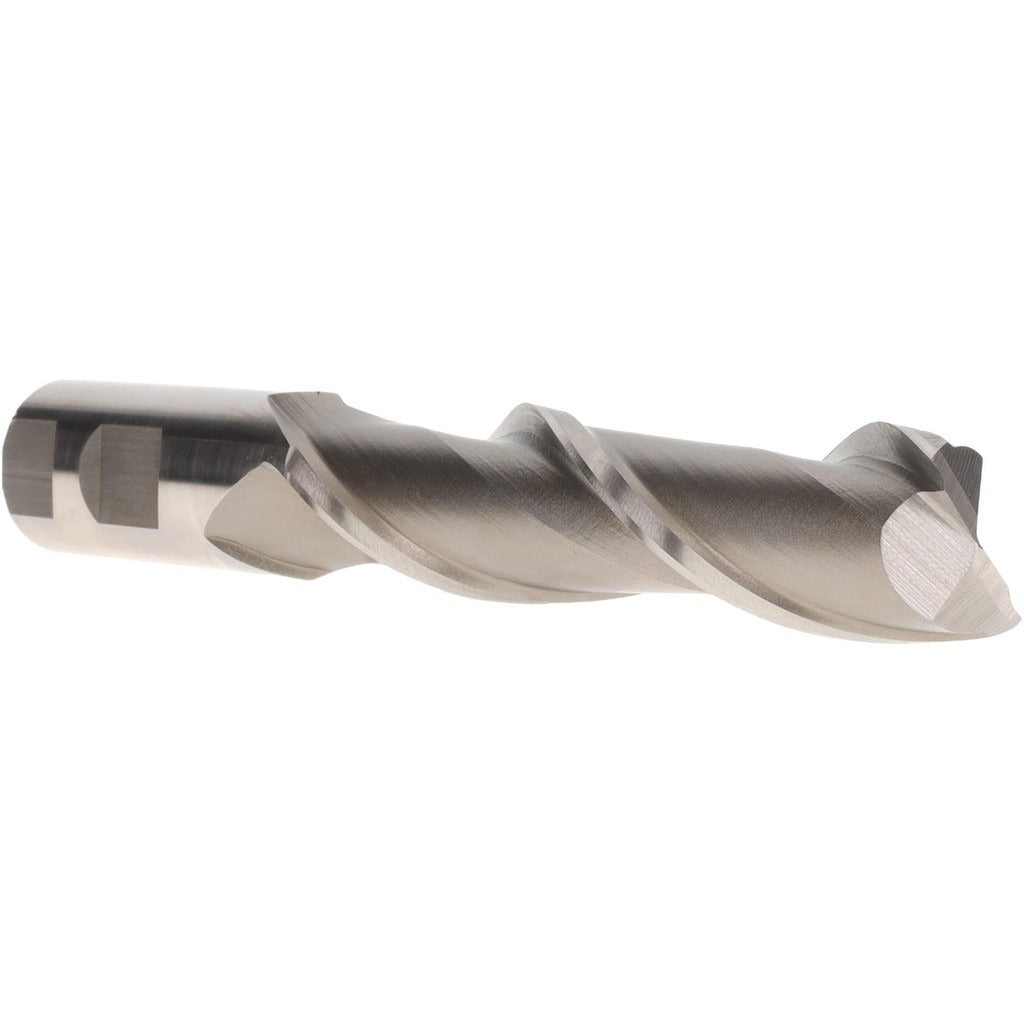

The VALUE COLLECTION 720-1259 is a single-end, square-profile end mill designed for material removal in milling operations across a range of ferrous and non-ferrous workpiece materials. Ground from M2 high speed steel and left bright/uncoated, it measures 1 inch in cutting diameter with a 4-inch length of cut and a 6.5-inch overall length. The 30-degree helix angle and 2-flute geometry support efficient chip evacuation and are well suited to slotting, peripheral milling, and profiling passes. This tool is sold individually and is appropriate for manual mills and CNC machining centers.

This end mill is intended for use on steel, stainless steel, cast iron, and aluminum and non-ferrous materials. The right-hand cut and right-hand spiral flute configuration is standard for conventional milling setups. The regular-length body and 1-inch shank diameter make it compatible with standard R8, CAT, BT, and similar toolholders sized for a 1-inch bore. Center-cutting capability allows plunge entry as well as lateral passes without a pre-drilled pilot hole.

Key Features

• M2 high speed steel construction for general-purpose milling durability
• Bright/uncoated finish — suitable for aluminum and non-ferrous applications where coatings may cause material adhesion
• 30-degree helix angle promotes smooth cutting action and chip flow
• Center-cutting design permits direct plunge entry into workpiece material
• 2-flute configuration provides adequate chip clearance for slotting cuts
• Single-end design with right-hand cut and right-hand flute spiral

Compatibility

Designed for use on steel, stainless steel, cast iron, and aluminum and non-ferrous workpiece materials. Compatible with toolholders accepting a 1-inch shank diameter.

Installation Notes

Installation should be performed by a qualified machinist or toolroom technician. Ensure the machine spindle is fully stopped and locked out before inserting or removing the tool from the holder. Verify that the toolholder bore is clean and free of chips or debris before seating the shank, and confirm that the tool is secured to the manufacturer-recommended clamping torque for the holder type in use. Do not exceed the recommended depth of cut or feed rate for the workpiece material and machine rigidity.
