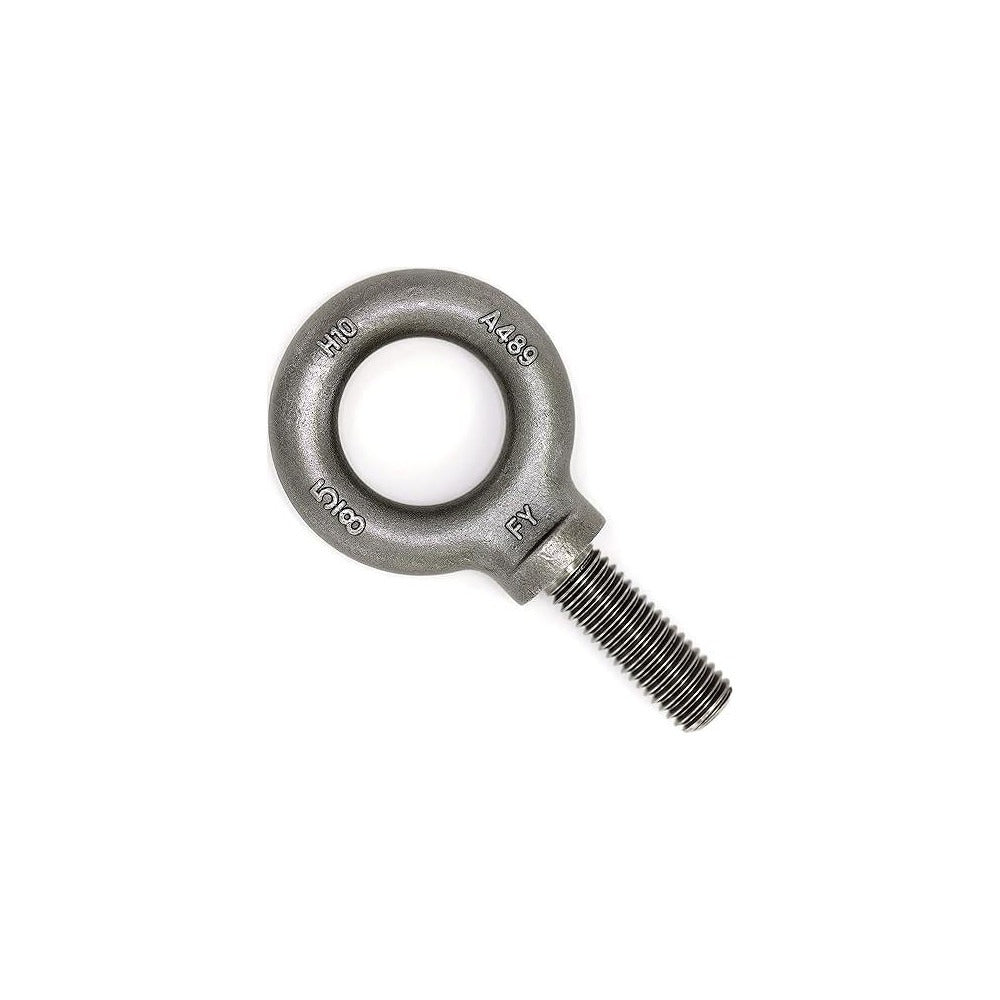

Value Collection 38626 Fixed Shoulder Eye Bolt 4000 Lb

Product Description

The VALUE COLLECTION 38626 is a fixed lifting eye bolt with shoulder, designed for overhead lifting and rigging applications in industrial, construction, and maintenance environments. Built from Grade 1030 steel, this eye bolt features a 5/8-11 thread size and a fully threaded shank measuring 1-3/4 inches in length. The shoulder design provides a stable base that distributes load forces against a mounting surface, making it suitable for straight vertical lifts. Rated at 4,000 lb lifting capacity, this bolt is a standard choice for riggers, millwrights, and maintenance technicians working with hoists, cranes, and lifting slings.

This eye bolt is suited for fixed-point lifting setups in residential, commercial, and industrial settings where a shouldered, non-swivel bolt is appropriate. The 5/8-11 thread allows installation into standard tapped holes or with a compatible nut on through-bolted applications. It is commonly used in equipment rigging, machinery installation, and structural lifting scenarios where vertical load alignment is maintained. Sold in a package quantity of 5, making it practical for job-site stock or multi-point lift configurations.

Key Features

• Fixed eye bolt with shoulder base for stable vertical load distribution
• 4,000 lb rated lifting capacity
• 5/8-11 thread size, fully threaded shank
• Shank length of 1-3/4 inches and thread length of 1-3/4 inches
• Eye inside diameter of 1-3/8 inches accommodates standard shackles and hooks
• Grade 1030 steel construction for strength in demanding lift applications

Compatibility

Designed for use in standard 5/8-11 tapped holes or through-bolt configurations where a fixed shoulder eye bolt is specified for vertical lifting.

Installation Notes

Installation is performed by qualified riggers or maintenance technicians following applicable ASME B30.26 or OSHA rigging standards. Ensure the receiving thread or nut is clean, undamaged, and fully engaged before applying any load. The shoulder must seat flush and fully against the mounting surface for rated capacity to apply. Never use a fixed eye bolt for angled or side-pull loads.
