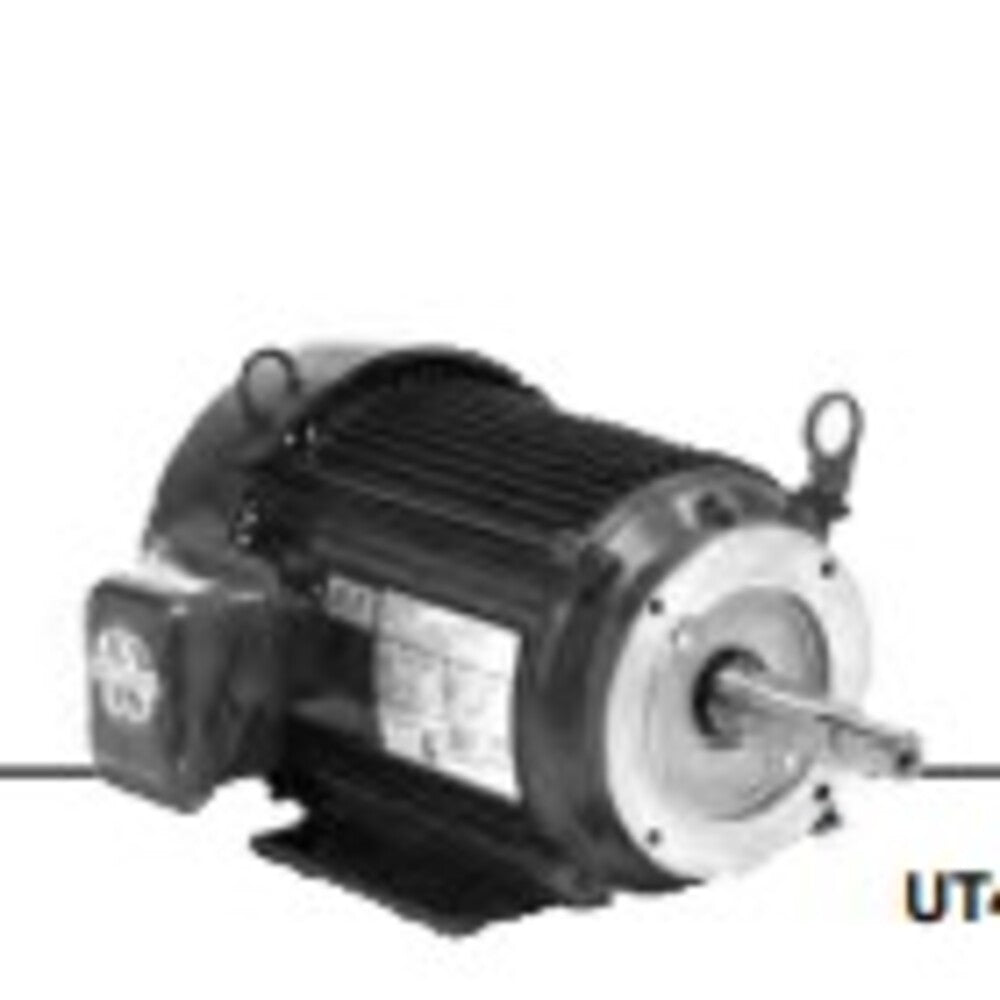

US-Nidec UJ32P2GM Close Coupled Pump Motor 1 1/2 HP

Product Description

The US-Nidec UJ32P2GM is a close coupled pump motor designed for robust operational performance in various applications. This three-phase motor operates at one and a half horsepower and features a TEFC enclosure for added durability. The motor's C-Face and footed mounting design allows for easy installation, especially in tight spaces.

• Three-phase operation for reliable performance
• Durable rolled steel construction for longevity
• Average efficiency of eighty-six point five percent

Product Highlights

This motor is suited for various industrial and commercial applications, offering efficient power and reliable operation.

Product Information

Standard Information

• Electrical Type: Three Phase
• Voltage: 575
• Rotation: REV

Technical Specifications

• Frame: 145JM
• Enclosure: TEFC
• Bearings Type: Ball / Ball
• Bearings Size: 6203-2Z-J/C3 / 6206-2Z-J/C3
• Amperage: 1.7
• Service Factor: 1.25
• Efficiency: 86.50%
• Mounting Type: C-Face / Footed
