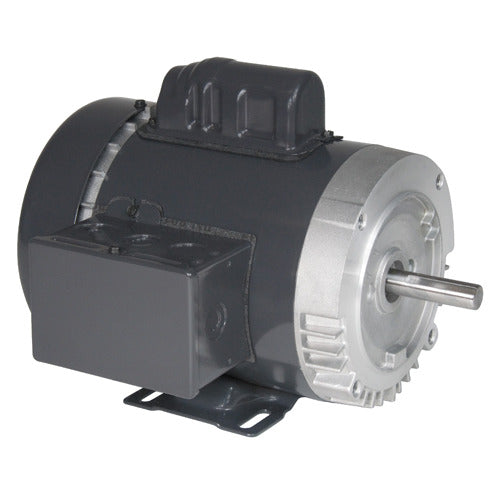

US-Nidec 6212 General Purpose Motor 1/2 HP

Product Description

The US-Nidec 6212 is a general-purpose motor designed for various applications. This motor has a horsepower rating of half and operates efficiently with multiple voltage options ranging from one hundred to two hundred forty volts. Its robust construction with rolled steel ensures durability, while the totally enclosed fan-cooled (TEFC) design protects it from external elements.

• Single-phase operation with a capacitor start type
• Self-cooling mechanism ensures reliable temperature control
• Equipped with auto overload protection for safety

Product Highlights

This motor is ideal for HVAC systems, fans, and various industrial applications.

Product Information

Standard Information

• Weight: 25.25 lbs
• Frame Size: 56C

Technical Specifications

• Electrical Type: Capacitor Start
• Voltage: 100-120 & 200-240
• RPM: 1725
• Amperage: 6.3-5.6/3.1-2.8
• Bearings Type: Ball/ Ball
• Duty: Continuous
• Insulation Class: F
