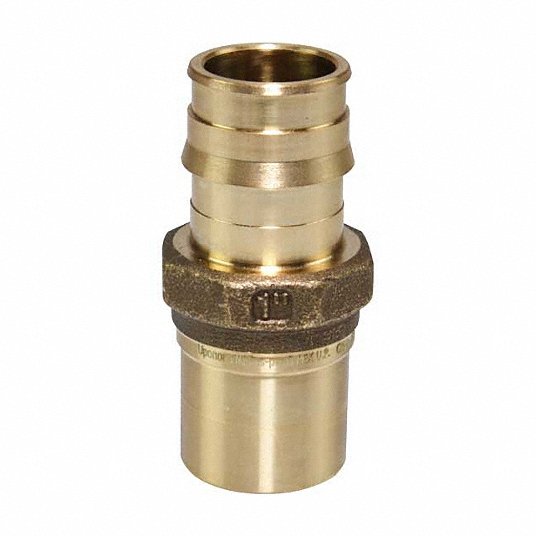

Uponor LFP4501010 ProPEX Adapter 1 inch x 1 inch

Product Description

The UPONOR LFP4501010 ProPEX adapter transitions copper fittings to Uponor PEX. This lead-free brass copper press fitting adapter is approved for use in hot and cold potable water, chilled water, and hydronic heating and cooling systems. It connects Uponor PEX to copper press piping systems.

• Connects Uponor PEX to copper press piping systems
• Made from high-quality, lead-free brass to meet potable-plumbing requirements
• Approved for use in hot and cold potable water, chilled water, and hydronic heating and cooling systems

Product Highlights

The Uponor ProPEX adapter ensures safer job sites and greater profitability with faster installations compared to copper sweat transitions.

Product Information

Standard Information

• Brand: UPONOR
• Manufacturer Part Number: LFP4501010
• Country of Origin: Import

Technical Specifications

• Material: Brass
• End Style: PEX x Copper
• Length: 2.87 in
• Mfg Standards/Approvals: ASTM F1960|ASTM F877|CSA B137.5|ASME B16.51|ICC-ES LC1002|IAPMO PS 117
• Nominal Size: 1 in
• Pressure Rating: 250 psi
• Temperature Rating: 200 deg F
• Type: Press
• Domestic/Import: Import
• Fitting / Connector Type: Adapter
• Series: ProPEX
• Manufacturer: Uponor
• Manufacturer #: LFP4501010
• Brand: UPONOR
• Mfr. Model: LFP4501010
• Combine - Fitting Shape Subhead: Straight
• Combine - Material and Grade: Brass; Copper
• Temperature Range: 33 °F to 140 °F
• PEX Connection Method: Expansion
• Compatible Tube Material: PEX
• Compatible Pipe Material: Copper
• Fitting Side A Connection Type: Barbed
• Fitting Side A Tube Inner Diameter: 1 in
• Fitting Side B Connection Type: Press-fit
• Fitting Side B Pipe Size: 1 in
• Overall Length: 2-27/32 in
• Barb Style: Standard
• Hex Size: 1-23/64 in
• For Media Type: Potable Water
• Standards: ASME B16.51; ASTM F1960; ASTM F877; CSA B137.5; IAPMO PS 117; ICC-ES LC1002; NSF-14; NSF-372; NSF-61
• Maximum Operating Pressure: 80 psi
• Fitting Size: 1 in ID x 1 in Pipe
• Part no.: LFP4501010
• A [frac]: 2 27/32 inch
• A [inch]: 2.851 inch
• B [frac]: 43/64 inch
• B [inch]: 0.67 inch
• C [frac]: 1 inch
• C [inch]: 1 inch
• D [frac]: 1 1/8 inch
• D [inch]: 1.125 inch
• E [frac]: 1 23/64 inch
• E [inch]: 1.358 inch
• Equivalent length through [ft]: 3.1 ft
• Weight per UOM [lbs/UOM]: 0.26 lbs/uom
• F [frac]: 9/16 inch
• F [inch]: 0.563 inch
• G [frac]: 1 3/16 inch
• G [inch]: 1.181 inch
• Cv: 21.4
• End Size 1 [inch|mm]: 1"
• End Size 2 [inch|mm]: 1"
• End Type 1: ProPEX
• End Type 2: Copper Press
• Material Gasket: EPDM
• Operating Pressure 1 [PSI]: 160 psi
• Operating Pressure 2 [PSI]: 100 psi
• Operating Pressure 3 [PSI]: 80 psi
• Operating Temperature 1 [°F]: 73 °F
• Operating Temperature 2 [°F]: 180 °F
• Operating Temperature 3 [°F]: 200 °F
• Prop 65 label required?: Yes
• Material group: LF Brass
• Application: For use in hot and cold potable water, chilled water, hydronic heating and cooling systems
