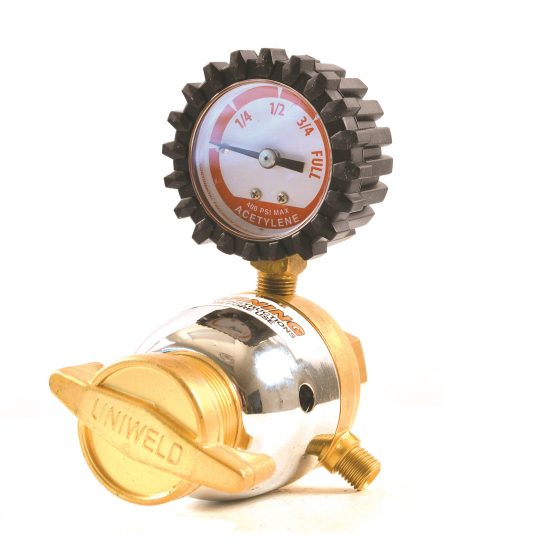

UNIWELD UNI-RMC100 Acetylene Regulator

Product Description

The UNIWELD UNI-RMC100 is a single-stage acetylene regulator designed to facilitate gas control for your applications. This model includes a CGA 200 inlet connection. It is built with a robust brass body construction that enhances durability. The product features a one and one-half inch single scale gauge that allows precise monitoring of pressure levels. The regulator utilizes a tri-layered reinforced neoprene diaphragm along with a mechanical stem type seat. To maintain the integrity and purity of the gas, a porous metal inlet filter is also included. The outlet connection is A (LH) three eighths inch twenty-four male thread, ensuring compatibility with various systems. It effectively delivers pressure within a range of two to fifteen PSIG.

• Durable brass body construction
• Equipped with one and one-half inch single scale gauge
• Includes porous metal inlet filter for gas purity

Product Highlights

Product Information

Standard Information

• CGA Inlet: Acetylene 200
• Outlet Connection: A (LH) 3/8′-24 (M)

Technical Specifications

• Delivery PSIG: 2-15
• Replacement Gauges: G15; 30 PSI (RL), G19; 400 PSI
• Gauge Size: 1-1/2
• Maximum Inlet Pressure: 400
• Stage: (1) Single
• Weight: 1.2
• Dimensions: Height 4.75, Length 4.5, Width 3.5
• Country of Origin: CHN
• UPC: 688456141029
