Product Description

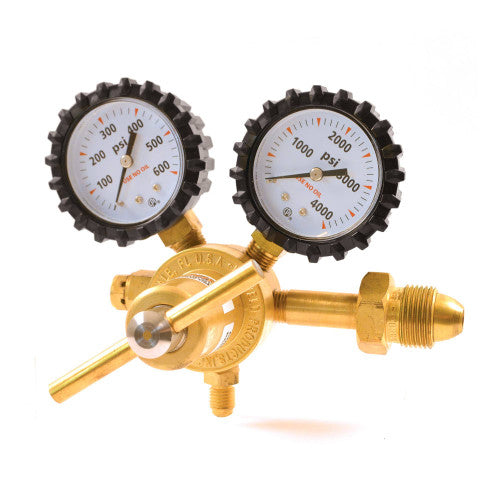

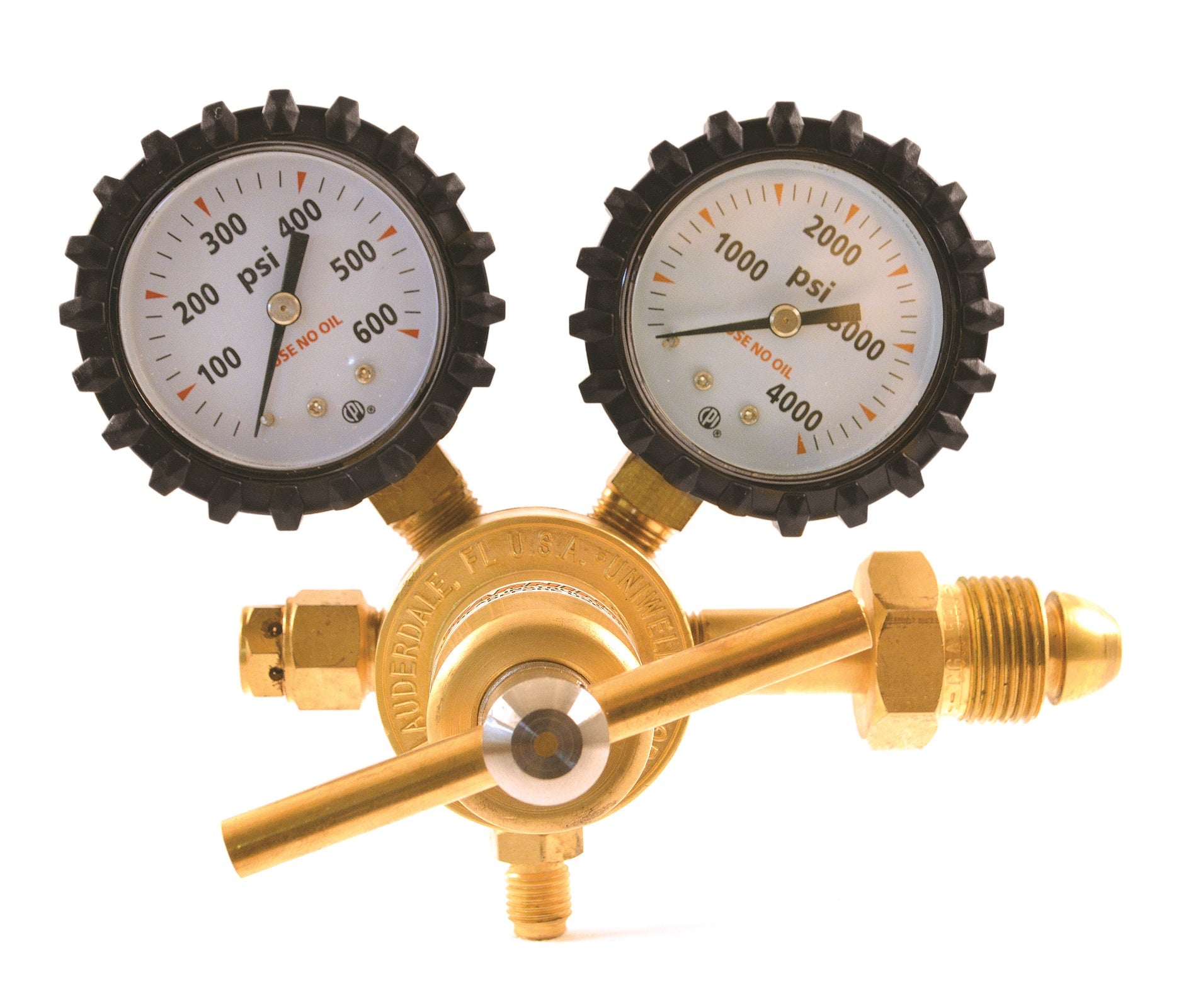

The Uniweld UNI-RHP400 is a nitrogen regulator designed for applications such as purging and pressure testing. This unit features a robust machined solid brass body and a piston-actuated seat. It is equipped with two-inch gauges protected by rubber boots, displaying up to six hundred and four thousand PSIG. The regulator uses a CGA580 inlet connection and provides a one-fourth male flare outlet connection. The large brass T-handle allows users to make precise pressure adjustments easily. Additionally, it includes a reseatable safety blowoff mechanism, a hardened steel threaded insert, and a stainless steel pressure adjusting screw and bushing. Filters are also integrated at the inlet and seat, ensuring clean operation and reliable delivery pressure within a range of zero to four hundred PSIG.
- Features a reseatable safety blowoff for controlled pressure release.
- Incorporates a T-handle that facilitates pressure adjustments.
- Includes two-inch gauges with rubber boots for effective pressure monitoring.
Product Highlights
This nitrogen regulator is ideal for HVAC professionals requiring reliable pressure management in various applications.
Product Information
Standard Information
-
Brand: Uniweld
-
Part Number: UNI-RHP400
Technical Specifications
-
Delivery Pressure: 0-400 PSIG
-
Inlet Connection: CGA580
-
Outlet Connection: 1/4 Male Flare
-
Gauges: Two gauges with rubber boots, 600/4000 PSIG
-
Body Material: Machined solid brass
-
Weight: 2.36 pounds
-
Dimensions: Height 5.25 inches, Length 5.5 inches, Width 4 inches
-
Maximum Inlet Pressure: 3000 PSIG
-
Stage: Single
-
UPC: 688456130009
