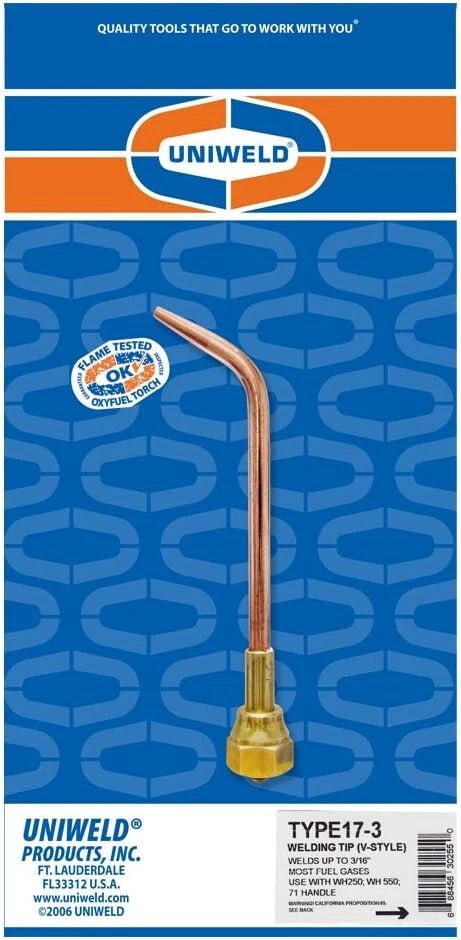

UNIWELD UNI-17-3 Welding Tip

Product Description

The UNIWELD UNI-17-3 welding tip is made for tasks like welding, heating, brazing, and soldering. It fits welding handles 71, WH250, and WH550. If using a WH350 welding handle, an F15 adaptor is required. This tip works with a weld metal thickness of 1/8 to 3/16 inches. It operates at 7 PSIG of oxygen and 6 PSIG of acetylene fuel gas, with an acetylene consumption of 8 to 18 SCFH. It is capable of brazing copper tubing of one inch to one half inch.

• Designed for various welding applications.
• Compatible with several welding handle models.
• Supports specific metal thickness for effective welding.

Product Highlights

UNIWELD UNI-17-3 is crafted for effective welding, heating, and brazing.

Product Information

Standard Information

• Brand: Uniweld
• MPN: UNI-17-3

Technical Specifications

• Weld Metal Thickness: 1/8-3/16 inches
• Oxygen PSIG: 7
• Acetylene PSIG: 6
• Acetylene Consumption: 8-18 SCFH
• Compatible Welding Handles: 71, WH250, WH550, WH350 (requires F15 adaptor)
• Part Number: TYPE17-3
• Weight: 16 oz
• Country of Manufacture: United States
